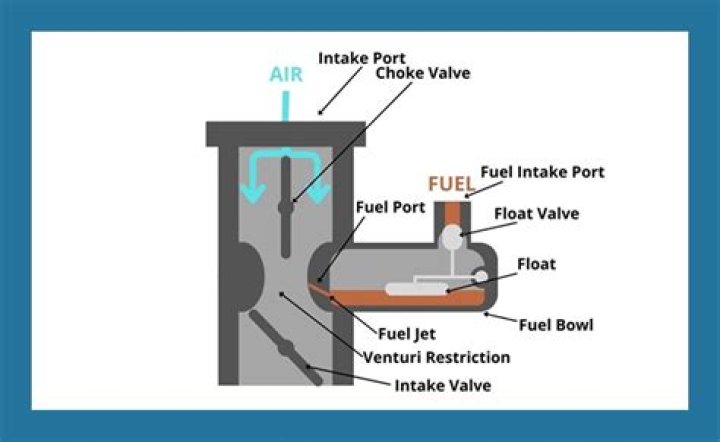

Constant velocity carburetors allow for better performance at various altitudes and offer smoother throttle response across all ranges of throttle. Instead, the throttle opens a butterfly style valve in the throat of the carburetor, and vacuum pressure will lift the slide as much as needed.
How does pilot screw work?
A pilot air screw will be made of brass, gold in color, and will have a blunt tip compared to a pilot fuel screw. The pilot air screw meters air, so turning it clockwise/in will richen the fuel/air mix, while counter-clockwise/out will lean the fuel/air mix.
How do you adjust the air fuel mixture on a CV carb?
Locate the idle mixture screw on the bottom outlet side of the carburetor, in a passageway next to the float bowl. Turning the idle mixture screw in, or clockwise, will lean the idle mixture and turning it out, or counterclockwise, will enrich it.
How does a carb mixture screw work?
An air fuel mixture screw is a special screw on an engine’s carburetor that controls how much air mixes with the fuel. Adjusting this screw changes how fast or slow an engine idles and how smoothly it runs.
What type of carburetor do I have?
The list number is stamped on your carburetor, either on the corner of the airhorn or choke tower or, if it doesn’t have an airhorn, on the mainbody. Remove the carburetor from your vehicle before looking for the list number to easily find the information you need.
What CV carbs?
A CV carb is one in which the effective throttle opening is. controlled by a vacuum-actuated piston, rather than by a slide or. butterfly controlled directly by the throttle cable. Usually. the throtle cable controls a butterfly upstream of the slide.
What does the pilot screw do on a Mikuni carburetor?
The pilot air screw and pilot jet. The air screw can be located either near the back side of the carburetor or near the front of the carburetor. If the screw is located near the back, it regulates how much air enters the circuit. If the screw is turned in, it reduces the amount of air and richens the mixture.
What are some common Mikuni carburetor models?
Mikuni VM12SC on Yamaha QT50 and PW50 This is a 12mm carburetor (12mm venturi diameter) with a 18mm clamp diameter. Mikuni H9-10 on Indian, R4-13 on Trac (Daelim) H9 is a 10mm carb with a 18mm clamp diameter. R4 is a 13mm carb with a 20mm clamp diameter. Mikuni VM10-24 on Angel (TYM) mopeds This carb is on Taiwan-made Angel and Speed Bird mopeds.
How does a CV carb work?
How CV carbs work. When the throttle is cranked on the slide carb, the slide is pulled up immediately by the throttle cable, expanding the variable venturi suddenly, and causing the lean stumble described above. When the CV butterfly is opened, the slide does not immediately jump up to a much more open position.
What is CV carb?
The key to the CV carb is the vacuum controlled slide. It responds to the velocity (and vacuum) produced by the air flowing through the throat of the carb. CV stands for CONSTANT VELOCITY, and that’s what the slide seeks to maintain.
