The coalescing filters separate the constituents in phases, trapping one substance and allowing the other to pass through to collection points. The fluid that passes through coalesces into larger, heavier particles which are drained away mechanically.
Can you filter natural gas?
Natural gas goes through multiple filtration processes at treatment facilities to remove hydrocarbons, water vapor, contaminants, and acid gas. Desiccant Dehydration is a process where coalescing filters remove unwanted contaminants, and the gas is dried using desiccants like a molecular sieve or silica gel.
What is the purpose of a coalescing filter?
Coalescing is a technique used in filter media for the separation of liquid aerosols and droplets from a gas, and coalescing filters are specifically designed to remove submicron oil, water, and other liquid droplets from airflows.
What is a coalescing element?
Swift Filters manufactures coalescing filter elements to separate liquid aerosols such as water and oil from air or gas streams. The elements have a hydrophilic core to condense liquid aerosols into droplets that are large enough to be drained away via gravity.
What is a fuel gas Coalescer?
What is a Fuel Gas Coalescer? It is a device that removes solid and liquid contaminants from gas fuel to provide clean and dry gas that meets the consumer requirements.
How is gas filtered?
Gas-phase filtration is the process of using specialized filter media and chemical substances to remove gaseous pollutants from the air. In most gas-phase filtration systems, a substance called a sorbent is used to literally absorb chemical substances and remove them from indoor air.
Will air purifier help with gas leak?
Air filters with activated charcoal will remove benzene (and other volatile organic compounds), and those with additives such as potassium permanganate will remove most mercaptans (the ‘smell’ of natural gas) and other odorous gases related to gas leaks, such as hydrogen sulfide.
What is the process of coalescence?
Coalescence is the process by which two or more droplets, bubbles or particles merge during contact to form a single daughter droplet, bubble or particle. It can take place in many processes, ranging from meteorology to astrophysics. In meteorology, its role is crucial in the formation of rain.
What does a coalescing air filter actually filter out of the air?
Gas phase separation using the coalescing filter gets rid of oil mist or moisture from airstreams that are contaminated. Separation of liquid moisture from a moisture laden stream of air.
What does it mean coalescing?
coalesce \koh-uh-LESS\ verb. 1 : to grow together. 2 a : to unite into a whole : fuse. b : to unite for a common end : join forces. 3 : to arise from the combination of distinct elements.
What are gas filters?
Dry gas filters, or even cartridge filters, are filters that are used to remove the solid particles present in a gas flow. They are used for the removal of solid particles that could damage the users downstream of the filtration system.

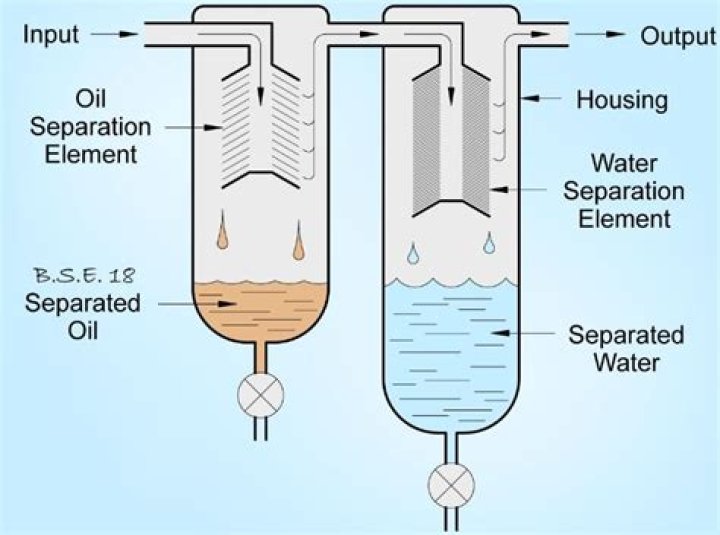

What does a coalescing filter do?
Basics of Coalescing Filtration. A coalescing filter is used to remove water and oil aerosols from compressed air. These contaminates are usually compressor lube oils, residual cutting oils and pipe dope from the pipe joints, condensed moisture, carbonized oils and solutions of dissimilar oils.
What is a dry gas filter?
Dry Gas filters are used to remove fine debris from a gas pipeline. Dry gas filters use disposable depth type cartridges to retain contaminant in the element structure. Cartridges are sleeve type with inner and outer support housings.
What is a filter separator?
The Horizontal Filter Separator is a sturdy, combination package designed to remove contaminants from liquid-free natural gas streams.
