A sequence detector is a sequential state machine that takes an input string of bits and generates an output 1 whenever the target sequence has been detected. In a Mealy machine, output depends on the present state and the external input (x).
WHAT ARE sequence detectors used for?
Binary sequences are inserted at the beginning (or end) of a data frame or subframe emanating from a digital data processor of a spacecraft. Sequence detectors are used in the decoding equipment on the ground to provide “flags” which indicate the beginning (or end) of a data block (e.g., a TV frame).
What is Moore FSM sequence detector?

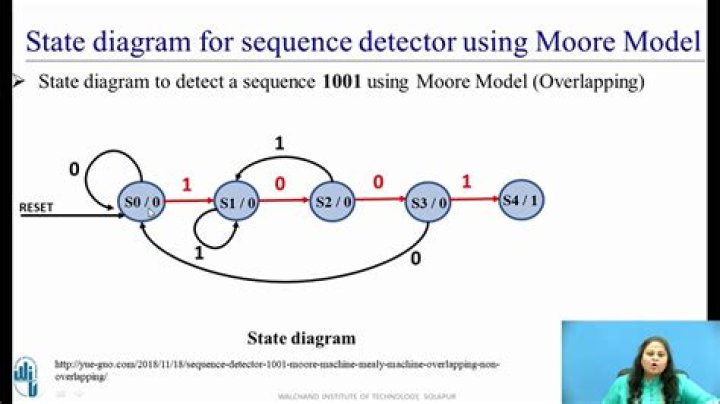

A sequence detector is a sequential state machine. In a Moore machine, output depends only on the present state and not dependent on the input (x). Hence in the diagram, the output is written with the states.
What are the two types of FSMs used in Verilog based digital system design?
FSMs are generally of two types. MEALY Machine: MEALY circuits are named after G. MOORE Machine: MOORE circuits are named after E. F. Moore, another leading personality in designing digital systems.
What is a binary sequence detector?
Binary sequence detectors are used to detect these sequences at the receiving end. This application note shows how to implement a design using Dialog’s GreenPAK based on a state machine. In this example, the pattern “101” gets detected from a binary stream.
What is sequence detector in Verilog?
A very common example of an FSM is that of a sequence detector where the hardware design is expected to detect when a fixed pattern is seen in a stream of binary bits that are input to it.
What is a sequence detector explain with example?
A sequence detector accepts as input a string of bits: either 0 or 1. In a sequence detector that allows overlap, the final bits of one sequence can be the start of another sequence. Our example will be a 11011 sequence detector. It raises an output of 1 when the last 5 binary bits received are 11011.
How do you know if its Moore or mealy?
Mealy machines react faster to inputs. They generally react in the same clock cycle. In Moore machines, more logic is required to decode the outputs resulting in more circuit delays. They generally react one clock cycle later.
What is state machine in FPGA?
State machines are often the backbone of FPGA development. State machines are logical constructs that transition among a finite number of states. A state machine will be in only one state at a particular point in time. It will, however, move between states depending upon a number of triggers.
What is sequence detector?
Sequence Detector is a digital system which can detect/recognize a specified pattern from a stream of input bits. Sequence Detector Conceptual Diagram Let’s say the Sequence Detector is designed to recognize a pattern “1101”. Consider input “X” is a stream of binary bits.
What is a mealy and Moore sequence detector?
Prerequisite – Mealy and Moore machines A sequence detector is a sequential state machine that takes an input string of bits and generates an output 1 whenever the target sequence has been detected. In a Mealy machine, output depends on the present state and the external input (x).
What is the output of detdetector?
Detector output will be equal to zero as long as the complete sequence is not detected. The output will be equal to 1 if the complete sequence is detected. The sequence to be detected is given to us. Follow the steps given below to design the sequence detector.
How to design a non-overlapping 101 mealy sequence detector?
In this post, we’ll discuss the design procedure for non-overlapping 101 Mealy sequence detectors. The steps to design a non-overlapping 101 Mealy sequence detectors are: Rule 1 : States having the same next states for a given input condition should have adjacent assignments.
