What does a tach adapter do? The Auto Meter Tach Adapter wires in line on the positive 12 volt supply wire. It senses current on the coil positive wire and converts it to a 12 volt signal output. The Tach Adapter is designed to be mounted under the hood.
How do you hook up a MSD tach adapter?
How do you hook up a tachometer to an MSD ignition?
- Strip the end of the trigger wire for the tachometer, and place a female-to-female connector to it.
- Run enough wire to reach the MSD ignition control box mounted on the firewall in the engine compartment.
- Attach a male connector to the end of the tach trigger wire.
What does a MSD tach adapter do?
Adapter corrects most tachometers and fuel injection pump relays that do not work directly off of the MSD Ignition’s 12 volt square wave tach output terminal.
How do you wire a tach to MSD 6al?
How to Hook Up a Tachometer to an MSD Ignition
- Strip the end of the trigger wire for the tachometer, and place a female-to-female connector to it.
- Run enough wire to reach the MSD ignition control box mounted on the firewall in the engine compartment.
- Attach a male connector to the end of the tach trigger wire.

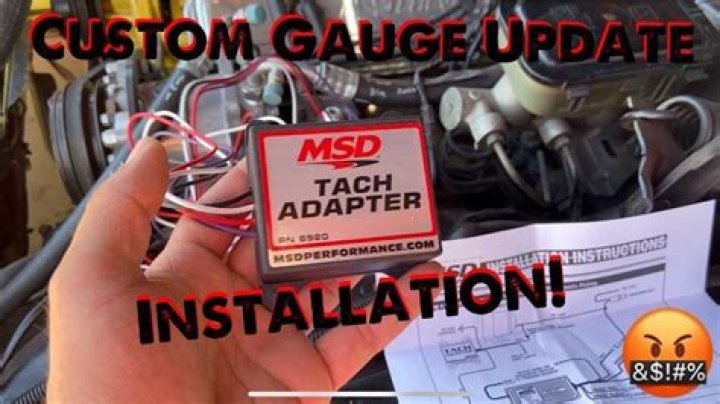

What does the MSD 8920 do?
The PN 8920 will correct the operation of most voltage-triggered tachometers that do not work directly off the tach output terminal of the MSD control. This adapter should also be used on current-triggered tach (hooked in series with the ignition switch).
What’s the difference between MSD 6A and 6al?
The on-board soft touch rev control is one of the main differences between the 6A and 6AL. This means no external rpm modules to plug in anymore, simply adjust the rotary dials located on top and you are ready to go. Like the 6A box, the 6AL has a primary voltage of 520 – 540 volts and secondary of 45,000.
How do you wire a tach to MSD 6AL?
Which wire goes where on a tach adapter?
The Wire with the two blue connectors is the correct one. The tach adapter’s RED wire connects to the lead right off the EEC diode. The Tach adapters RED/GREEN wire needs to be routed to the other end of the wire you just cut.
What parts are included in the Auto Meter tach adapter?
Parts Included: 1 – Tach Adapter 9117 1 – Butt Connector 3 – Mounting Screws 2 – Bullet Connectors The Auto Meter Tach Adapter wires in line on the positive 12 volt supply wire. It senses current on the coil positive wire and converts it to a 12 volt signal output.
How do you route a tachometer wire?
Most have found the easiest way to route the tach signal wire is through the shifter cable grommet. This will be the only wire to route into the cabin. Use an awl or similar to poke the hole. A minimum 16-18awg wire should be used. Depending on what size tachometer you choose, you can install your new tach in a variety of pods.
Do I need a tach adapter for a panther tachometer?
1992-1995 panthers do not need a tach adapter for a tachometer install. You should source the tach signal from the tan/yellow stripe wire at terminal #2 of the EDIS module. The PCM is sensitive to signal noise on this wire, so make a nice clean tap and route with care.
