The compressed air is applied directly to the liquid column separated by elastomeric diaphragms. The diaphragm acts as a separation membrane between the compressed air and liquid; a balanced load removes mechanical stress from the diaphragm. The compressed air moves the diaphragm away from the center of the pump.
What is the use of Wilden pump?
Wilden pumps are long-lasting and any broken parts can be easily replaced with a huge range of genuine Wilden spare parts. As a result, they are used in a wide range of industries to handle different materials such as chemicals, crude oil, mining, food, beverage, paints and many more.
What kind of pump is a Wilden pump?
The Wilden 3” air diaphragm pump is a positive displacement pump that uses a combination of reciprocating action and either a flapper valve or a ball valve to transfer liquids. This pump is sometimes referred to as a membrane pump.
How do you troubleshoot a diaphragm pump?
Troubleshooting a Diaphragm Pump
- Check the inlet air line size and pressure.
- Inspect for muffler icing and restrictions.
- Inspect sealing surfaces for leakage.
- Ensure proper tubing and piping size.
- Slow the pump down to prime.
- Clear any fluid line restrictions.
What is Wilden diaphragm pump?
Wilden® is a global leader in sanitary, hygienic, and biopharmaceutical air-operated double-diaphragm (AODD) pumps. They offer a wide range of solutions for various food, beverage, dairy, personal-care, and biopharmaceutical applications.
How do you prime a diaphragm pump?
To solve this priming issue in a matter of seconds, slow down the pump by using the air regulator to decrease the air pressure entering the air valve. Once the pump speed has been reduced and the fluid has had enough time to enter the pump, increase the air pressure and operate the pump at a faster speed.
Are diaphragm pumps positive displacement?
The Working Principle Of A Diaphragm Pump A double diaphragm is a positive displacement pump which utilises two flexible diaphragms that reciprocate back and forth, creating a temporary chamber, which both draws in and expels fluid through the pump.
What is an ARO pump?
ARO Pro Series air operated diaphragm pumps are ideal for general industrial and OEM installation applications. They can easily pump from clean, light viscosity fluids to corrosive, abrasive medium viscosity fluids and can transfer large particles without damage.
What are the parts in a Wilden pump repair kit?
This Wilden pump repair kit for the T2 and M2 pump includes genuine Wilden parts. Standard pump repair kits for 1-inch T2 series metal pumps include the following: diaphragms, valve balls, valve seat o-rings, air side gaskets and shaft glyd rings.
How does a Wilden diaphragm pump work?

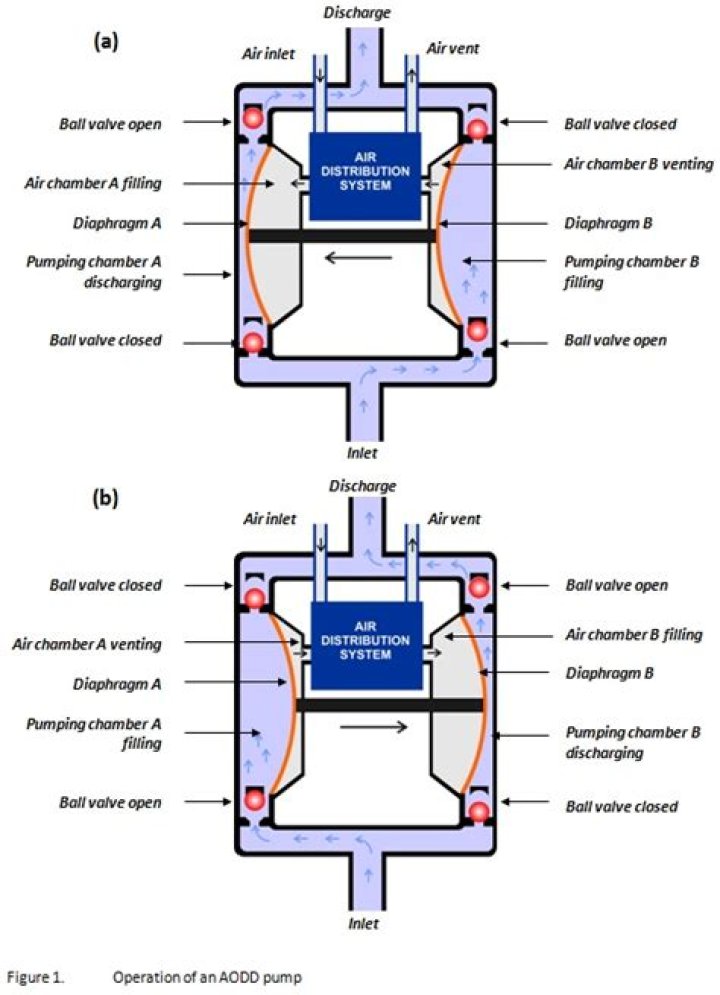

The Wilden diaphragm pump is an air-operated, positive displacement, self-priming pump. These drawings show the flow pattern through the pump upon its initial stroke. It is assumed the pump has no fluid in it prior to its initial stroke. FIGURE 1 The air valve FIGURE 2directs pressurized air to the diaphragmback side of diaphragm A.
How does a winwilden pump work?
WILDEN PUMP DESIGNATION SYSTEM FIGURE 1 The air valve directs pressurized air to the back side of diaphragm A. The compressed air is applied directly to the liquid column sepa- rated by elastomeric diaphragms.
Why choose Wilden ®?
Because Wilden ® offers such a wide variety of air-operated double-diaphragm (AODD) pumps and accessories that can be used in just about any pumping application, it also offers an extensive library of product literature, brochures, flyers and guides.
