The small hole on orifice plates restricts flow which causes the pressure to drop. The pressurecan be measured using pressure gauges before and after the orifice plates whichallows you to determine the flow rate using the Bernoulli’s Equation.
How do you calculate compressed air flow?
How Do You Calculate CFM for an Air Compressor?
- Next, convert to standard pressure (ATM).
- Tank Pump-up Time = 1 min 8.4 seconds (1.14 minutes)
- The three primary factors are:
- CFM = Tank Volume in Cubic Feet x Standard Pressure (ATM) During a Cycle x Cranks per Minute.
How does an orifice control flow?
In flow control applications, orifice plates are used as restriction devices to regulate fluid flow or reduce the flowing pressure downstream of the orifice plate. The use of a fixed restriction orifice can be beneficial and economic by reducing the demands on other flow system components.
When using the orifice plate for flow measurement the fluid flowing through the orifice will create?
The orifice causes a flow restriction and produces a pressure drop from one side of the hole to the other. The amount of pressure difference is proportional to the flow of fluid through the hole. The flow is calculated from the pressure difference and flow areas using accurate mathematical formulas.
What is an orifice valve?
An orifice valve is a control valve for fluid flow. An orifice is a small hole in a plate or pipe.
How does an orifice plate flow meter work?

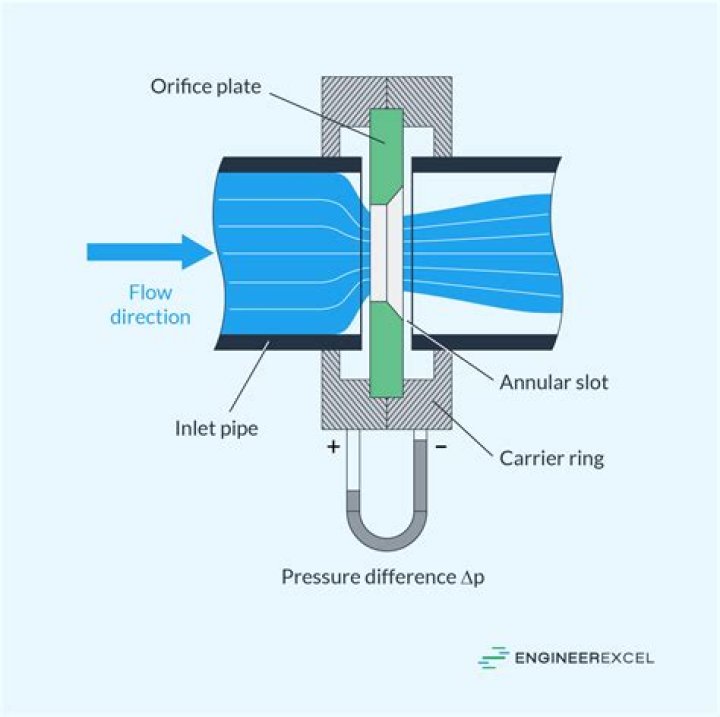

The working principle of orifice plate flow meters When an orifice plate is placed in a pipe carrying the fluid whose rate of flow is to be measured, the orifice plate causes a pressure drop which varies with the flow rate. This pressure drop is measured using a differential pressure transmitter and can be used to calculate the flow rate.
What happens when fluid comes out of the orifice plate?
When the fluid comes out of the orifice plate’s opening, it’s cross-section is minimum and uniform for a particular distance and then the cross-section of the fluid starts diverging in the downstream. At the upstream of the orifice, before the converging of the fluid takes place, the pressure of the fluid (P1) is maximum.
How do you determine the pressure profile of an orifice?
The pressure profile particular to flow through a given orifice and its immediate upstream and downstream piping will vary based on several factors that, aside from computational fluid dynamics (CFD) modeling, can only be determined with experimental data.
What is the flow coefficient of an air orifice?
For real flows (such as water or air), viscosity and turbulence are present and act to convert kinetic flow energy into heat. where A o is the area of the orifice. The flow coefficient C f is found from experiments and is tabulated in reference books; it ranges from 0.6 to 0.9 for most orifices.
