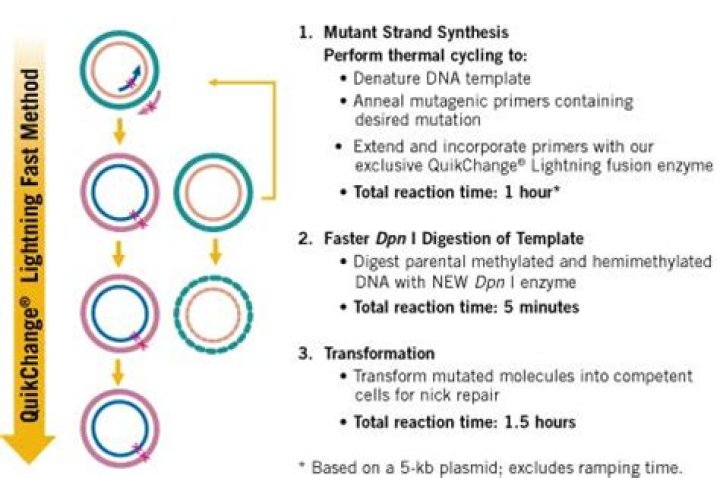

QuikChange™ works by using a pair of complementary primers with a mutation. In a round of PCR cycles these primers anneal to the template DNA, replicating the plasmid DNA with the mutation. The mutant DNA product has a strand break (nick) (Figure 1A).
What is oligonucleotide site directed mutagenesis?
Also called site-specific mutagenesis or oligonucleotide-directed mutagenesis, it is used for investigating the structure and biological activity of DNA, RNA, and protein molecules, and for protein engineering. …
How is PCR used for site directed mutagenesis?
Traditional PCR When PCR is used for site-directed mutagenesis, the primers are designed to include the desired change, which could be base substitution, addition, or deletion (Figure 1). During PCR, the mutation is incorporated into the amplicon, replacing the original sequence.
Why is dpn1 used in site-directed mutagenesis?
To remove the template DNA (unmodified plasmid) a restriction digest with DpnI is used. DpnI is unique in that it cleaves only DNA that is methylated at the adenosine of the GATC recognition site.
Why is my site-directed mutagenesis not working?
Try altering the extension temperature or time, e.g. drop extension temperature to 68°C and extend at 60 seconds/kb. Add a little DMSO (2-8%) to disrupt base pairing and assist in strand separation in GC rich regions. Check that your competent cells are working with a control transformation.
Which phage is used in oligonucleotide directed mutagenesis?
M13
An olignucleotide sequence complementary to the segment of interest, but containing an alteration at a selected site, is chemically synthesized. Next this is hybridized to a complementary wild-type target gene contained in a single-stranded phage such as M13.
How do I know if a website is directed mutagenesis?
Look for change in restriction sites at the point of mutation, if possible. 1) If possible, engineer the mutation to introduce a unique restriction site, and then digest your transformants. 2) Use derived cleaved amplified polymorphic sequences (dCAPS). This is a PCR-based “amplify and digest” assay.
