The rotation of the micrometer screw advances the rocking arm toward the knife during each upstroke on a set depth. Pushing the lever forth depresses the arm bringing the paraffin block surface into contact with knives edge.
What is Rotary rocking microtome?
Rotary rocking microtome Commonly used in cryostats, the retracting action moves the tissue block away from the knife on the upstroke, producing a flat face to the tissue block.
What is Cambridge rocking microtome?
Cambridge rocking microtome is very well known and one of the best established microtomes in the world, which has given outstanding service to numerous microtomists through the years. It is designed for sectioning comparatively soft, wax-embedded tissues with a thickness range of 2mm to 24mm, in steps of 2mm.
How does a rotary microtome work?
By turning manually the hand dial, the rotary microtome moves vertically to focus on the given object. The cutting procedure is done with the aid of a knife that can be sharpened or a disposable blade that may be adapted to and fastened into different knife holders.
Who invented the rocking microtome?
Horace Darwin
The Cambridge Rocker microtome was developed by Horace Darwin (son of Charles). It was first marketed in 1885 and was one of the most successful microtomes ever invented. Thousands of sections of tissue are cut every day on a microtome before being stained and examined by histopathologists.
What is freezing microtome used for?
Freezing Microtome (Erma Type); is a high precision scientific instrument that is used for cutting thin to semi-thin sections of fresh, frozen tissue and semi-thin sections.
What is sectioning in histology?
In histology, sectioning refers to the service of cleanly and consistently cutting paraffin embedded or frozen tissue into a thin slice. These thin slices are referred to as sections and are then mounted to a slide. There are two main categories of sectioning, referred to as paraffin or frozen sectioning.
What is meant by serial sections?
Serial sectioning is defined as obtaining a continuous ribbon of sections from a paraffin block and placing all the sections on multiple slides. Serial sections are meant for the analysis of tissue changes at different measured depths of the sections taken.
What is freezing Microtomy?
Quick Reference. A microtome in which the tissue sample is frozen and maintained in a frozen state with liquid carbon dioxide. It is useful for (rapidly) obtaining sections of unfixed soft tissue.
What is the knife used in rotary microtome?
diamond knife
Electron Microscopy Technique: After embedding tissues in epoxy resin, a microtome equipped with a glass or gem grade diamond knife is used to cut very thin sections (typically 60 to 100 nanometer).
Which part of microtome holds the block for section cutting?
Knife holder: This part is comprised of several components including the blade clamp that holds the blade, the knife tilt for adjusting the knife angle, and the face plate that guides that ribbons away from the blade and towards the operator. Cassette clamp or block holder: Holds the paraffin block in place.
What is frozen section in histopathology?
The frozen section is the rapid tissue section by cooling the tissue with the help of cryostat to provide immediate report of the tissue sample. The cryostat is the instrument to freeze the tissue and also to cut the frozen tissue for microscopic section.

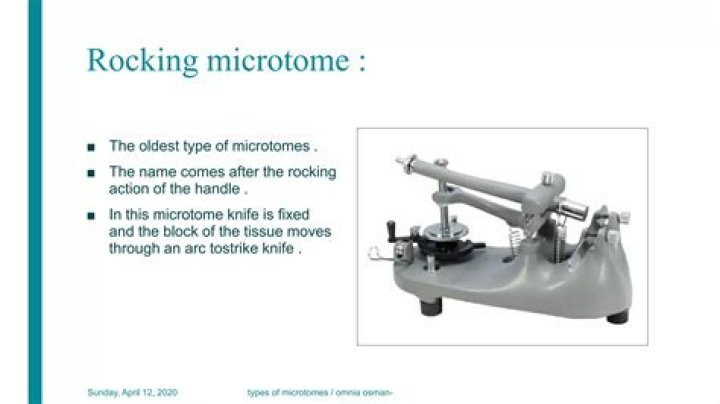

What is a rocking microtome used for?
The rocking microtome was designed primarily for cutting paraffin wax sections but in an emergency use frozen section by inserting a wooden block in which the tissue is frozen. It cuts the sections between 1 to 20 microns.
What is a microtome used to cut?
This type of microtome is designed for cutting sections of very large blocks of tissues for example whole brain, this microtome has become popular for routine use. It is useful for cutting extremely hard blocks and large sections. The microtome is heavy and stable.
What is base sledge microtome used for?
This type of microtome is designed for cutting sections of very large blocks of tissues for example whole brain, this microtome has become popular for routine use. Advantages of Base-sledge microtome. It is useful for cutting extremely hard blocks and large sections. The microtome is heavy and stable.
What are the parts of a Brunel rocking microtome?
Figure 3A – Brunel rocking microtome main parts 1 – Rocking arm; 2 – Micrometer screw; 3 – Operation lever; 4 –Knife holder; 5 – Sample holder base (the holder absent); 6 – Knife holder tightening screw; 7 – Sample holder screw; 8 – The safety lock mechanism. Figure 3B – upper view. “M” – is the lever for controlling section thickness.
