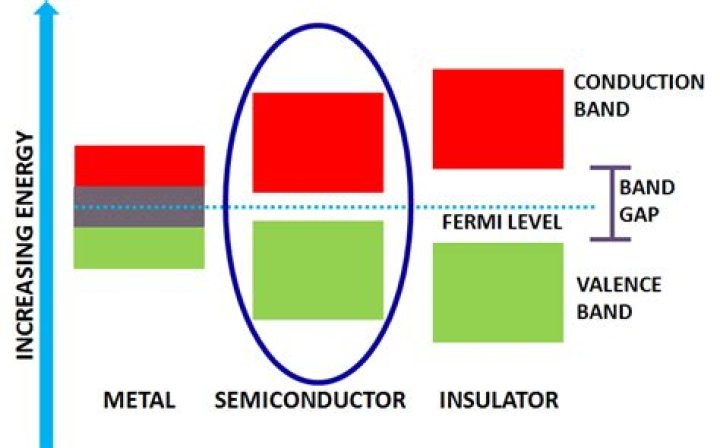

Semiconductors and insulators are distinguished from metals by the population of electrons in each band. In semiconductors, the band gap is small, allowing electrons to populate the conduction band. In insulators, it is large, making it difficult for electrons to flow through the conduction band.
What is typical band gap for conductor insulator and semiconductors?
In a semi- conductor, a typical band gap is about 1 eV. Silicon has a band gap of 1.17 eV (indirect gap) and germanium has a band gap of 0.744 eV (indirect gap).
Do insulators have a band gap?
An insulator is a material that has a large band gap, or a large energy difference between the valence and conduction band. This large energy difference makes it difficult for electrons to move to the conduction band where they can flow and create an electrical current.
What is the band gap of insulator?
The energy gap of insulator is approximately equal to 15 electron volts (eV). The electrons in valence band cannot move because they are locked up between the atoms.
What is metal band theory How does it explain the conductivity in metals semiconductors and insulators?
Band theory and conductors, insulators and semi-conductors In some metals the conduction and valence bands partially overlap. This means that electrons can move freely between the valence band and the conduction band. The conduction band is only partially filled. This means there are spaces for electrons to move into.
Why is band gap important?
As the electronegativity difference Δχ increases, so does the energy difference between bonding and antibonding orbitals. The band gap is a very important property of a semiconductor because it determines its color and conductivity.
What is a band gap in semiconductors?
The energy required for electrons and holes to transition from the valence band to the conduction band is called a band gap. Si (Silicon) has a band gap of 1.12 eV (electron volt). Since wide-band-gap semiconductors have small lattice constants, the bond strength between atoms becomes strong.
Why do insulators have large band gaps?
Why do insulators have a large band gap? – Quora. All of the electrons in insulators are tied up in interatomic bonds. To remove these electrons from their bonds it takes a large amount of energy, several electron volts, eV. This is manifested as the band gap.
Why do semiconductors have a band gap?
Semiconductors are defined to have conductivity in between an insulator and a conductor. A small band gap allows for the solid to have a strong enough flow of electrons from the valence to conduction bands in order to have some conductivity. …
Why do band gap exist?
Essentially, the band gap represents the minimum energy that is required to excite an electron up to a state in the conduction band where it can participate in conduction. The size and existence of this band gap allows one to visualize the difference between conductors, semiconductors, and insulators.
What is semiconductor band gap?
The band gap of a semiconductor is the minimum energy required to excite an electron that is stuck in its bound state into a free state where it can participate in conduction. The band gap (EG) is the gap in energy between the bound state and the free state, between the valence band and conduction band.
What is band gap engineering in semiconductor physics?
In semiconductor physics. Band-gap engineering is the process of controlling or altering the band gap of a material by controlling the composition of certain semiconductor alloys, such as GaAlAs, InGaAs, and InAlAs. It is also possible to construct layered materials with alternating compositions by techniques like molecular-beam epitaxy.
Are metals semiconductors and insulators?
Metals, Semiconductors, and Insulators. Metals have free electrons and partially filled valence bands, therefore they are highly conductive (a). Semimetals have their highest band filled. This filled band, however, overlaps with the next higher band, therefore they are conductive but with slightly higher resistivity than normal metals (b).
Why is the energy gap between the valence band and conduction band?
In insulators, the valence band is completely filled while the conduction band is empty. This results in a large energy gap. Since the energy gap between the conduction band and the valence band is more, there is no movement of electrons from the valence band to the conduction band.
Why is diamond an insulator and silicon a semiconductor?
At room temperature, very few electrons have the thermal energy to surmount this wide energy gap and become conduction electrons, so diamond is an insulator. An analogous treatment of silicon with the same crystal structure yields a much smaller band gap of 1.1 eV making silicon a semiconductor.
