Variable-pitch stators (to control flow angles), compressor bleeds, casing treatments, and tip clearance controls all are used to avoid stall conditions.
What is an airplane engine stall?
When an airplane stalls, it’s no longer able to produce lift. This isn’t due to a mechanical problem, such as a failing engine. Rather, airplanes experience stalls when the angle at which they enter the wind current is greater than the critical angle of attack.
What are the indications of compressor stall?
This is a compressor stall. A loud bang, aircraft shudder, flames erupting out of the front and tailpipe of the engine, along with momentary engine indicator fluctuations are common. Closing of the throttle on the affected engine usually corrects the problem, depending upon the reason that the airflow was disrupted.
What is compressor stall margin?
Engine compressor will stall if the compressor is operated above the surge line. An operating curve of a gas turbine engine, which shows the relationship between the compression ratio of the engine and the mass airflow that must be maintained throughout the engine.
Can a jet engine stall?
Compressor stall was a common problem on early jet engines with simple aerodynamics and manual or mechanical fuel control units, but has been virtually eliminated by better design and the use of hydromechanical and electronic control systems such as Full Authority Digital Engine Control.
Can a plane stall at any speed?
CFIs repeat it like a mantra: An airplane can stall at any airspeed, in any pitch attitude. Stall speed increases as weight increases, since wings need to fly at a higher angle of attack to generate enough lift for a given airspeed.
Can a fighter jet stall?
Although fighter jets are designed to be agile, stealthy, and fast, the stalling characteristics play a vital role in its effectiveness. If a fighter jet stalls frequently, the job of a pilot becomes quite difficult as he/she must focus on keeping the aircraft in the air rather than the mission at hand.
What is the difference between surge and stall?
In elementary terms, stall is a disturbance of the flow in the tangential direction, while surge is a disturbance in the axial direction. During stalled operation, the average flow rate through the compressor is steady, but during surge, the flow rate will pulse—sometimes so violently that reversed flow is induced.
What is a compressor stall in a jet engine?
A compressor stall occurs when there is an imbalance between the air flow supply and the airflow demand; in other words, a pressure ratio that is incompatible with the engine RPM. When this occurs, smooth airflow is interrupted and turbulence and pressure fluctuations are created within the turbine.

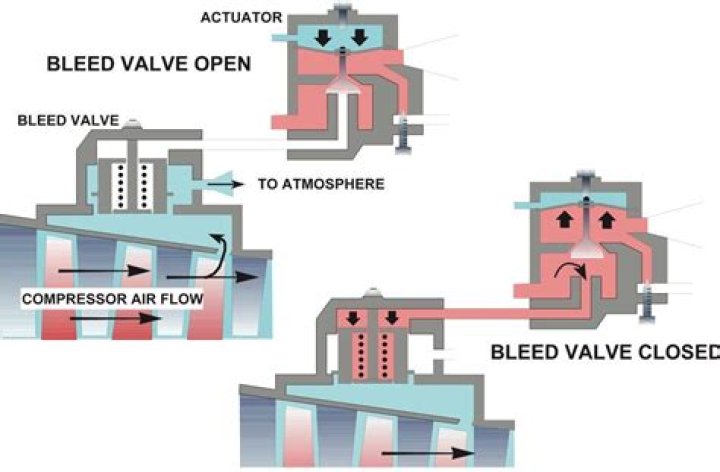

What prevents turbine engines from compressor stalls?
Which place in the turbojet engine is subjected to the highest temperature? What prevents turbine engines from developing compressor stalls? Compressor bleed valves. What indicates that a compressor stall has developed and become steady?
Why do air compressors stall?
When it’s disrupted or distorted as it enters the engine, there’s a high risk for a compressor stall. 2) The most common reasons for disrupted air entering the engine are: foreign object damage (like a bird strike), worn or dirty compressor components, in-flight icing, operations outside the design envelope, and improper engine handling.
What is a rotating stall in an axial compressor?
An animation of an axial compressor showing both the stator and rotor blades. Rotating stall is a local disruption of airflow within the compressor which continues to provide compressed air, but with reduced effectiveness.
What causes a 747 engine to stall?
The most common cause of compressor stalls in early versions of the Pratt & Whitney JT9D engines powering the 747-100/200 was the use of excessive reverse when the airplane had slowed too much for the degree of reverse used. This was exacerbated if it was a high-time engine.
What happens when an airplane stalls?
When some of the airfoils stall, there is a sudden drop in power or thrust of the engine. It is also known as Rotating Stall, as the air, rather passing over the airfoils smoothly, rotate around the airfoils, thus affecting the airflow of some other airfoils also.
