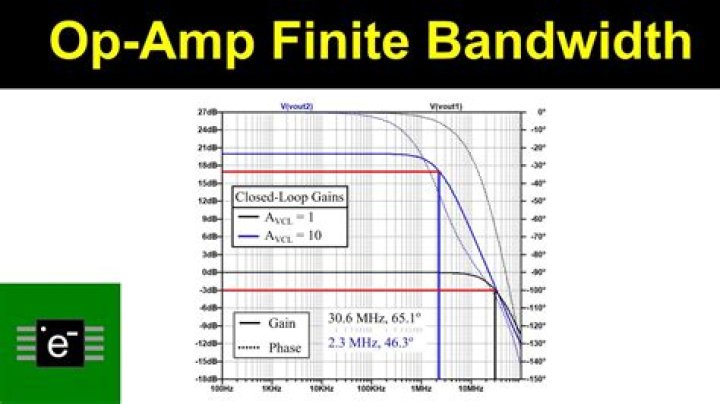

The bandwidth for the non-inverting amplifier, U1, is calculated by taking the gain bandwidth product and dividing by the non-inverting gain. So for this example, the bandwidth is 22 megahertz divided by 1, which is equal to 22 megahertz.
What is bandwidth for ideal op-amp?
Explanation: An ideal op-amp has infinite bandwidth. Therefore, any frequency signal from 0 to ∞ Hz can be amplified without attenuation.
What is op-amp gain bandwidth product?
13.19 Op Amp Gain Bandwidth Product Parameter, GBW The gain bandwidth product, GBW, is defined as the product of the open loop voltage gain and the frequency at which it is measured. It does not have much meaning for current feedback amplifiers, because there is no linear relationship between gain and bandwidth.
What is bandwidth of an amplifier?
The bandwidth represents the amount of frequencies or the band of frequencies that the amplifier is most effective in amplifying.The bandwidth(BW) of an amplifier is the difference between the frequency limits of the amplifier.
How is 3dB bandwidth calculated?
Full width at half maximum (FWHM). Answer: That is the point where the energy (power) is fallen to the value ½ or 0.5 = 50 percent of the initial power as energy quantity, that is equivalent to (−)3 dB = 10×log(0.5).
How does op amp increase bandwidth?
The best way to increase the bandwidth of an opamp is by decreasing the closed loop voltage gain of opamp. Explanation: Opamp has a very low bandwidth(around 5Hz) and to increase the bandwidth, we apply negative feedback which decreases closed loop gain.
What is the input resistance of ideal op amp?
The ideal op amp has zero input current. This is because of infinite input resistance. As the input resistance of ideal op amp is infinite, an open circuit exists at input, hence current at both input terminals is zero.
Why op amp must have infinite gain?
The fact that an op amp has a high input impedance ensures that it consumes very little or no current from the circuit and doesn’t cause a loading issue in the circuit. Ideally, you would want the gain of an amplifier to be as high as possible in a limiting case we take this as infinity.
What is the 3dB bandwidth?
The 3 dB bandwidth is the frequency at which the signal amplitude reduces by 3 dB i.e. becomes half its value. The bandwidth of a bandpass filter is usually defined as the 3 dB bandwidth.
Why does op amps gain decrease at high frequency?
All opamps have a limit on upper frequency. In a LPF, At low frequencies, the output amplitude is equal to input. But as the frequency increases, the capacitive reactance decreases and the output amplitude starts to decrease.
Why bandwidth is measured at 3dB?
It’s because decibels are logarithmic, and the log (base 10) of 3 is about 50% power. So the 3 decibel cutoff is where power drops off by a half. 3 dB implies 1/2 the power and since the power is proportional to the square of voltage, the voltage will be 0,707 of the pass band voltage.
How do I find the bandwidth of a 3dB signal?
Does an op amp have a limited bandwidth?
As any op amp has limited bandwidth, it is necessary to carefully consider the gain, bandwidth, and frequency response at the outset of the design of any circuit. Operational amplifiers themselves when operating in open loop mode only have a very limited limited bandwidth before the gain starts to fall.
What is the bandwidth of an operational amplifier?
The operational amplifiers bandwidth is the frequency range over which the voltage gain of the amplifier is above 70.7% or -3dB (where 0dB is the maximum) of its maximum output value as shown below. Here we have used the 40dB line as an example. The -3dB or 70.7% of Vmax down point from the frequency response curve is given as 37dB.
What is the gain and cut-off frequency of op-amp?
As shown in Fig.1, The gain of the op-amp is constant up to a certain frequency and beyond that frequency, the gain of the op-amp reduces at a constant rate of -20 dB/dec. Cut-off Frequency of the op-amp: The frequency at which the gain of the op-amp reduces by 3dB from the maximum value is known as the cut-off frequency of the op-amp.
What is unity gain frequency of op-amp?
Unity Gain Frequency : The frequency where the gain of the op-amp is unity is called unity gain frequency. As, shown in Fig.3, because of the internal compensation, it is easy to understand the behavior of the op-amp with frequency (particularly in the closed-loop configuration).
