At the minimum 50 PSI, a 7/16” orifice nozzle will require 147 CFMs. As you increase the pressure going into the pot, the amount of CFMs needed at the nozzle will increase as well. The same TMP-7 Nozzle blasting at the optimal 90 PSI will require 240 CFMs to keep up with the amount of air being put out at the nozzle.
What size air compressor do I need for media blasting?
Usually, a 50 – 60 hp compressor will do the job, depending on the number of operators and the size nozzle(s) being used. Clean, dry air is a MUST for blasting.
How is compressed air consumption calculated?
Multiply the known flow by the ratio of the input pressures converted to absolute
- Step 1: Calculate the ratio of absolute inlet pressures. English Units: Metric Units: 80 PSIG + 14.7. =
- Step 2: Multiply known flow by the above ratio you just calculated. English Units: Metric Units: 15 SCFM x 0.8256 = 12.384 SCFM.
Will a pancake compressor run a sand blaster?
DEWALT Pancake Air Compressor And hence, this one meets almost all our sandblaster compressor requirements and is a great option for the best air compressor for sandblasting. This has an output volume of 2.6 Standard CFM when delivering at 90 psi, so it has the pressure and CFM for sandblasting.
Is 4 CFM enough for sandblasting?
An air compressor which produces between 10CFM – 20 CFM is ideal for smaller sandblasting tasks. While a compressor which produces between 18CFM to 35 CFM is better for larger jobs where a more powerful experience is needed. While an industrial type of sandblasting needs a CFM of 50 – 100.
How much PSI does a sandblaster need?
You should use a tank with a minimum of 100 PSI for optimum efficiency with any abrasive sandblasting project. If you work with a lower PSI, you’ll add a significant amount of time to your project. If you reduce your blasting pressure by half, your pressure cleaning project will take four times as long.
What size blast nozzle is normally used?
For vapor abrasive blasting, the most commonly-used nozzle orifice sizes range from 3/8″ inner diameter to 3/4″, increasing by increments of 1/16″. A 3/8″ nozzle is sufficiently constricted to produce a effective blast pressure with a 185 CFM compressor.
How do you calculate air consumption?
To calculate the air consumption of a cylinder, multiply the total inches of stroke (extend plus retract) by the cycles per minute times the SCFM factor from the chart below. To find the SCFM factor, find your gauge pressure in the left hand column. Next, find your cylinder bore size in the chart.
What is CFM air compressor?
CFM is cubic feet per minute, which indicates the compressor’s flow rate – or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications.
What size air compressor do I need for a sandblasting cabinet?
As a general rule when cabinet blasting, use a small nozzle setup (4-8 cfm) for 3-5 HP single-stage compressors and then only plan on blasting on an intermittent basis (to allow proper cooling of the compressor).
Is 8 bar enough for sandblasting?
As a rule of thumb, the pressure for abrasive blasting should never exceed 7 bar. Exceeding a 7 bar pressure will tire the blaster out faster, resulting in unnecessary operator’s fatigue.
What size air compressor do I need to sandblast?

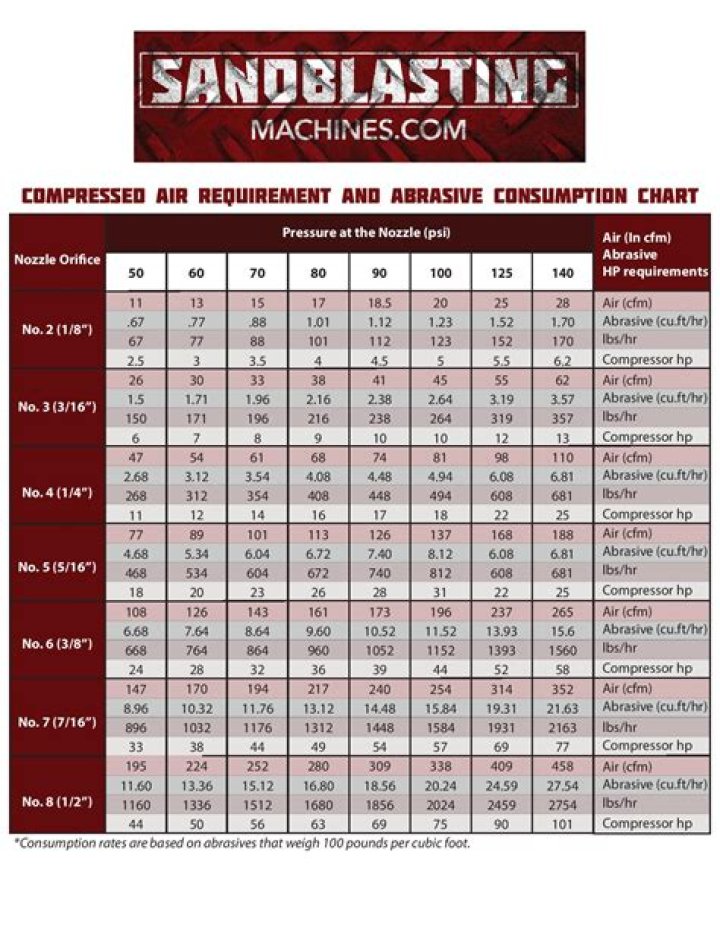

(Chart for compressed air, nozzle size, and media consumption) –Using the chart below, if you want at least 90psi to sandblast, and your compressor’s horsepower is 17 or 74cfm, you can see that you can run a nozzle size of 1/4″ or smaller.
How do I determine the consumption of a nozzle?
The consumption depends on the nozzle; it does not depend on the blast machine being used. The nozzle’s smallest internal bore can be determined using a Hodge Clemco orifice gauge, or by simply inserting a standard drill bit to match the internal bore size.
How do I determine the consumption of air with abrasive?
To determine the consumption of air with abrasive, click the nozzle (internal diameter) you are using and drag the slider to specify the air pressure. The consumption depends on the nozzle; it does not depend on the blast machine being used.
Should I buy a carbide or ceramic nozzle?
–Because carbide lasts so much longer! Ceramic nozzles can blow out to double its original diameter in a matter of hours; you will lose a lot of pressure! JP recommends that you try out and learn what size nozzle you like by buying ceramic first, then you’ll know what size to buy in the superior carbide nozzle.
