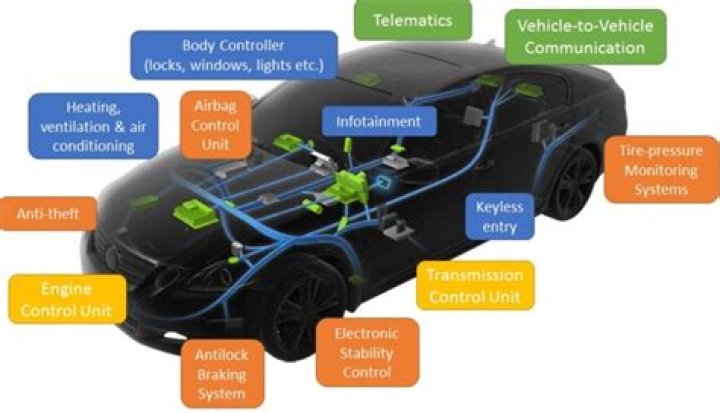

Automotive Electronics – Electronic control unit An Electronic Control Unit (ECU) is an embedded system that controls electrical subsystems in a transport vehicle. Modern motor vehicles have up to 80 ECUs.
How do you know if your ECU is bad?
Here are the most common symptoms of a bad ECU:
- Check Engine Light stays on after resetting.
- Car was jump started on reverse polarity.
- Engine turning off for no reason.
- Water Damage or Fire Damage on the ECU.
- Apparent loss of spark.
- Apparent loss of injection pulse or fuel pump.
- Intermittent starting problems.
- Overheating ECU.
What is ECU on a car?
An electronic control unit (ECU) is a small device in a vehicle’s body that is responsible for controlling a specific function. An ECU receives inputs from different parts of the vehicle, depending on its function.
How do you access a car’s ECU?
ECU programming guide
- Connect the vehicle interface cable to the OBD-II connector and turn the ignition switch to ON.
- Open the ProECU software and choose Tools then Detect Vehicle.
- Select Program Engine ECU.
- Choose Query ECU to identify the ECU version fitted to the car.
What are the inputs to the ECU?
Inputs are connected to a wide array of sensors on the engine which provide the ECU with essential engine information. Once the sensor information is received and processed using a fuel and ignition table, signals are sent out via the ECU’s outputs to the fuel and ignition system.
What is inside ECU?
Modern ECUs use a microprocessor which can process the inputs from the engine sensors in real-time. An electronic control unit contains the hardware and software (firmware). The hardware consists of electronic components on a printed circuit board (PCB), ceramic substrate or a thin laminate substrate.
How much does it cost to fix a ECU?
ECU repairs can be very expensive. The part alone can cost between $1,000 and $3,000, depending on the make and model of your vehicle. Fortunately, an ECU can be repaired or reprogrammed in many cases—thus preventing the need to actually replace an ECU.
How much does an ECU replacement cost?
On average, you can expect the parts cost to be anywhere from $400 to $1,400 while the labor costs are roughly from $100 to $200 for reprogramming and installation. You may be able to save some money on a refurbished ECU but that usually comes with a bit of risk.
Does every car have an ECU?
YES, The electronic control unit (ECU)is used in almost every cars. It is used to control the engine and other components’ functions.
What causes ECU failure?
The ECU has seals around it which are supposed to prevent moisture from entering inside. Moisture is a bad thing to have in an ECU because corrosion will form on its components. If the corrosion is not cleaned away quickly, it will cause these components to get damaged. Then you will have a malfunctioning ECU.
Where is the ECU located on a Volkswagen?
On most Volkswagen model,the ECU is located beneath the wipers behind the plastic trim. Audi:It is apply to most audi,the ECU is located beneath the wipers behind the plastic trim. Audi A5 ECU Location shows below: Bentley:Continental GT-Under Plastic Panel at N/SR of engine bay x2 ECU’s.
Where is the ECU located on a Toyota Corolla?
On most models the ECU is located beneath the wipers behind the plastic trim. On most models the ECU is located beneath the wipers behind the plastic trim.
Where can I find/locate my ECU?
Where Can I Find/Locate My ECU? 1 AUDI. On most models the ECU is located beneath the wipers behind the plastic trim. 2 BENTLEY 3 BMW 4 CITROEN 5 FIAT 6 FORD 7 HONDA 8 HYUNDAI 9 ISUZU 10 LANDROVER. In plastic box next to battery Inside Vehicle under driver’s seat.
Where is the ECU located on a 2004 Chevy Silverado?
The Ecu Is Located On The Passenger Side Of The Engine Bay, In A Black Plastic Box. To Identify Your Ecu You Will Need To Know Its Generation, Part Number And Possibly Its Rom Number.
