two resonance structures

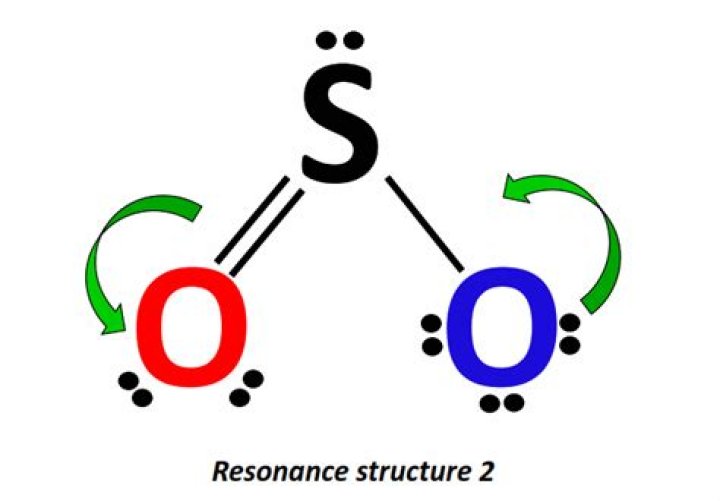

What are the resonance structures of SO2? Hint: Sulfur dioxide ($S{{O}_{2}}$) has two resonance structures which contribute equally to the overall hybrid structure of the molecule.
How many total covalent bonds are in the molecule SO2?
SO2 has 2 double covalent bonds. 1 with each oxygen atom so it has 2 pi and 2 sigma bonds.
How many double bonds does SO2 have?
There are two double bonds between sulfur atom and oxygen atoms in SO molecule. Also, a lone pair exists on sulfur atom and each oxygen atom has two lone pairs in SO2 lewis structure.
Does OCl2 have resonance?
Problem: Two possible resonance structures for OCl2 are shown below. The resonance structures are in equilibrium, rapidly switching back and forth d. Structure A is more accurate because the forma charge is 0 on each atom.
Is co32 a resonance structure?
Unlike O3, though, the actual structure of CO32− is an average of three resonance structures. Carbon has 4 valence electrons, each oxygen has 6 valence electrons, and there are 2 more for the −2 charge. This gives 4 + (3 × 6) + 2 = 24 valence electrons.
Is no3 a resonance?
There is no three resonance structures existing simultaneously and those resonance structures are not rotating from one structure to another. What actually happening is, there is only one real structure for nitrate ion (resonance hybrid).
What type of bond does SO2 form?
SO2 is a covalent molecule because the bond is formed between one sulfur and two oxygen atom by the sharing of electrons….Is Sulfur dioxide (SO2) ionic or covalent? Types of bond in SO2.
| Name of Molecule | Sulfur dioxide |
|---|---|
| Bond type | Covalent |
| Nature | Acidic |
How to determine resonance structures?
1) The same molecular formulas.
What is the Lewis dot structure for SO2?
The Lewis structure for SO2 requires you to place more than 8 valence electrons on Sulfur (S). You might think you’ve got the correct Lewis structure for SO2 at first. Remember, Sulfur is in Period 3 and can hold more than 8 valence electrons.
How to draw resonance structures?
Step 1: Transfer the electrons on the oxygen with the negative charge and turn it into a double bond.
What is a resonance structure?
Resonance structures are sets of Lewis structures that describe the delocalization of electrons in a polyatomic ion or a molecule. In many cases, a single Lewis structure fails to explain the bonding in a molecule/polyatomic ion due to the presence of partial charges and fractional bonds in it.
