3 Bar MAP sensors can measure up to 44.1psi, which translates to 29.7psi boost from a Turbo/supercharger.

What does a 3 bar map sensor do?

By monitoring intake manifold vacuum MAP (Manifold Absolute Pressure) sensors are able to measure the amount of load being placed on the engine. The sensor relays engine load output to the ECU, which in turn adjusts fueling for optimum performance and economy.

Are all GM MAP sensors the same?

MAP sensors come in all shapes and sizes. On the left is a FAST GM-style sensor, which is popular in the aftermarket, as evidenced by the fact that companies other than GM make GM-style.

What is 3bar map?

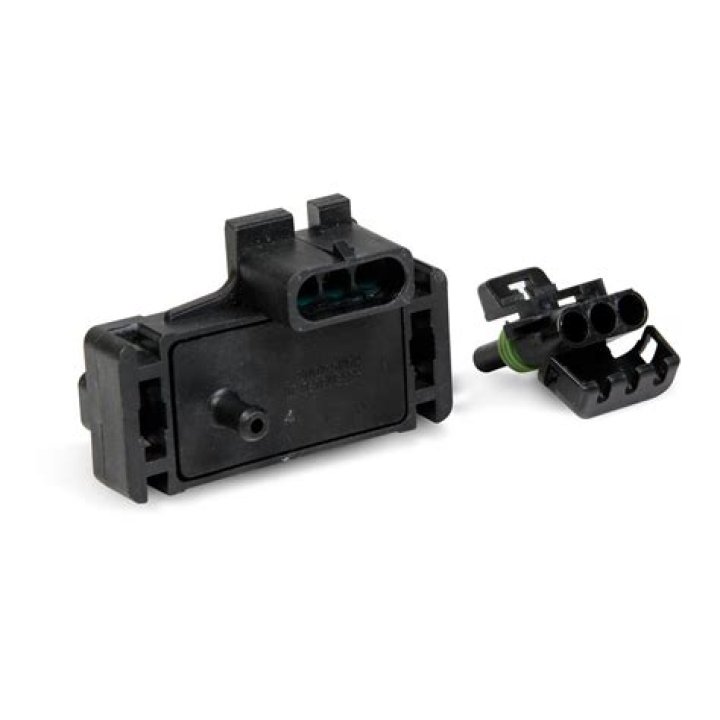

GM-style 3 bar MAP sensor. This sensor is used to determine engine load on forced induction engines. This sensor is intended to be used on engines producing positive manifold pressure up to 2 bar, or roughly 30psi of boost.

Do MAP sensors need to be programmed?

Each sensor therefore needs to be Calibrated – it needs to be programmed into the ECU what the pressure reading is at a low point around 0 Volts, and at a high point around 5 Volts. Without an accurate MAP sensor reading, it is impossible for the ECU to control the engine properly.

What is the function of the MAP sensor?

MAP Sensors The sensor provides instant manifold pressure information to the engine’s electronic control unit. The data is used to calculate air density and determine the engine’s air mass flow rate, which in turn determines the required fuel delivery for perfect combustion.

What happens when MAP sensor is unplugged?

With the MAP sensor disconnected, the fuel delivery will be excessive and could cause harm to the engine and exhaust system (catalytic converters). Your vehicle getting on the freeway accelerating, bogging down, and reaccelerating sounds like fuel starvation. It could be a fuel pump fault or a plugged fuel filter.

How many bar is my MAP sensor?

The sensor can withstand about 1.5 BAR of pressure, but the return voltage will peak out at about 4.8 volts. This type of sensor is designed for a normally aspirated engine to read a negative pressure, or vacuum, at a typical barometric pressure.
