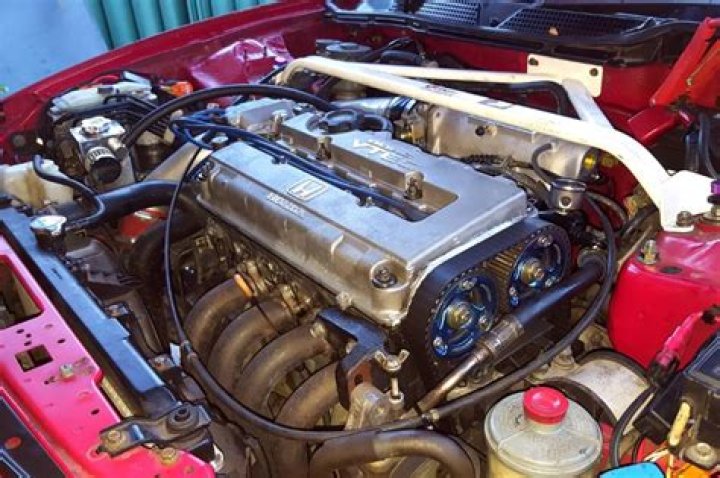

With the engine firmly in place, the 11.8:1 B20-VTEC produces 227 hp and 167 lb-ft of torque.
Are B20 VTEC reliable?
They can be very reliable if you build it correctly. If either the head or block have high miles I would suggest a rebuild. And dont rev the motor past the original rev limit unless you build it to handle the extra rpms.
Is a B20B JDM?
The B20B Engine is part of Honda’s B-series of DOHC / SOHC four cylinder automotive engines. The B20B is a low compression engine with a redline of 6500 rpm. The B20B engine can be found in the JDM Orthia, JDM Honda, S-MX and Stepwgn.
How much oil goes in a B20?
Engine Oil 3.7 quarts. w/ofAfter refill check oil level.
What kind of gas does a b20b take?
| Honda B engine | |
|---|---|
| Combustion | |
| Fuel system | Dual Keihin Carburetors Programmed fuel injection |
| Fuel type | Gasoline |
| Cooling system | Water-cooled |
How much horsepower can a B20 handle?
You could make 400 horsepower in a b20 and if you never detonated, you would be fine…..
How heavy is a B20 engine?
“The complete engine is in the neighborhood of just under 350 lbs. A cylinder head is about 40-45 lbs.”
How many liters is a B20B engine?
| Honda B engine | |
|---|---|
| Displacement | 1.6–2.0 L; 97.3–120.4 cu in (1,595–1,973 cc) |
| Cylinder bore | 81 mm (3.19 in) 84 mm (3.31 in) |
| Piston stroke | 77.4 mm (3.05 in) 81.4 mm (3.20 in) 87.2 mm (3.43 in) 89 mm (3.5 in) |
| Valvetrain | DOHC with VTEC (in some models) |
How much does a b20 weight?
How much oil does a LS VTEC take?
an LS takes 4 quarts of oil.
What is the difference between the B20B and B20Z?
The first modifications of the B20B engine had the compression ratio of 8.8 and the power of 126 HP @ 5,400 rpm, and the torque was 180 Nm @ 4,800 rpm. In 1999 production of the B20Z series was launched, which had a new intake manifold, intake camshaft, increased compression ratio (CR = 9.6), a different oil pump, and an ECU.
What is the process of building a b20/vtec motor?
The process of building a B20/VTEC motor is simple. It is exactly the same as doing an LS/VTEC conversion. Because the B20 bottom end is also from the B-series family, it easily interchanges with the B16 and B18 family of parts.
Should I replace my B20B head with b16a/b16b VTEC?
There’s no sense making performance tuning of a regular non-VTEC B20B head, it is better to replace it with B16A/B16B VTEC. It will significantly improve efficiency, but creating a hybrid B20/B16 is a quite complicated task.
What kind of engine does a Honda B20B have?
Honda B20B/B20Z engine specs Honda B20B engine reliability, problems and repair It is the largest engine of the Honda B-series, which also includes B16, B17 and B18. In this engine, an aluminum cylinder block with cast iron liners was used; its deck height was 211.84 mm.
