The lower the U-value the better the insulation properties of the material. To comply with Part L of the Building Regulations 2010, all roofs should be thermally insulated to a maximum U-value of 0.18W/m2K.
How do you insulate a cold flat roof?
How do you insulate a flat roof?
- Lay 12mm of plywood or OSB board across the timber joists as a base for the flat roof build-up.
- Install a vapour control layer to reduce the risk of condensation and moisture compromising the flat roof structure.
Do I need a Vapour barrier on a cold flat roof?
If it is not a habitable space or as per the old design for flat cold roofs then you would use foil backed plasterboard which acts as a VB. ideally you need to ventilate the roof and have a 50mm air gap above your insulation.
Is insulation required on flat roof?
There should be no insulation below the deck and no ventilation is required. Some forms of roof decking may also have insulation bonded to them. The external wall insulation needs to be extended up to the underside of the roof insulation to prevent cold bridging.
Does a cold roof need ventilation?

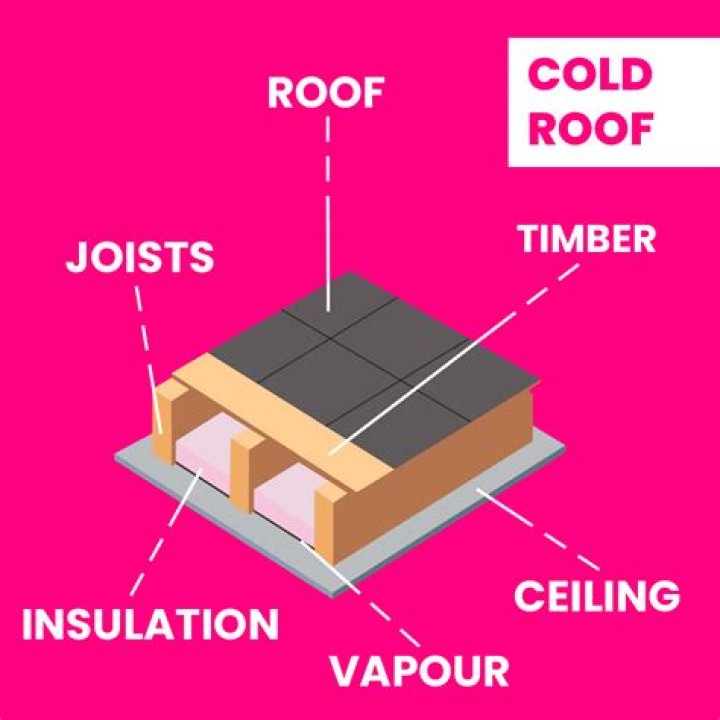

Cold Roofs A cold roof is where all of the insulation is placed either between and under or completely under the joists or deck. No insulation is on top. In this way the roof itself is kept cold. You only need ventilation in a cold roof.
How do you convert a cold roof to a warm roof?
The correct way to change a cold deck to warm deck.
- Block existing ventilation throughout.
- Take out any insulation that exists below the deck, keeping it here will create interstitial condensation.
- Fix PiR insulation over the felt.
- Fit waterproof membrane eg single y membrane.
- Plasterboard and skim to underside of joists.
How thick should flat roof insulation be?
What Insulation Thickness Do I Need for Flat Roofs? An uninsulated flat roof has a U-Value of around 1.5 W/m2K. When insulating one, you’re aiming for a value of 0.25 W/m2K or less. To achieve this, you should insulate your flat roof with insulation boards totalling around 150mm thickness.
What’s the best way to insulate a flat roof?
Closed-cell polyurethane spray foam will prove ideal for thermal insulation of a flat roof. Such an insulating solution involves applying several layers of PUR foam, with each layer around 1–2 cm thick. The effective roof insulation layer may range in thickness from 3 to 12 cm, as needed.
How do I stop condensation on my cold roof?
The cold deck solution There are two forms of flat roof construction which can reduce the risk of condensation forming. Essentially, thermal insulation can either be placed above or below the structural roof deck or waterproofing layer.
Why are cold roofs banned in Scotland?
3.15. However cold, level-deck roofs, should be avoided because interstitial condensation is likely and its effect on the structure and insulation can be severe and many instances of failure in such systems have been recorded.
Are cold flat roofs allowed?
Cold roofs must have ventilation. Warm roofs must have a VCL bonded to the deck. Roofs must be wind resistant and strong enough to walk on.
How much insulation do I need for a flat roof?
Flat roof. Cold Deck – The thickness of insulation required will vary depending on the material you decide to use and the manufacturer’s specification. A ventilation gap, usually 50mm, should be provided between the top of the insulation and underside of the roof covering to allow the air to flow across. Ventilation openings…
What are the building regulations for a flat roof?
When installing or repairing a flat roof, you must adhere to building regulations. A qualified roofing contractor will be able to advise on this but here are some of the main guidelines: Part H of the building regulations regarding drainage state that water should drain to one or two edges
What are the benefits of insulating my roof?
Insulation can also help to limit condensation and contribute to acoustic insulation (depending on the type of insulation used). To comply with Part L of the building regulations 2010, all roofs to rooms (except those in unheated buildings) should be thermally insulated to a maximum U-value of of 0.18 W/m²K.
What is the difference between warm and cold flat roofing?
Warm Flat Roofing: Insulation material is placed on top of the roof, rather than in-between the ceiling and the decking. Cold Flat Roofing: Insulation is placed in-between the joists underneath the roof surface above. Both these variants require different approaches to insulation which will be covered in this guide.
