Our natural stone cladding panels generally come in various sizes dependent on particular panel. Panel thickness varies from 15 mm in 3D panel range up to about 35-40 mm in stone panel system.
How thick is stone cladding?
For limestone, 40, 50 or 75mm are are the most common thicknesses for stone cladding, both here and in Europe.
What is dimension stone cladding?
Dimension stone is one of the most sustainable materials used in construction, cladding, paving and other applications. In addition to its use in construction, dimension stone is also needed for monumental masonry, as the raw material for sculpture, monuments and tombstones.
What size is granite?
A. Usually, the minimum average size of a granite slab is 105″ x 54″. Thicknesses can also be 3/4″ or 1-1/4″. The granite slabs are packed in bundles of approximately 400 to 450 square feet.
How thick is sandstone cladding?
What is Sandstone Cladding? Sandstone cladding is a layer of sandstone applied to an exterior or interior wall, to create a stone feature wall. Sandstone is quarried and then cut to a thickness of between 30-100mm to create sandstone cladding.
What is Portland stone cladding?
Portland Stone was traditionally used as a loadbearing masonry material, but at the turn of the 19th century the steel frame was introduced and the structure no longer relied on stone for its support. Along with the traditional, hand fixed, cladding, is the stone on pre-cast.

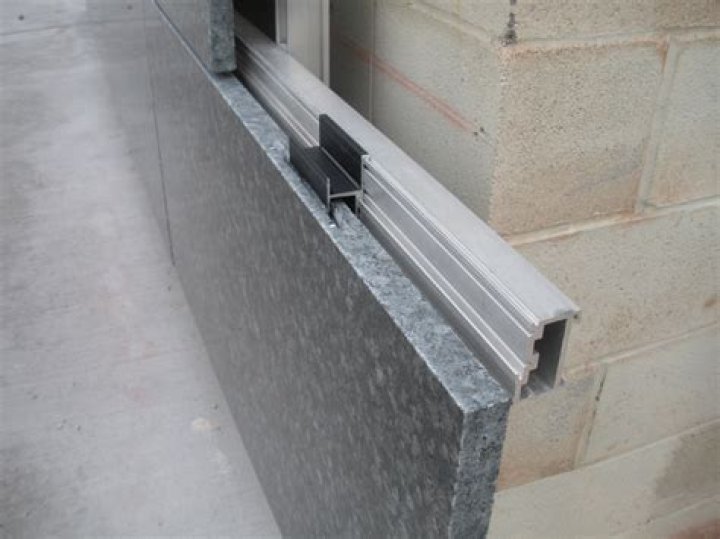

What is granite cladding?
Granite Cladding is one of the method used by people to improve the appearance of the house. It is one time activity while constructing house. For cladding we went with 1 feet * 2 feet tiles which is 10 mm size. people will go with 20 mm size slabs which are bigger in size.
How thick is a stone veneer?
How thick is your stone veneer? Approximately 1 ¼” to 1 ½” thick. The total installed depth is 2 – 3 ½” thick. The reduced thickness makes it easy for you to install our stone veneers using traditional masonry methods and perfect for interior or exterior application.
Is granite a dimension stone?
Although a variety of igneous, metamorphic, and sedimentary rocks are used as dimension stone, the principal rock types are granite, limestone, marble, sandstone, and slate.
What is the standard width of granite?
Typical Dimensions Granite slabs are typically between 9 and 10 feet long and between 5 and 6 feet wide, although the exact dimensions of individual slabs vary.
How thin can you get granite?
Granite is usually sold in either 2 or 3cm thickness.
What is the size of granite tiles for wall cladding?
Following is the process granite layer followed to fix the granite tiles to the wall For cladding we went with 1 feet * 2 feet tiles which is 10 mm size. people will go with 20 mm size slabs which are bigger in size. Before cladding process begins, We need to get marble chips and Araldite
What is the standard thickness of a granite slab?
The standard thickness of granite slabs (cutter size) is 18mm or 0.7″ Some manufacturers may, however, produce thinner slabs to cut down costs. Granite slabs thinner than 18mm may or may not be suitable depending on the area of application.
What is the thickness of a stone wall panel?
Most panels are fabricated from granite, while marble; limestone, travertine, and sandstone are also used to a lesser extent. A common panel thickness is 1-3/16 inch (3 cm). Overall panel dimensions can vary significantly for different buildings, depending on the strength of the stone used and architectural affect desired.
What is the best gauge for metal roofing?
Stainless steel: 26 gauge, 24 gauge, 20 gauge, 18 gauge, 16 gauge. Steel for metal roofing and gutters: 24 gauge. Aluminum for metal roofing: 0.032″ or 0.040″. Aluminum for gutters: 0.027″ or 0.032″ for seamless gutters and any other thickness for custom gutters.
