How to convert ENU coordinates to ECEF coordinates?

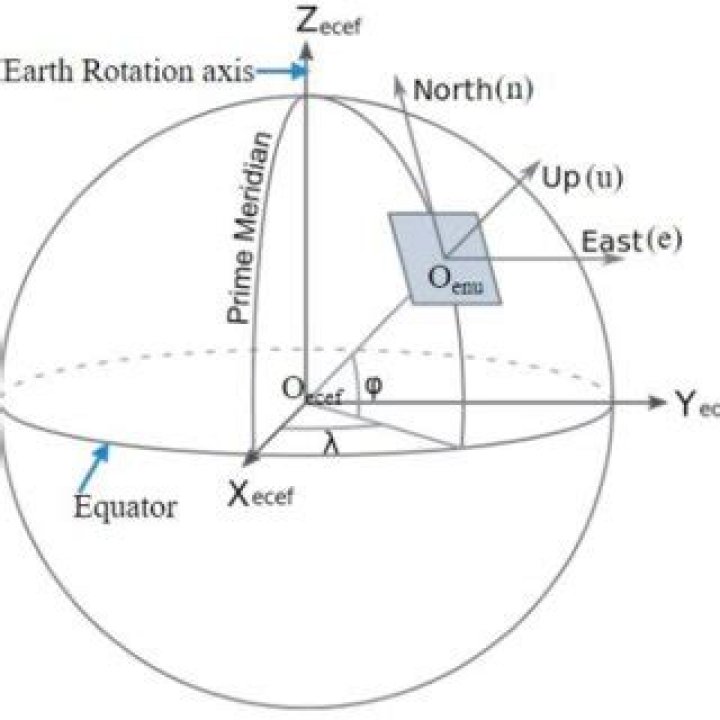

From the figure 1 it follows that the ENU coordinates can be transformed to the (x,y,z) ECEF by two rotations: 1. A clockwise rotation over east-axis by an angle 90-\\varphi to align the up-axis with the z -axis. That is {\\mathbf R}_1 [- (\\pi/2-\\varphi)].

What does ecef2enu = X East y north mean?

[xEast,yNorth,zUp] = ecef2enu(X,Y,Z,lat0,lon0,h0,spheroid) transforms the geocentric Earth-centered Earth-fixed (ECEF) Cartesian coordinates specified by X, Y, and Z to the local east-north-up (ENU) Cartesian coordinates specified by xEast, yNorth, and zUp.

What is the difference between ENU and ECEF?

The origin of the ENU system is normally on the surface of the ellipsoid while the origin of ECEF is the center of the earth. See, for example, Other Earth-based coordinate systems and Conversion calculations at Geodetic datum. Thanks for contributing an answer to Geographic Information Systems Stack Exchange! Please be sure to answer the question.

What are the three rows in R_ECEF?

1 Answer 1. The three rows are the unit vectors E, N, and U in ECEF coordinates; so when you form R.r_ecef you are computing the components of r_enu by resolving r_ecef into its ENU coordinates.

What does ecef2ned mean in math?

[xNorth,yEast,zDown] = ecef2ned (X,Y,Z,lat0,lon0,h0,spheroid) transforms the geocentric Earth-centered Earth-fixed (ECEF) Cartesian coordinates specified by X, Y, and Z to the local north-east-down (NED) Cartesian coordinates specified by xNorth, yEast, and zDown.

What is ececef Z?

ECEF z -coordinates of one or more points in the geocentric ECEF system, specified as a scalar, vector, matrix, or N-D array. Specify values in units that match the LengthUnit property of the spheroid argument.

What are the units for ellipsoidal height and ECEF?

The units for the ellipsoidal height, ECEF coordinates, and NED coordinates must match the units specified by the LengthUnit property of the reference spheroid. Specify the geodetic coordinates of the local origin. In this example, the local origin is the aircraft. Specify h0 as ellipsoidal height in kilometers.
