Simply subtracting the hook load measured during drilling from the off bottom hook load is then taken as the weight applied to the drill bit.
What is weight on bit in drilling?
Weight on the Bit, or WOB, is the amount of downward force exerted on the drill bit provided by thick-walled tubular pieces in the drilling assembly that are known as drill collars. The weight of the drilling assembly is controlled and measured while the drill bit is just off the bottom of the wellbore.
How is WOB drilling calculated?
Drill Collar Weight Calculation To Prevent Drill Pipe Buckling
- Drill collar weight in a vertical well.
- WDC = (WOB x SF) ÷ BF.
- Drill collar weight in a deviated well.
- WDC = (WOB x SF) ÷ (BF x COS (θ))
- Example: The deviated well has inclination of 30 degree in tangent section and planned mud weight is 12.0 ppg.
What is WOB why it is important to optimize the WOB and RPM in rotary drilling?

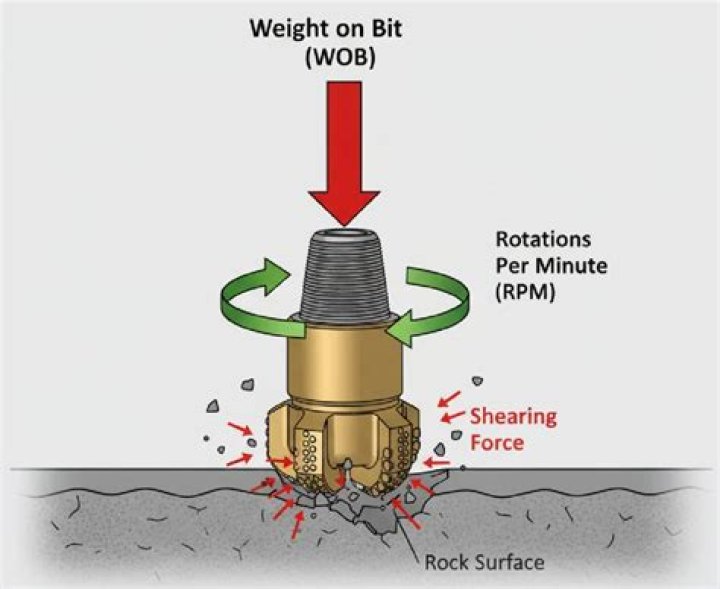

Increasing weight on bit (WOB) and rotary speed (RPM) have a significant effect on drilling performance. This is due to the fact that as WOB increases the teeth are pushed deeper into the formation and as RPM increases the cutting rotations are increased.
What is bit load?
The weight or pressure applied to a bit in drilling operations, expressed as the number of pounds or tons of weight applied. Synonym of: bit pressure, bit weight, drilling pressure, drilling weight, drill pressure, Lead.
How do you control weight on a bit?
To accurately control the amount of force applied to the bit, the driller carefully monitors the surface weight measured while the bit is just off the bottom of the wellbore. Next, the drillstring (and the drill bit), is slowly and carefully lowered until it touches bottom.
How do you calculate load on a hook?
Multiply the air weight by the buoyancy factor to calculate the drill pipe’s hook load. In the example, multiplying 250,000 by 0.6947 equals a hook load of 173,675 lbs. Subtract the hook load from the yield strength to calculate the overpull. In the example, 450,675 minus 173,675 equals an overpull of 276,325 lbs.
Can a drill collar buckle?
There is little chance of buckling causing a blowout. In such cases you would probably have to buckle a casing pipe without knowing it, causing a leak in the collars. Serious buckling does not happen often.
What is hook load in drilling?
1. n. [Drilling] The total force pulling down on the hook. This total force includes the weight of the drillstring in air, the drill collars and any ancillary equipment, reduced by any force that tends to reduce that weight.
What is the hook load?
Where should a hook have the load placed in it?
base
Center the load in the base (bowl or saddle) of the hook to prevent point loading of the hook. Do not place a side or back load on the hook. When using a device to bridge the throat opening of the hook, ensure that no portion of the load is carried by the bridging device.
