The Crown Vic front features heavy duty components, low cost and wide availability. The only downside of the Crown Vic front suspension is the track width… It is about 67″ wide as measured from hub / hub. While this is great for Taxis and Cop Cars, this is just to wide for older vehicles.
What year did Crown Victoria swap?
Donor Vehicle. Donor cars with the correct suspension for this swap are the 2003-2009 Crown Vics, Mercury Grand Marquis, and Lincoln Town Cars, as well as 2003-2011 P71s (Police Interceptors) and can be had for around $400-$750, depending on condition and location.
What are auto manufacturer made the Crown Vic subframe?
| Ford Crown Victoria | |
|---|---|
| Class | Full-size car |
| Body style | 4-door sedan |
| Layout | FR layout, body-on-frame |
| Platform | Ford Panther platform |
How wide is a 2003 Crown Vic front end?
2003 Ford Crown Victoria Specs
| Exterior Dimensions | 2003 Crown Victoria |
|---|---|
| Wheelbase | 114.7 |
| Track (front / rear) | 63.4/65.6 |
| Overall Length | 212.0 |
| Overall Width | 78.2 |
Is Crown Victoria front wheel drive?
The Ford Crown Victoria is a long-familiar, full-size sedan. Introduced as the LTD Crown Victoria in 1980, Ford dropped the LTD name in 1992 coinciding with an update. The Crown Victoria is a traditional rear-wheel drive sedan and the pursuit vehicle of choice for police departments throughout its lengthy model run.
How much horsepower does a 2006 Crown Vic Police Interceptor have?
Used 2006 Ford Crown Victoria Commercial Police Package Fleet LWB Specs & Features
| Engine | |
|---|---|
| Cylinders | V8 |
| Horsepower | 220 hp @ 4750 rpm |
| Torque | 265 lb-ft @ 4000 rpm |
| Turning circle | 40.3 ft. |
How much horsepower does a 2003 Crown Vic Police Interceptor have?
220 hp @ 4900 rpm
Used 2003 Ford Crown Victoria Specs & Features
| Engine | |
|---|---|
| Cylinders | V8 |
| Horsepower | 220 hp @ 4900 rpm |
| Torque | 272 lb-ft @ 4100 rpm |
| Turning circle | 40.3 ft. |
What transmission does a 2003 Crown Vic have?
The 2001–2004 CVPIs all look the same on the exterior; the way for one to tell the 2003–2011 cars apart from the 2001 and 2002 models is by examining the wheels….Second generation (1998–2011)
| Second generation | |
|---|---|
| Transmission | 4-speed 4R75W automatic 4-speed 4R70W automatic |
| Dimensions | |
| Wheelbase | 114.7 in (2,913 mm) |

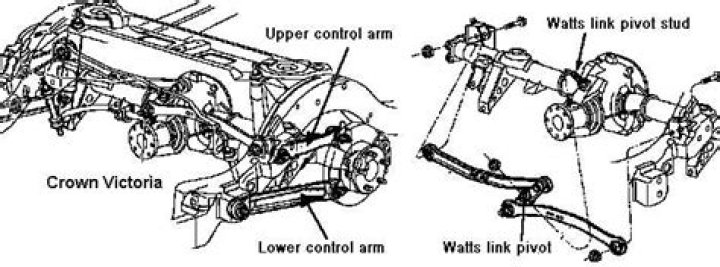

How do you swap a Crown Vic suspension?
It really takes the guess work out of doing this swap. Simply remove the front suspension and crossmembers, measure out and drill your alignment pin holes through the bottom of the frame. After that Jack up the new Crown Vic suspension and then make the cuts on the top of the frame and slide these brackets in and bolt it together.
Can you put Crown Victoria front suspension in an F-100?
The end result is a 48-year-old chassis with a modern IFS front suspension setup. Backyard Customz (ebay) offers an installation kit to help make installing the Crown Vic front suspension in to a F-100 easier. These brackets have been designed for dropping in a 2003+ Ford Crown Victoria front suspension into your F-100 pickup.
What are the brackets for a 2003 Crown Victoria front suspension?
These brackets have been designed for dropping in a 2003+ Ford Crown Victoria front suspension into your F-100 pickup. They are a set left and right. They are CNC cut out of 3/16″ mild steel, and have 1″ .120 wall tube for the (4) main mounting bolts to go through as well as the alignment pin hole on the bottom tab.
Why choose team321 for Your Crown Vic suspension?
The track width is reduced by 4 3/4″ to just over 62″ – which allows the low cost Crown Vic suspension to be used in a wider selection of vehicles. Team321 can provide everything from a base crossmember package to a complete front suspension.
