PC input generally involves one of the following five interface types: D-Sub for analog connections; DVI-D for digital connections; DVI-I, which is compatible with both analog and digital connections; and HDMI and DisplayPort, representing the new generation of interfaces for digital connections.
What does HDMI D-Sub mean?
D-Sub and DVI: standard interfaces for PC use. When used as a monitor interface, a D-Sub port is also known as a VGA port, an analog connection standard that’s been around for some time. The connector is a DE-15 connector with 15 pins in three rows, often referred to as a “mini-D-Sub 15-pin” or “D-Sub 15-pin” connector …
What is D-Sub cable used for?
D-Sub ports are used for connecting external devices to a computer. They are an older method of connection, but some modern computers still contain them. These ports are gradually being replaced by more efficient connection technology, such as USB and Thunderbolt.
Can I use HDMI cable in DisplayPort?
The HDMI specification does not support the DisplayPort LVDS signal type, and if the HDMI TMDS is plugged into a DP monitor, it will not work. The DisplayPort receptacle on a monitor or display will only accept the LVDS 3.3v DisplayPort signal type.
What is the symbol for DisplayPort?
DP
More than 180 product brands have adopted DisplayPort, and most products already using the DisplayPort logo have been tested. You will find a “DP” logo on notebook and desktop computers, displays, cables, adaptors, projectors, hubs, and more.
How do I get HDMI to DisplayPort to work?
2. Manually enable HDMI Input
- Make sure you have connected DisplayPort to HDMI adapter with the HDMI cable to your monitor.
- Press any of the control buttons on your monitor.
- Select the Menu icon.
- Use the arrow keys and navigate to Display.
- Select Input using the > key.
Is a DisplayPort the same as HDMI?
DisplayPort looks similar to HDMI but is a connector more common on PCs than TVs. It still allows for high-definition video and (in many cases) audio, but its standards are a bit different. DisplayPort 1.2: Supports up to 4K at 60Hz, some 1.2a ports may also support AMD’s FreeSync.
What does D sub mean on a cable?
The D-sub designation defines the physical structure of the connector, not the purpose of each line. Likewise, is D Sub or DVI better? DVI was purposely developed and designed to transmit video signals. In comparison, the D-sub connector is used for a much wider variety of applications.
What is the difference between HDMI and DVI and D-sub?
HDMI is audio and video (so you can use your monitors on board speakers if it has them without the need to wire it up from a sound card). DVI is video only. Both are digital signals so they give the best video quality. D-Sub is VGA, an old analogue signal standard, you can’t use this on a digital only monitor.
What is HDMI DisplayPort and Mini DisplayPort?
As the latest digital interfaces, the High-Definition Multimedia Interface (HDMI), DisplayPort, and Mini DisplayPort have attracted considerable attention. All standards offer the capacity to transfer both audio and video signals digitally using a single cable; all offer easy cable attachment and removal.

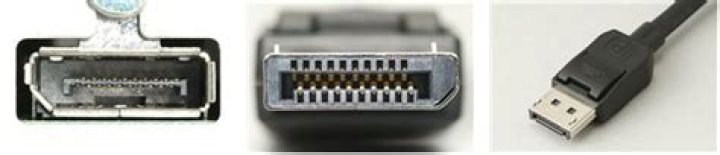

How many pins does a DisplayPort connector have?
The DisplayPort and Mini DisplayPort connectors have 20 pins and an asymmetrical (left to right) connector. (The HDMI standard also defines a 29-pin type-B connector compatible with resolutions exceeding 1080p.)
