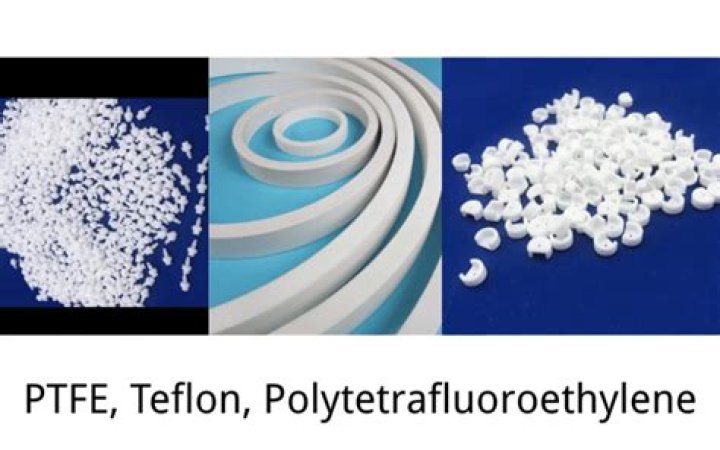

Discovered in 1938, Teflon was developed by the DuPont Co and managed by a spin-off of the company known as Chemours. Teflon is a synthetic polymer containing carbon and fluorine called polytetrafluoroethylene. That’s right, Teflon is PTFE but by another name.
Can PTFE be injection molded?
Since PTFE will not flow above its melting point, it cannot be injection molded and requires special processing techniques. Molded PTFE is processed by first compression molding the powder into preforms, and then sintering the preforms in a process analogous to sintered metal processing.
What is PTFE procedure?
Methods employed for coating with PTFE is to spray onto the substrate a dispersion of low molecular weight solids of PTFE suspended in a suitable liquid such as solvents or water, known as the carrier and then to evaporate the carrier. However, PFA (powder) coating can be deposited with additional thickness.
What is PTFE coating?
PTFE coatings, or Polytetrafluoroethylene are superior non-stick fluoropolymer coatings with a very durable thin film coating. These products have the highest operating temperature of any fluoropolymer and have an extremely low coefficient of friction, good abrasion resistance and chemical resistance.
Why is polytetrafluoroethylene called Teflon?
Therefore, to find out the cause of this phenomenon, he examined the inside of the bottle and noticed it was covered in a slippery, strong, and waxy material – it was Teflon. Teflon™ is a synthetic polymer, which is containing carbon and fluorine – this, therefore, makes it Polytetrafluoroethylene.
Which is better PTFE or Teflon?
Essentially, the only difference lies in the name. PTFE is the shortened name of the chemical polytetrafluoroethylene, and Teflon is the trade name of the same polymer. If you are looking for a highly flexible, non-stick material that is chemical, electrical and thermal resistant, look no further than PTFE.
What temperature is PTFE good for?
PTFE has useful mechanical properties from cryogenic temperatures at 500° F (280° C) continuous service temperatures. Its coefficient of friction is lower than almost any other material. It also has a high oxygen level.
Can PTFE be melted?
Unlike other thermoplastics, PTFE can only be cold-moulded. That is, you cannot melt PTFE and inject it into a mould to give a desired end-shape. The main reason for this is that PTFE does not flow when heated above its melting point.
Is polytetrafluoroethylene toxic?
Although in its polymeric form, PTFE is considered to be non-toxic and physiologically inert, with the rise in temperature greater than 260 °C, and PTFE resin produces polymer fumes into the working environment. With further increase in temperature to 350 °C, the fumes can cause polymer fume fever in exposed workers.
Can polytetrafluoroethylene be recycled?
Unirradiated PTFE scrap can be recycled into many other products and used for rods, tubing and sheets etc by pulverization followed by suitable heat treatments similar to that of virgin PTFE. The recycled PTFE is known technically as “Reprocessed” or “Repro” PTFE or mechanical grade PTFE.
Is polytetrafluoroethylene harmful to humans?
How Safe is PTFE? Unlike PFOA and PTFO, PTFE is not considered to be a health risk, but there’s still a lot of attention over its safety. After much research, it’s been determined that PTFE isn’t toxic and that’s it’s safe for human consumption.
Which is stronger nylon or Teflon?
Teflon, for example, is a hydrophobic material, while nylon is hydrophilic. As a result, any piece of machinery that requires greater lubrication should be constructed with Teflon rather than nylon, since Teflon’s water-repellant properties make it a stronger lubricant.
What is PTFE (polytetrafluoroethylene)?
Polytetrafluoroethylene (PTFE) is a fluoropolymer and is commonly known by its trade name, Teflon ®. Unique properties of PTFE include nonreactivity, hydrophobicity, a low coefficient of friction, and good insulating properties.
What is PTFE coating used for?
Polytetrafluoroethylene (PTFE) is a fluoropolymer and is commonly known by its trade name, Teflon ®. Unique properties of PTFE include nonreactivity, hydrophobicity, a low coefficient of friction, and good insulating properties. It is most commonly used as a nonstick coating for cookware.
When was PTFE made commercially available?
After that PTFE was made commercially available in 1947 with the trademark “Teflon™” from Chemours. It was the discovery of PTFE that accelerated the development of the other fluoropolymers. PTFE is available in granular, fine powder and water-based dispersion forms.
What are the properties of fillers in PTFE?
Fillers result in excellent properties of PTFE at low and high temperatures. Chemical properties well depend on type of filler used. In general, chemical properties of filled PTFE compounds are not as good as those of unfilled resin. The impact of fillers below 5% is low.
