At sea level, that pressure is approximately 14.7 PSI = 1.013 BAR = 1 ATM….The Difference Between Psi And Bar: Which Is Their Relationship With Atmospheres?
| Table of equivalences | ||
|---|---|---|
| 1 atm | 14.7 psi | 1.013 bar |
| 0.068 atm | 1 psi | 0.0689 bar |
| 0.98692 atm | 14.504 psi | 1 bar |

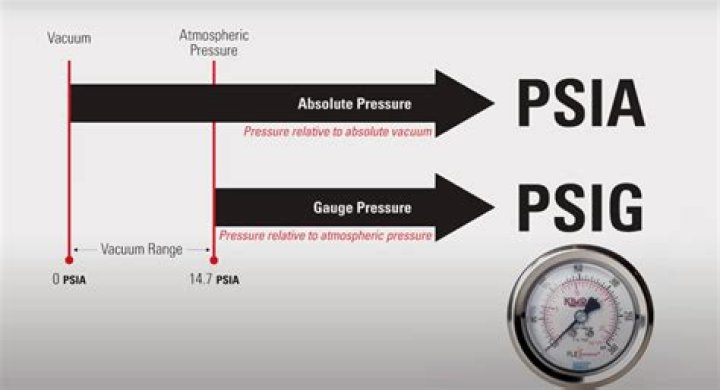

How do you convert vacuum pressure to absolute pressure?
Absolute pressure is the pressure (in psia) above a perfect vacuum and is equal to atmospheric pressure less negative gauge pressure. Other vacuum units are atmospheres, torr, and micrometers. To calculate atmospheres, divide absolute pressure in psia by 14.7.
What’s the difference between PSI and psig?
PSI: This term is short for “pound-force per square inch,” typically referring to gas or liquid. PSIG: This is the term used for PSI in relation to atmospheric pressure. PSIG is also known as Gauge Pressure. The ambient pressure at sea level is about 14.7 PSIA, but ambient PSIG is always 0.
How do you calculate bar psi?
There’s a simple relation between BAR and PSI: 1 bar equals 14.5038 psi. So just multiply or divide by 14.5038 to convert between BAR and PSI. You don’t need to know this to use this calculator, just some extra information for those interested: Both BAR and PSI are units of pressure.
What does bar in pressure mean?
The bar is a metric unit of pressure, but not part of the International System of Units (SI). It is defined as exactly equal to 100,000 Pa (100 kPa), or slightly less than the current average atmospheric pressure on Earth at sea level (approximately 1.013 bar).
Is PSI PSI or PSIG?
PSI stands for Pounds per Square Inch, whereas PSIG stands for Pounds per Square Inch Gauge. PSI is a measure relative to a vacuum. On the other hand, PSIG is a measure relative to the atmospheric pressure.
How many bar is full vacuum?
1 barg
A vacuum gauge measures pressure below the atmospheric pressure. Normally the atmospheric pressure is set as zero and the vacuum pressure is given in negative values, so -1 barg (-15 psig) means complete vacuum.
How many PSI is full vacuum?
14.7 PSIA
Vacuum pressure is measured relative to ambient atmospheric pressure. It is referred to as pounds per square inch (vacuum) or PSIV. The electrical output of a vacuum pressure transducer is 0 VDC at 0 PSIV (14.7 PSIA) and full scale output (typically 5 VDC) at full scale vacuum, 14.7 (0 PSIA).
How do I convert PSIA to PSIG?
Note that PSIG is always lower than PSIA. The formulas to describe the relationship are: PSIG + 1 atm = PSIA and PSIA – 1 atm = PSIG (where atm is atmospheric pressure). It is easy to calculate PSIA or PSIG or convert between the two.
What is bar in relation to PSI?
Psi and bar are two common units we use to measure pressure. Specifically, psi measures pressure or stress, whereas bar only measures pressure. When considering the relationship between two units, one psi equals 0.068 bar while one bar equals 14.50 psi.
