GaAs, direct bandgap material emits in infrared (870-900 nm). GaP has andirect band gap of 2.2 EV.
Why GaAs is used in LED?
GaAs devices generate less noise than most other types of semiconductor components. This is important in weak-signal amplification. Gallium arsenide is used in the manufacture of light-emitting diode s (LEDs), which are found in optical communications and control systems.
What will be the wavelength of the signal emitted by a GaAs diode?
But GaAs normally produces light with a wavelength of 0.85 micrometres, which is useful only for short-distance communications.
Which Colour is emitted by a diode made of GaAs and what is its wavelength?
Light Emitting Diode Colours
| Typical LED Characteristics | ||
|---|---|---|
| Semiconductor Material | Wavelength | Colour |
| GaAs | 850-940nm | Infra-Red |
| GaAsP | 630-660nm | Red |
| GaAsP | 605-620nm | Amber |
How do you find the wavelength of a band gap?
1 Answer
- as frequency ν=cλ ,therefore.
- h. cλ = 1.5 eV or.
- λ=h. c1.5eV.
What is the threshold voltage for GaAs diode?
1.2 V
Rather than the few VT we used in the semi-ideal diode discussion above, this value (called VON) is approximately 0.7 V for silicon, 0.2 V for germanium, and 1.2 V for gallium arsenide diodes. Yep, this is the potential barrier voltage, Vo, of the pn junction we talked about in Section A6.
Is gallium arsenide better than silicon?
Gallium arsenide is one such material and it has certain technical advantages over silicon – electrons race through its crystalline structure faster than they can move through silicon. But silicon has a crushing commercial advantage. It is roughly a thousand times cheaper to make.

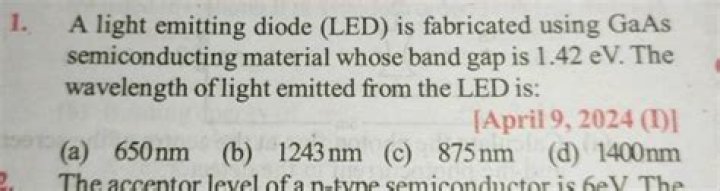

What is the wavelength corresponding to the bandgap of GaAs 1.42 eV approximately?
Since the 874 nm wavelength of the GaAs laser is shorter than the cut-off wavelength of 1130 nm, the Si photodetector can detect the 874 nm radiation (Put differently, the photon energy corresponding to 874 nm, 1.42 eV, is larger than the Eg, 1.10 eV, of Si which means that the Si photodetector can indeed detect the …
What is active region in GaAs system?
The total ‘light emitting layer D’ for GaAs is about 10 μm wide whereas ‘depletion layer d’ i.e. active region is of the order of 1 μm. The photons which penetrate into the inactive region do not stimulate further emission and thus reduce quantum efficiency (which is in present case about 10%).
What should be the basing off the LED?
5. What should be the biasing of the LED? Explanation: The LED works when the p-n junction is forward biased i.e., the p- side is connected to the positive terminal and n-side to the negative terminal. 6.
What wavelengths do LED lights emit?
The color of the emitted light depends on the semiconductor material and composition, with LEDs generally classified into three wavelengths: ultraviolet, visible, and infrared. The wavelength range of commercially available LEDs with single-element output power of at least 5 mW is 275 to 950 nm.
What is the wavelength of red infrared AlGaAs / GaAs led epi wafer?
PAM-XIAMEN offers 2inch or 4inch red infrared AlGaAs / GaAs LED epi wafer with wavelength 850-880 nm and 890-910nm: 1. Red Infrared AlGaAs / GaAs LED Epi Wafer 2. Where is the Red Infrared Wavelength? See below picture of Wavelength of Light, the visible light is 380nm-780nm, and the infrared light is highlight in red circle: 3.
What is the wavelength range of LEDs?
The wavelength range of LEDs Material Energy Band gap Eg ＠300K (eV) Wavelength (λ） Color GaAs 1.4 885 nm Infrared GaP 1.8 to 2.26 549 to 700 nm Green to red InGaAlP 1.9 to 2.3 539 to 653 nm Green to red InGaN 2.1 to 3.2 388 to 590 nm Ultraviolet to green
What is AlGaAs / GaAs epitaxy?
AlGaAs / GaAs epitaxy technology of PAM-XIAMEN’s epi wafer foundry for growing epi wafer materials includes molecular beam epitaxy (MBE) and metal organic compound vapor deposition epitaxy (MOCVD).
Why is the led specification for light intensity important?
The LED specification for light intensity is important. The light intensity is governed by a variety of factors including the LED chip itself (including the design, individual wafer, the materials, etc.) , the current level, encapsulation and other factors.
