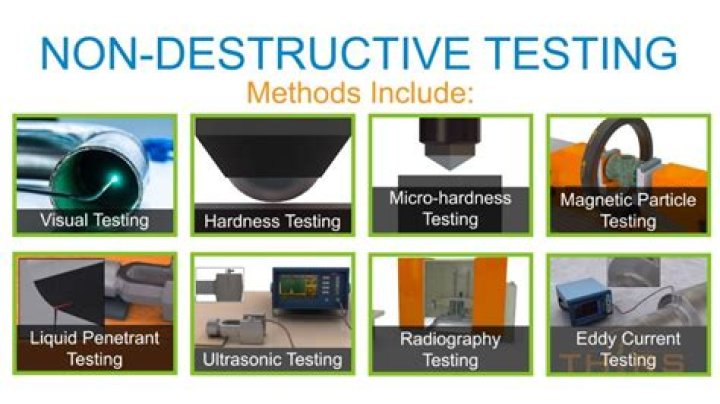

The six most frequently used NDT methods are eddy-current, magnetic-particle, liquid penetrant, radiographic, ultrasonic, and visual testing.

What is the purpose of nondestructive testing?

Non-destructive testing (NDT) is a testing and analysis technique used by industry to evaluate the properties of a material, component, structure or system for characteristic differences or welding defects and discontinuities without causing damage to the original part.

What are the important elements of nondestructive testing?

Element has one of the most comprehensive ranges of non destructive testing services.

  • Keeping you Safe with NDT.
  • Computed Tomography.
  • Radiographic Inspection (RT)
  • Eddy Current Testing (ET)
  • Liquid Penetrant Inspection (LPI)
  • Magnetic Particle Inspection (MPI)
  • Ultrasonic Testing (UT)
  • Visual Inspection.

What is the difference between destructive and nondestructive testing?

The difference between destructive and non destructive testing. Destructive testing is conducted by damaging the specimen that is being tested. In contrast, during non-destructive testing (NDT), the tested item does not suffer any physical damage and can be used in active operation after the testing.

What are the different types of nondestructive test methods for concrete and how it is performed?

5 Non-Destructive Testing Methods for Concrete

  • Rebound Hammer Testing. This test measures the surface hardness of an area of concrete and requires a tool called a Schmidt Hammer.
  • Penetration Testing.
  • Pull Out Testing.
  • Ultrasonic Pulse Velocity.
  • Radiographic Testing.

What are three types of ultrasonic inspection methods?

There are three basic ultrasonic inspection methods: pulse echo, through transmission, and resonance.

Why is NDE important?

NDT or NDE can be used to find, size and locate surface and subsurface flaws and defects. NDT plays a crucial role in everyday life and is necessary to assure safety and reliability. NDT techniques can then be used to monitor the integrity of the item or structure throughout it’s design life.

What are the different types of NDT?

Many different NDT methods are available in the industry, each of them having their own advantages and limitations, but six of them are most frequently used: ultrasonic testing (UT), radiographic testing (RT), electromagnetic testing (ET), magnetic particle testing (MT), liquid penetrant testing (PT) and visual testing …

What is DT and NDT?

Testing and Inspection of Oilfield Equipment. Destructive (DT) and Non-Destructive Testing (NDT)

What are the limitations of carbonation test?

Consequently, the phenolphthalein solution has limitations with regards to monitoring the carbonation depth, as it is not able to detect within the range where the loss of alkalinity begins, which can lead to a depassivation of the reinforcement, as it can occur from pH values lower than 11.8 [ 3.

Why rebound hammer test is done?

The rebound hammer method provides a convenient and rapid indication of the compressive strength of concrete by means of establishing a suitable correlation between the rebound index and the compressive strength of concrete.

What are the two techniques of ultrasonic inspection?

Ultrasonic testing can be performed using two basic methods – pulse-echo and through-transmission.
