While G commands describe positions, M code directs the machine’s actions. While M represents miscellaneous codes, some refer to it as machine code because it controls particular operations of the equipment. Both G and M codes have specialized uses in programming a CNC machine.
What is G code and M-code?
G codes are geometric codes, while M codes are related to the machine functions. G-code is for product design while M-code is related to stop/start machines. G-code activates the Numerical Control(NC) machine while the M-code activates the PLC of the machine.
What is G code example?

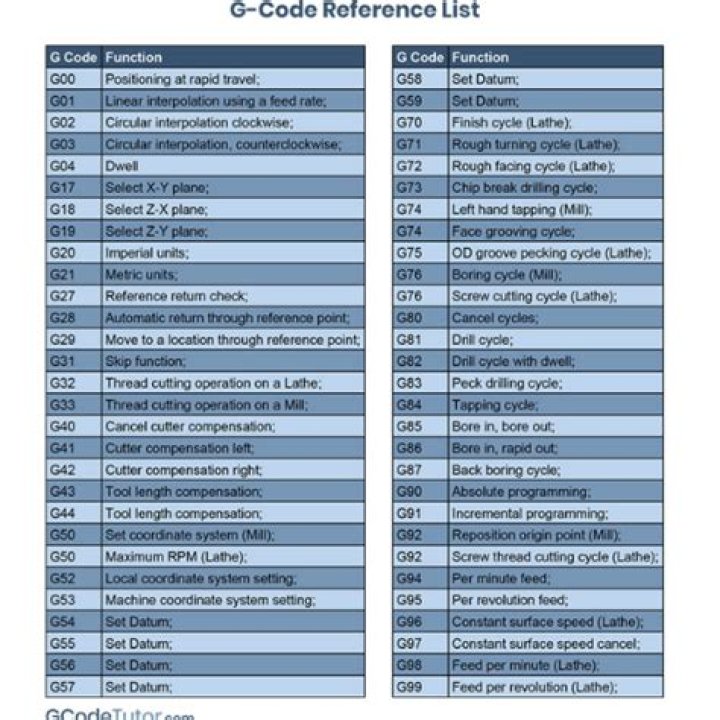

Here are some examples of G-code: G00: Rapid move to specific coordinate position. G01: Linear feed move. G02/G03: Clockwise/counterclockwise feed move.
Why M codes are used explain with examples?
The definition of M-code functions and their uses is spelled out by the machine’s manufacturer. Operators use M-codes to tell a machine to change tools, turn on the spindle, load coolant, or open and close a door. The particular method for a machine is clearly laid out in the instructions from the manufacturer.
What are the M codes?
Table 2 – M-Codes Command Summary for Milling Operations
| M code* | Description* |
|---|---|
| M00 | Program stop |
| M01 | Optional program stop |
| M02 | End of program |
| M03 | Spindle start forward CW |
What is the meaning of M code?
M-code (for “miscellaneous function”) is an auxiliary command; descriptions vary. Many M-codes call for machine functions like “open workstation door,” which is why some say “M” stands for “machine”, though it was not intended to.
What is difference between G codes and M code?
G codes direct the machine’s motion and function, while M codes direct the operations outside movements. The G code activates the CNC machine while the M code activates the machine’s programmable logic controller.
What is the main difference between CNC and VMC?
What is the Difference Between a CNC and VMC? There is no difference between the two machines. A VMC is a machine with a CNC (Computer Numerical Control) controller.
What is M in M code?
The M in M-code tells the machine that a miscellaneous command follows. For instance, M03 starts the spindle and is generally preceded by an S code to set the speed. The following partial list of M-codes, shown below as examples, is for Fanuc controllers.
What is M code full form?
G-code (or G programming language) is the street name for the most widely used numerical code programming language. M-code (for “miscellaneous function”) is an auxiliary command; descriptions vary. …
What is difference between G code and M code?
What is the importance of G codes in part programming?
G-code is a programming language for CNC (Computer Numerical Control) machines. G-code stands for “Geometric Code”. We use this language to tell a machine what to do or how to do something. The G-code commands instruct the machine where to move, how fast to move and what path to follow.
What is the difference between G-code and M-code?
M (miscellaneous) codes are command for machine functions like speed, coolant, etc. 2)G-code is based on CNC part or product design, M-code is mainly related to switch machine off/on. 3)G-code activates the numerically controlled machine, M-code activates the PLC of the machine. How to Write the G-Code and More Introductions
What are some examples of G code for milling machines?
G-Code Examples for Milling Machines boomerangv4.ncc: 3D profiling job on a boomerang. Griffin Relief.ncc: 3D profiling job for a gryphon logo. HomeSwitchRearPanelEngrave: A control panel for my CNC electronics.
What is G-code in CNC machining?
G-code, which is a kind of function used for CNC machining, refers to a list of preparatory codes begin with the letter “G” in CNC programming language, to position a tool and give commands. G-codes need to work with other codes, like M-code, for completing the desired tasks.
How can I generate G-code examples for free?
Our G-Wizard Editor Software has a free built-in Conversational Programming Module you can use to generate all sorts of g-code examples. Do You Have Some Cool G-Code?
