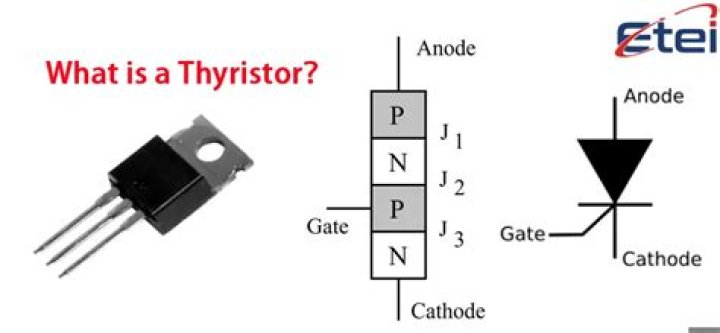

A power thyristor is the three terminal, bi-stable device, with alternating p- and n-layers in its structure. If the thyristor is closed there is no voltage drop between the cathode and anode. If the thyristor is open, there is no current though the anode.
What is a diode thyristor?
SCR (Thyristor) It is an uncontrolled semiconductor switch that converts AC into DC. It is a controlled semiconductor switch that converts AC into DC. It has two terminals Anode and Cathode.
What is a power diode used for?
A power diode is a crystalline semiconductor device, made primarily of silicon, used mainly to convert alternating current (AC) to direct current (DC), a process known as rectification.
Is thyristor same as diode?
The main difference between diode and thyristor is that diode has 2 terminals and used as a rectifier for converting AC to DC and as a switch. While thyristor has 2 terminals and operates as a switch. Both diode and thyristor are semiconductor devices and constructed with the combination of p and n types of materials.
Why are thyristors used?
Thyristors are mainly used where high currents and voltages are involved, and are often used to control alternating currents, where the change of polarity of the current causes the device to switch off automatically, referred to as “zero cross” operation.
What are the types of thyristors?
Kinds of Thyristors
- Inverter Thyristors.
- Asymmetrical Thyristors.
- Phase Control Thyristors.
- Gate Turn-Off Thyristor (GTO)
- Light-Triggered Thyristors.
What are thyristors used for?
How do thyristors work?
Thyristor are current operated devices, a small Gate current controls a larger Anode current. Conducts current only when forward biased and triggering current applied to the Gate. The thyristor acts like a rectifying diode once it is triggered “ON”.
How does a power diode work?
The operating principle of power diode is same as the conventional PN junction diode. A diode conducts when the anode voltage is higher than the cathode voltage. The forward voltage drop across the diode is very low around 0.5V to 1.2V. In this region, the diode works as a forward characteristic.
What is the difference between diode and power diode?
Both Normal diode and Power diodes are uncontrolled devices because their On/Off situation depends upon the external circuit used. Normal diodes are used in small-signal applications whereas power diodes are used for high voltage and current applications such as in inverters.
Which is better diode or thyristor?
We know both diode and thyristor are semiconductor devices formed by the combination of p and n type semiconductor material….Comparison Chart.
| Basis for Comparison | Diode | Thyristor (SCR) |
|---|---|---|
| Power handling ability | Good | Better |
| Operating Voltage | Low | Comparatively high |
| Cost | Less expensive | More expensive |
Why do we use thyristor instead of diode?
When used in rectifier circuits, thyristors allow current to be controlled more accurately than diodes, which can only be ON or OFF. A thyristor can be triggered to allow current to pass in a graduated manner, by firing (switching on the thyristor) at a precise time, therefore controlling the conduction angle.
What is the difference between thyristor and diode?
Thyristor has four layers of them whereas diode has only two layers of the semiconductor device.
Is thyristor a current controlled or voltage control device?
The primary function of a thyristor is to control electric power and current by acting as a switch. For such a small and lightweight component, it offers adequate protection to circuits with large voltages and currents (up to 6000 V, 4500 A).
What is the difference between the SCR and thyristor?
Thyristor also called SCR stands for silicon controlled rectifier while TRIAC stands for triode for alternating current.
What is thyristor and how it works?
Thyristor blocks voltage in both forward and reverse direction and thus a symmetric blocking is formed.
