Plastic Intalox Saddle is a combination of the ring and the saddle, which benefits the advantages of the two. This structure helps liquid distribution and enlarges the quantities of gas holes. The Intalox Saddle Ring has less resistance, bigger flux and higher efficiency than the Pall Ring.
When working with ceramics what is a saddle?
Ceramic saddles is one of the most used packing type in heat transfer applications and corrosive environments. The ceramic saddles offer high resistance to chemical attack and thermal shock. To improve efficiency and capacity, ceramic super saddles have been developed. …
What is Intalox saddle?

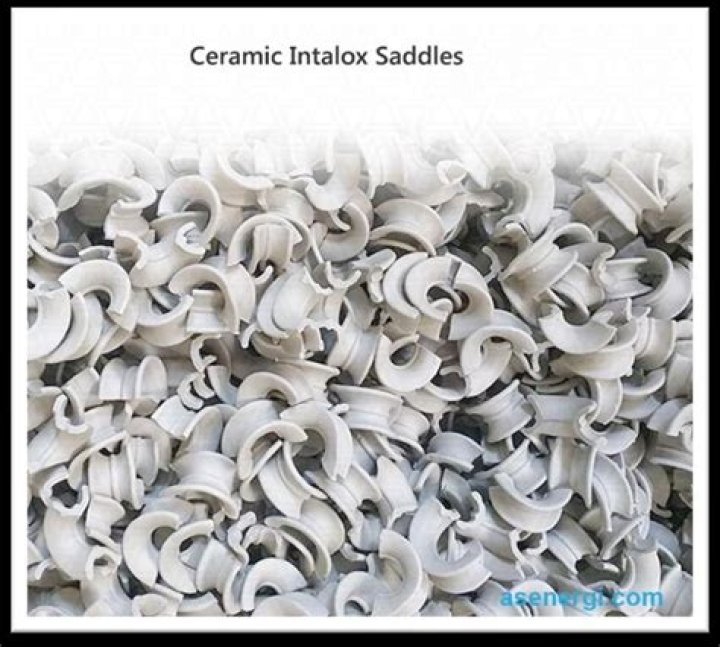

Ceramic Intalox Saddle Rings (Ceramic Saddles, Intalox Torus Ceramic Saddles, also named as Ceramic Saddle Ring) are one of the types of industrial packing. They are made of electrotechnical ceramics and are used to fill the packed columns and other heat and mass transfer equipment with the invasive environment.
What is ceramic packing?
Ceramic structured packing has similar structure with grid structured packing, which is composed of several smooth surface corrugated sheets in 60° or 45°. Additional, ceramic structured packing has high separating efficiency, low pressure drop, increased operating elasticity and maximum liquid treatment.
What was the purpose of the porcelain saddles used in the fractional distillation?
Saddles provide a highly useable surface area, lower gas flow resistance and excellent internal distribution.
What is Intalox?
How do you calculate packing factor?
Simply take the length of the line covered by circles, and divide by the total length of the line. The maximum packing factor is 1, which means 100% of the line is occupied by a circle.
What is the requirement of a good column packing?
The principal requirements of a packing are that it should: Provide a large surface area: a high interfacial area between the gas and liquid. Have an open structure: low resistance to gas ow. Promote uniform liquid distribution on the packing surface.
What do Pall rings do?
Pall Rings are often used in absorption and distillation services. High Performance Saddle-Ring – Saddle Ring Packing may replace Pall Rings to deliver better efficiency and capacity in the same bed height and diameter. They can increase efficiency by 25% or capacity by 15%.
What is packing fraction formula?
Packing Fraction Formula =Volume Occupied by all constituent particlesTotal Volume of Unit Cell. There is always some space inside a cell, and this is known as Void Space. It can be derived as follows: Void Space Fraction: 1- Packing Fraction. Percentage of Void Space: 100 – Packing Efficiency.
What is a Super Intalox ® saddle random packing?
Generally, Super INTALOX ® saddles random packing are favored by designers and industries that once used ceramic saddles but now want the superior performance of plastic Super INTALOX Saddles.
Why choose Intalox torus saddles?
They are highly resistant to thermal shock or chemical attack. Intalox Torus Saddles made of acid resistant ceramic and used as filling in drying tower, intermediate absorber, final absorber of sulfuric acid regeneration unit. Our company is engaged in the production and sale of ceramic packing, including Intalox ceramic saddles.
What are ceramic Super saddles?
JINTAI Ceramic Super saddles (equivalent to Koch-Glitsch SUPER INTALOX SADDLES) are widely used as Regenerative Thermal oxidizers, Acid Gas Scrubbers, Dryer Towers, Tail Gas Scrubbers and Impasse Towers. Specification of ceramic super saddles:
Why is the demand for Intalox salile packing increasing?
The demand of our intalox salile packing has obviously increased over time to which everything can be owed to the unique intalox saddles packing factor which obviously shows the highest quality of both material and performance.
