AM transmitters and receivers are less complex than FM and PM, but synchronization is needed in the case of SSBSC carriers. FM (or PM) transmitters are more complex than AM because the variation of modulating signal has to be converted and detected from the corresponding variation in frequencies.
What is modulation AM FM and PM?
In FM, the instantaneous change in the carrier frequency is proportional to the amplitude of the modulating signal; in PM the instantaneous change in the carrier frequency is proportional to the derivative of the amplitude of the modulating signal.
What is FM and PM?
Comparison Of FM & AM Signals. FM – Frequency Modulation. Need For Modulation. Phase Modulation – PM. Pulse Modulation – PM.
What is difference between narrowband FM and amplitude modulation?
It uses the amplitude frequency many times to control the signals by radio carrier. The quality of the original signal on the receiver is poorer….Disadvantages of Amplitude Modulation.

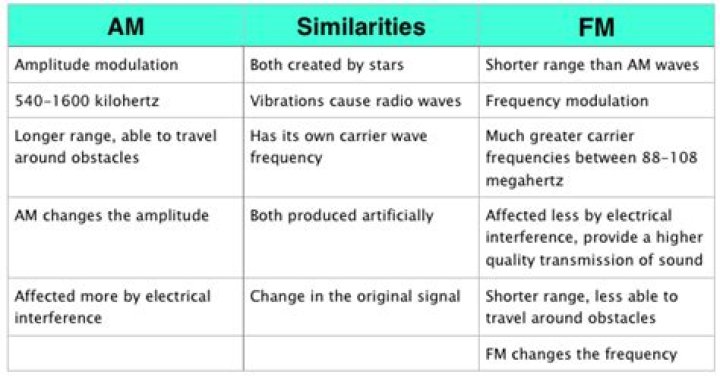

| Amplitude Modulation | Frequency Modulation |
|---|---|
| Susceptible to noise and interference | Less susceptible to noise and interference |
How PM is generated from FM?
FM signals can be generated either by using direct frequency modulation, which is achieved by inputting a message directly into a voltage-controlled oscillator, or by using indirect frequency modulation, which is achieved by integrating a message signal to generate a phase-modulated signal, which is then used to …
What is FM modulation index?
The modulation index of FM is defined as the ratio of the frequency deviation of the carrier to the frequency of the modulating signal. mf = Modulation Index of FM = ∆f/fm.
What is PM in communication?
Phase modulation (PM) is a modulation pattern for conditioning communication signals for transmission. It encodes a message signal as variations in the instantaneous phase of a carrier wave. Phase modulation is one of the two principal forms of angle modulation, together with frequency modulation.
How FM is generated from PM?
What is modulation and modulation index?
Modulation index describes the extent to which modulation is done on a carrier signal. In an amplitude modulation, it is defined as the ratio of the amplitude of modulating signal to that of the carrier signal.
What is the difference between FM and PM (phase modulation)?
PM (Phase Modulation) :- In PM, phase angle of carrier signal is varied in accordance with message signal. Well, FM & PM both are very similar to each other. In PM, phase angle varies linearly with modulating signal, while in FM, phase angle varies linearly with integral of modulating signal.
What is the difference between PMpm and FM?
PM produces two tones of different pitch, and alternates between them. Spectrogram view looks like a square wave. The difference? FM seems to read the absolute level of modulating waveform for modifying pitch of the carrier wave.
What is the formula for FM modulation?
FM: For tone modulation: Modulation index, C = %f/fm BW = 2(kfAm + fm)
What is the maximum frequency deviation in phase modulation?
But, in PM, the maximum frequency deviation occurs at the point deviation occurs near the zero crossing points of the modulating signal. Thus, although the phase modulation produce FM, the maximum deviation occurs at different points of a modulating signal. 3.
