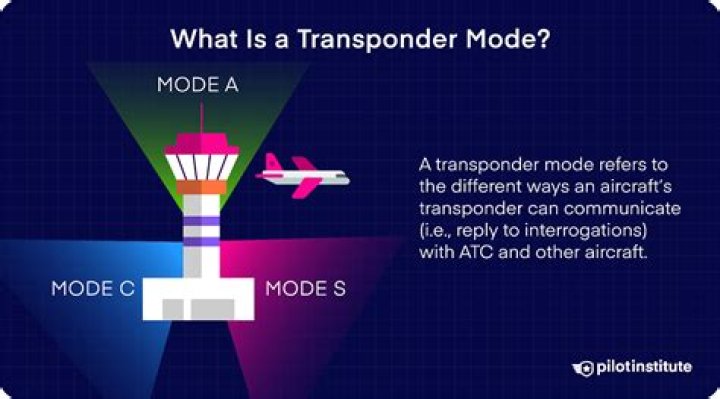

Mode A, C, S and Ident

  • Mode A equipment transmits an identifying code only.
  • Mode C equipment enables the ATCO to see the aircraft altitude or flight level automatically.
  • Mode S equipment has altitude capability and also permits data exchange.

What is transponder Mode C?

When the transponder receives a radar signal it sends back a transponder code (or “squawk code”). A transponder code can be paired with pressure altitude information, which is called “Mode C”. Mode 3A and C are used to help air traffic controllers to identify the aircraft and to maintain separation.

What does the Mode C part of your transponder do?

Mode C altitude transmissions are independent of the barometric altimeter. ATC will most likely ask you to “stop altitude squawk” if your indicated altitude and the altitude received by ATC differ by 300 feet or more. The transponder transmits pressure altitude to ATC in 100-foot increments.

What transponder mode is used by TCAS?

Mode S transponder
The Mode S transponder is also used to provide air-to-air data exchange between TCAS-equipped aircraft so that coordinated, complementary RAs can be issued when required.

What is the difference between ads-B and Mode-S?

Mode S operates in the same radio frequencies (1030 MHz and 1090 MHz) as conventional SSR systems. ADS-B broadcasts parameters extracted from on-board avionics via Mode S 1090 MHz Extended Squitter data link at regular and frequent intervals.

Is ADS-B part of Mode-S?

Last, one special frame format within the Mode-S protocol, so called DF-17, became introduced to indicate the position of the aircraft and some more information. In fact ADS-B is only one message within Mode-S. It requires 2 DF-17 frames to calculate the position unambiguous, the so called even and odd formats.

What does Mode S stand for?

Mode S is a Secondary Surveillance Radar process that allows selective interrogation of aircraft according to the unique 24-bit address assigned to each aircraft. Recent developments have enhanced the value of Mode S by introducing Mode S EHS (Enhanced Surveillance).

What is the difference between ads-B and Mode S?

Do you need Mode C above 10000?

However, if you wish to operate in class A, B, or C airspace, or at an altitude of over 10,000′ MSL, or within a 30 nautical mile radius of the primary airport in class B airspace, you will need a transponder and altitude encoder (commonly referred to as “mode C”).

Can TCAS Detect Mode A transponder?

TCAS and its variants are only able to interact with aircraft that have a correctly operating mode C or mode S transponder. A unique 24-bit identifier is assigned to each aircraft that has a mode S transponder.

Is Mode S mandatory?

All State aircraft operating IFR/GAT in Europe are required to carry and operate Mode S Level 2s transponder(s) with Mode S Elementary Surveillance (ELS) capability by 7th December 2017.

What is the correct transponder status on IVAO?

Transponder status The transponder has two settings on IVAO: STBY (associated with the orange spot) TX (associated with the green spot) can be considered as ALT real mode. On the image below, you can see that the transponder mode is set to TX mode.

What type of transponder is ivivap?

IvAp shall be considered as a type mode S transponder on the IVAO network. Other modes can be programmed when filling the flight plan using the adequate letter. Transponder status

Can you disappear from the IVAO radar?

During formation flights, only the leader has to set his transponder on TX. The other aircraft must maintain visual contact with the leader and will keep their transponder on the STDBY position. There is no OFF mode in IVAO transponder equipment. Equipment lower position is always standby. In conclusion, you cannot disappear from the IVAO radar.

What are the different transponder switch modes?

The transponder mode S is the most widely used mode. A transponder switch usually has several positions: OFF : The “OFF” position will power down the transponder. STBY: The “STBY” position will power the transponder and make it ready for operation (warming up).
