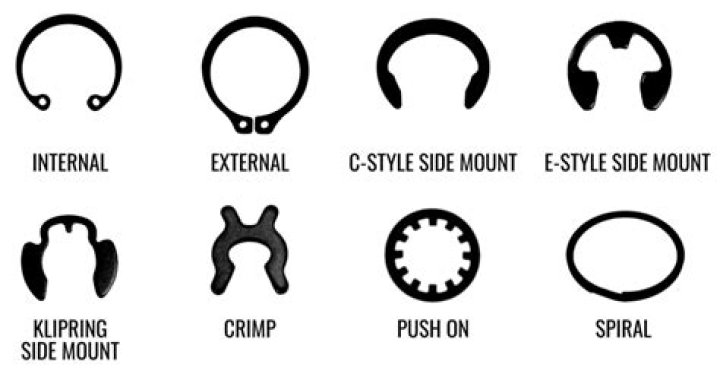

Types of Retaining Rings

  • Tapered section. Axially assembled. Inverted. Beveled. Bowed. Radially assembled. Self-locking.
  • Constant section.
  • Spiral.
  • Circular push-on.

What are C clips used for?

Usage: Circlips, C-clips, Jesus clips or Seeger rings are essentially a type of fasteners, which are most commonly used to keep dowel pins in place, in machine grooves. Circlips allow rotation but restrict the lateral movement of shafts and dowel pins.

What are e rings used for?

The E Type Snap Ring (also known as the “E-Ring”) provides wider surface areas. They fit on shafts or tubes that have grooves on them. E-Rings are also ideal for shafts with smaller diameters.

What are the two types of retaining rings?

There are four main types of retaining rings available, each of which may then be broken down into sub-types depending on unique application needs:

  • Tapered section. Axially assembled. Inverted. Beveled. Bowed. Radially assembled. Self-locking.
  • Constant section.
  • Spiral.
  • Circular push-on.

What is a shaft ring?

: a decorative annulet on the shaft of a column.

What is E clip used for?

E-clips are a type of tool used for projects including car engines and locking mechanisms. They resemble an “E” shape, and they have 1 side with an opening. E-clips are large retaining rings, and retaining rings hold parts onto a shaft when installed into a groove.

What is a retainer clip?

Now, these retainer clips are what connect the key cap to the keyboard and are responsible for the “scissor” action that allows the up/down travel of the laptop key. The retainer clip is also known as a “hinge” because of this behavior.

What is a wheel bearing retainer?

The purpose of the wheel bearing retainer is to hold the axle and bearing secure in order to provide your wheels with reliable rotation. Unfortunately, this component can become worn out, which could impede the smooth and safe rotation of your tires.

What is a seal retainer?

Seal Retainer. Seal Retainers, having of which of desired specification, is a prime requirement in automobile industry. An oil seal retainer comes in numerous forms of diverse usage such as crack shaft oil seal retainer which is used in the crank shaft of an engine, fitted in tractor, to retain heavy oil pressure of the crank shaft.
