Structural steel beams and girders are available in three shapes: standard or “S” beams, wide flange or “W” beams, and pile or “H” beams.

What are the types of beams?

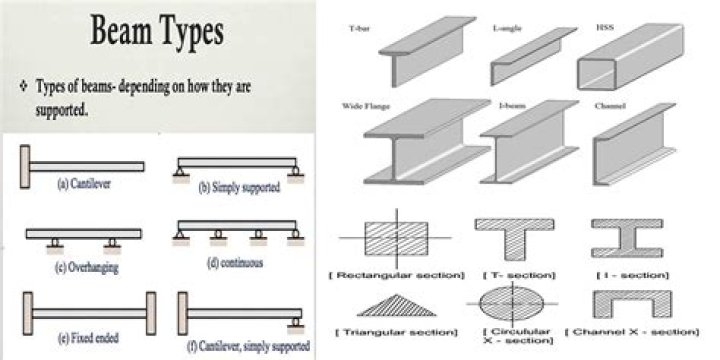

Types of beam structure

  • Continuous beams. A continuous beam is one that has two or more supports that reinforce the beam.
  • Simply supported beams. Simply supported beams are those that have supports at both end of the beam.
  • Fixed beams.
  • Overhanging beams.
  • Cantilever beam.

What type of steel is best for beams?

A36 is a widely preferred and versatile low-carbon low-cost steel known for its yield strength (36,000 psi) and excellent machinability. A36 can elongate to about 20% of its original length, and is commonly used for columns, beams, decking and finish elements.

What are the types of beam used in a steel structure?

The Various Types of Structural Steel Shapes

  • American Standard Beam (S-Shaped) Generally known as an S beam, the American standard beam has a rolled section with two parallel flanges, all connected by a web.
  • Angle (L-Shaped)
  • Bearing Pile (H-Shaped)
  • Channel (C-Shaped)
  • Hollow Steel Section (HSS)
  • I-Beam.
  • Pipe.
  • Tee.

What is a steel S beam?

The American Standard S-Beam is a type of I-beam that resists bending and shear loads and is commonly used in construction, shipbuilding, and other industries. An S-beam has roughly the same profile as an I-beam, but instead of horizontal flanges, it has tapered flanges that slope away from the inside surface.

What is the difference between an S beam and AW beam?

First, wide flange steel beam has parallel flanges while S-shaped I beam has tapered flanges which have a slope on the inside surface. Second, for the wide flange beam, the width of web and flange is almost equal, while for the S beam, the flange is a lot narrower than the web.

What shape of beam is strongest?

The triangle is the strongest to as it holds it shape and has a base which is very strong a also has a strong support. The triangle is common in all sorts of building supports and trusses. The overall shape of many bridges is in the shape of a catenary curve.

Which is stronger I beam or H beam?

An H beam has a thicker central web, which means that it is generally stronger. An I beam generally has a thinner central web, which means that it is often not able to receive as much force as an H beam.

What is an L beam?

A beam whose section has the form of an inverted L; usually placed so that its top flange forms part of the edge of a floor.

What is an M beam?

Miscellaneous (M) Beams provide an exceptional low weight-per-foot hot rolled solution. Primarily used in the frames of manufactured homes and recreational vehicles (RVs), this product is also utilized in purling applications and for steel dunnage.

What are the different types of I-beams?

At Texas Iron & Metal, we offer a wide variety of standard I-beams, also lighter junior beams, ranging from 4.4 lbs per foot all the way up to standard I beams up to 121 lbs per foot. We also offer I-beams in a variety of web and flange thicknesses, from 0.114″ to 1.060″. If you have any questions, members of our team are happy to assist you.

What are iron beams?

Iron Beam (Hebrew: קֶרֶן בַּרְזֶל‬, keren barzel) is an air defense system which is in development by Israeli defense contractor Rafael Advanced Defense Systems.

What are the different types of beams used in building construction?

In this article, different types of beams used in building construction will be discussed based on their manner of support, cross-section shape (profile), length, and material. 1. Simply Supported Beam 2. Fixed Beam 3. Cantilever Beam 4. Continuous Beam 5. Reinforced Concrete Beams 6. Steel Beams 7. Timber beams 8. Composite Beams 9.

What are the different steel beam cross-section shapes?

Steel cross sectional shapes include: There are various steel beam cross-sectional shapes. Each cross-sectional shape offer superior advantages in a given condition compare with other shapes. Square, rectangular, circular, I-shaped, T-shaped, H-shaped, C-shaped, and tubular are examples of beam cross-sectional shapes constructed from steel.
