tMap supports more types of join model, includes unique join, first join, and all join.

Which is the basic join model in tMap?

The default Join Model is Left Outer Join, that is, if no matching row appears in the look-up input, rows from the primary input will still be output.

Which join type can be used to return rows that only appear in both tables Talend?

Generally, Talend Joins performs Left Join (default) and Inner Join. However, by interchanging the two tables, we can also perform the Right join. Inner Join: Returns only matching records from both the tables.

What is inner join in Talend?

Mapping data sources using inner join tMap is a transformation component that allows you to do joins. Both inner joins and outer joins are supported. In this procedure, you will learn how to do an inner join on tMap and manage the matched and rejected data.

What is tMap in Talend?

tMap is an advanced component, which integrates itself as plugin to Talend Studio. Purpose. tMap transforms and routes data from single or multiple sources to single or multiple destinations.

How do you inner join in Talend?

Procedure

  1. Set an explicit join between the main flow Row1 and the lookup flow Row2 by dropping the id column of the Row1 table to the id column of the Row2 table.
  2. Perform an inner join between the two incoming data flow, and generate two output tables, one table for the matched rows, and another for the unmatched rows.

Which join type can be used in a tMap component to return rows that appear only in both tables?

In contrast, you can configure the join in tMap as an inner join, which only displays rows where the join condition is satisfied.

What is the compiled code generated by Talend Studio?

In essence, a component within a Talend job consists of generated Java output code in the form of a snippet. The generated Java output code originates from the template (JET) files. Whenever you drag a component to the job canvas and save the actual job, the Java code is compiled automatically.

What is tMap used for?

tMap is one of the core components and is primarily used for mapping input data to output data, that is, mapping one Schema to another. As well as performing mapping functions, tMap may also be used to Join multiple inputs, and to write multiple outputs. Additionally, you can Filter data within the tMap component.

What is tMap certification?

The training course “TMAP: Organizing built-in quality at scale” enables professionals that are responsible for organizing quality engineering to acquire necessary knowledge and skills to enable teams to achieve this. This is a 3-day training course with a separate exam of 1,5 hours.

Why is Talend called a code generator?

Once the task gets over, Talend Studio mechanically will interpret it into the Java category at the backend. Every element of very Job is split into three elements of Java code (begin, main and end). This can be the reason why the Talend studio is named a code generator.

How to join two tables in Talend using TMap?

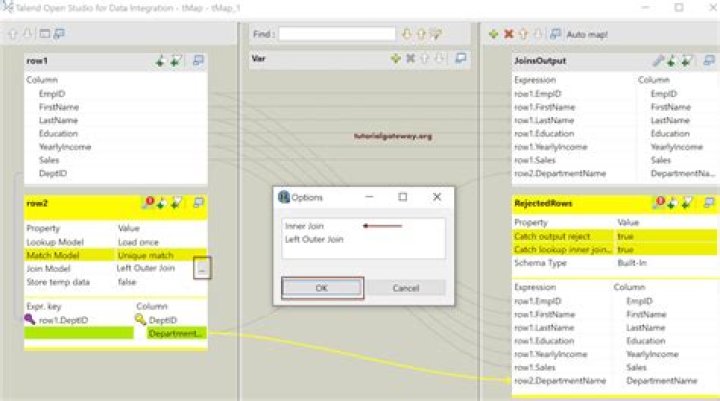

Here, we join two SQL tables using the tMap field and perform Inner Join and Left Join. The following screenshot shows the DupEmployees table data. In this Talend tMap Joins example, drag and drop the DBConnection and tDBCommit to establish a connection to SQL and to close the same.

Which types of joins are supported on TMap?

Both inner joins and outer joins are supported. In this procedure, you will learn how to do an inner join on tMap and manage the matched and rejected data. In this example, there are two data sources: a text file named in.txt and a table named person in a Mysql database. The data of each data source are read as follows:

How to join two tables using TMAP and tlogrow?

Set the id column as key column. Double-click the two tLogRow components and select the Table (print values in cells of a table) check box. Double-click the tMap component to open its editor. Set an explicit join between the main flow Row1 and the lookup flow Row2 by dropping the id column of the Row1 table to the id column of the Row2 table.

How does the join work with external columns?

The join will get rows, including the external columns from the lookup table, if the id already exists in the table, and will reject rows if the id does not exist in the table.
