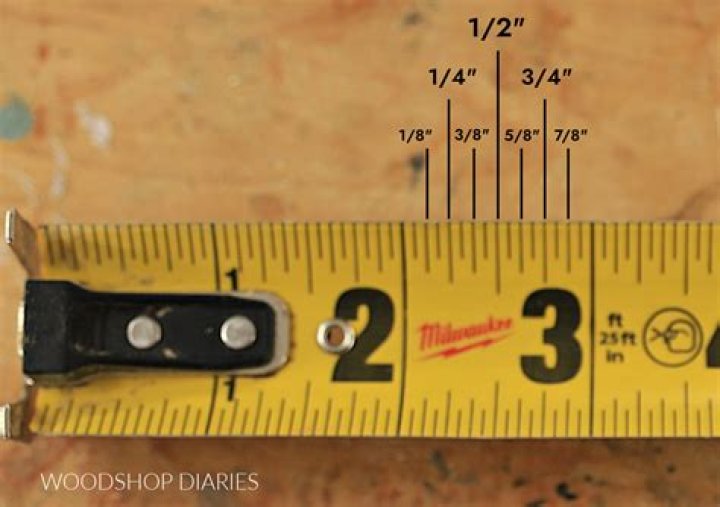

On every tape measure, there are both small and large tick marks and sometimes numbers. The biggest tick mark usually denotes inches, the second biggest denotes 1/2 inches, and so on. The largest numbers correspond to inches, with fractions of inches being in between each of the largest numbers.
How do we read and write measurements?
How to Read a Tape Measure
- Find/read the markings. On a standard tape measure, the biggest marking is the inch mark (which generally has the biggest number, if it has them).
- As the increments decrease, so does the length of the mark.
- Read 1 inch.
- Read one-half inch.
- The remaining markings follow a similar pattern.
Why is every 16 inches marked on a tape measure?
Some tape measures have markings that divide each inch into thirty-seconds of an inch. The red indicates 16-inch-on-center spacing. This is a common framing spacing for wall studs, floor joists and common roof rafters.
Where is 3 16th on a ruler?
The very first line on the left hand side of the ruler is the 1/16 of an inch mark. Between 0 and 1 inch, there are marks that denote 1/16, 2/16 (or 1/8), 3/16, 4/16 (or 1/4), 5/16, 6/16 (or 3/8), 7/16, 8/16 (or 1/2), 9/16, 10/16 (or 5/8), 11/16, 12/16 (3/4), 13/16, 14/16 (or 7/8), 15/16, 16/16 (or 1) of an inch.
What do the red numbers mean on a tape measure?
As you extend the tape measure, you’ll probably see the numbers 16, 32, 48, 64, 80, 96 and so forth in red. The red indicates 16-inch-on-center spacing. This is a common framing spacing for wall studs, floor joists and common roof rafters.
How many quarters are in a 16th?
There are 4 sixteenths in one-fourth. To find how many sixteenths are in one-fourth, we need to divide 1/4 by 1/16.
Where is 5/16th on a ruler?
How thick is 1/16th of an inch?
Conversion table inches to mm
| Dimensions — Inches to Metric | ||
|---|---|---|
| Decimal Inches | Fractional Inches | Metric |
| 0.031” | 1/32” | 0.79 mm |
| 0.062” | 1/16” | 1.57 mm |
| 0.125” | 1/8” | 3.18 mm |
How do you measure sixteenths of an inch on a tape?
Use the tiny, densely-packed marks for sixteenths of an inch. The shortest lines of all on most measuring tapes are the sixteenth-inch marks. There are 16 of these tiny marks per inch — four in each quarter-inch. Note that some very precise measuring tapes will mark down to one-thirty-second of an inch or even one-sixty-fourth of an inch!
What is the easiest way to read tape measurements?
Reading a tape measure in inches is the easiest and most obvious measurement. The next easiest measurements to read are typically the ½ inch, ¼ inch, and ¾ in. Here are some general features of these measurements: Full inch on a tape measure is numbered and in bold
What are the shortest lines on a measuring tape?
The shortest lines of all on most measuring tapes are the sixteenth-inch marks. There are 16 of these tiny marks per inch — four in each quarter-inch. Note that some very precise measuring tapes will mark down to one-thirty-second of an inch or even one-sixty-fourth of an inch! Use the same pattern for recognizing these miniscule measurements.
How do you read a tape measure with fractions?
When reading a tape measure, find the closest whole inch to the end point. Then examine leftover indicator lines to see what fractions of an inch remain. Add those to the whole inches for your total measurement. To read an inch, look for the large numbers. That number is usually in bold, black type.
