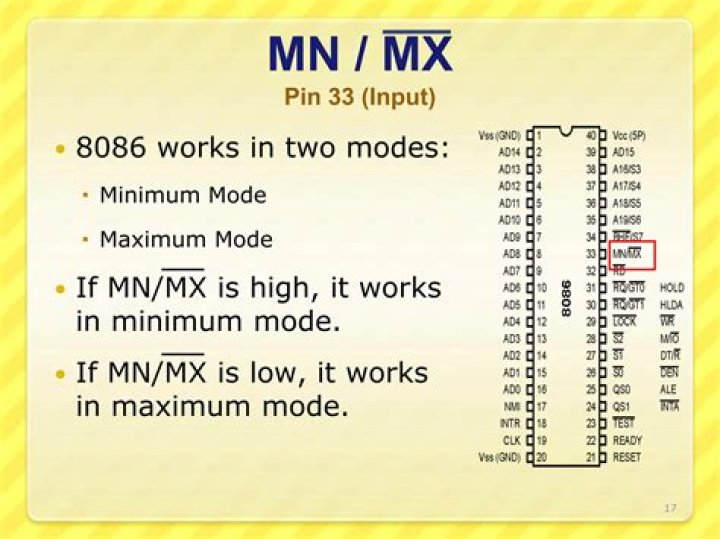

When the pin 33 of the 8086 microprocessor is in the reset state, i.e. 0, then the microprocessor functions in the Maximum Mode. The pins form 24 to 31 are dedicated to these modes.
What are the minimum and maximum mode pins in 8086?
In minimum mode there can be only one processor i.e. 8086. In maximum mode there can be multiple processors with 8086, like 8087 and 8089. MN/¯MX is 1 to indicate minimum mode. MN/¯MXis 0 to indicate maximum mode.
Which of the following is a maximum mode signal in 8086?
The maximum mode signals of 8086 are listed in table below. The 8086 can made to work in maximum mode by grounding MN/MX. In maximum mode, the pin 24 to pin 31 are defined as follows….Maximum mode signals.
| Status Signal | Segment Register | |
|---|---|---|
| QS1 | QS0 | |
| 1 | 0 | Empty the queue |
| 1 | 1 | Subsequent byte from queue |
What are the minimum mode pins of 8086?
Pin definitions from 24 to 31 are different for minimum mode and maximum mode. By using these pins the 8086 itself generates all bus control signals in the Minimum Mode Configuration of 8086.
What is the maximum mode in 8086 explain?
Maximum Mode 8086 System In the maximum mode, the 8086 is operated by strapping the MN/MX pin to ground. In this mode, the processor derives the status signal S2, S1, S0. Another chip called bus controller derives the control signal using this status information.
How is 8086 configured in maximum mode and in minimum mode?
Minimum and Maximum Modes: The minimum mode is selected by applying logic 1 to the MN / MX# input pin. This is a single microprocessor configuration. The maximum mode is selected by applying logic 0 to the MN / MX# input pin.
How 8086 operates in minimum mode?
The 8086 microprocessor operates in minimum mode when MN/MX’ = 1. In minimum mode,8086 is the only processor in the system which provides all the control signals which are needed for memory operations and I/O interfacing. By this we can access 220 byte memory i.e. 1MB .
What do you mean by minimum mode and maximum mode in 8086?
The 8086 microprocessor can work in two modes of operations : Minimum mode and Maximum mode. In the minimum mode of operation the microprocessor do not associate with any co-processors and can not be used for multiprocessor systems. In the maximum mode the 8086 can work in multi-processor or co-processor configuration.
What is the difference between minimum mode and MAXIMUM mode in 8086?
The minimum mode is a single processor configuration while the maximum mode is a multiple processor configuration. Due to this reason, in the 40 pin IC of 8086 microprocessor, 8 pins i.e., pin numbered from 24 to 32 are assigned different configurations separately according to the two modes. We will discuss the pin description in this section.
What is the pin diagram of 8086 microprocessor?
Pin diagram of 8086 microprocessor is as given below: Intel 8086 is a 16-bit HMOS microprocessor. It is available in 40 pin DIP chip. It uses a 5V DC supply for its operation. The 8086 uses 20-line address bus. It has a 16-line data bus. The 20 lines of the address bus operate in multiplexed mode.
What is the difference between 8085 and 8086?
Definition: 8086 is a 16-bit microprocessor and was created by Intel in 1978. Like the pin configuration of 8085 microprocessor, the 8086 microprocessor also contains 40 pins dual in line. However, unlike the 8085 microprocessor, an 8086 to have better performance, operates in 2 modes that are minimum and maximum mode.
What does A0 mean on 8086 microprocessor?
A signal 0 at this pin informs that the 8086 is operating in maximum mode i.e., multiple processors. While signal 1 shows the operation under minimum mode i.e., single processor. RD’ – Pin number 32 – An active low signal at this pin shows that the microprocessor is performing read operation with either memory or I/O devices.
