Operational Amplifiers: Key Characteristics and Parameters
- Open-loop gain.
- Input impedance.
- Output impedance.
- Frequency response and bandwidth (BW)
- Gain bandwidth product (GBP)
- Voltage follower.
- Inverting operational amplifier.
- Non-inverting operational amplifier.
What are practical op-amp parameters?
Characteristic of Practical Op-amp The open loop voltage gain A0 is maximum and finite, a typical value for the practical op-amp is considered to be 200,000. The input impedance Zi is maximum and is finite i.e. in the order of 100k or more. The output impedance Z0 is minimum, not zero, in the order of 100 or less.
What are the various applications of op-amp?
Op amps are used in a wide variety of applications in electronics. Some of the more common applications are: as a voltage follower, selective inversion circuit, a current-to-voltage converter, active rectifier, integrator, a whole wide variety of filters, and a voltage comparator.
What are the ideal and practical parameters of op-amp?
1 Ideal Op Amp Characteristics
- 1.1 Infinite Input Resistance. The input terminal of an ideal operational amplifier does not have any current to flow in.
- 1.2 Zero Output Impedance.
- 1.3 Infinite Open-loop Gain.
- 1.4 Infinite Common-mode Rejection Ratio.
- 1.5 Infinite Bandwidth.
What are the key parameters to evaluate the performance of an amplifier?
Amplifier properties are given by parameters that include: Gain, the ratio between the magnitude of output and input signals. Bandwidth, the width of the useful frequency range. Efficiency, the ratio between the power of the output and total power consumption.
What are the two most important parameters to be considered while choosing an op amp?
Op amp requirements The ideal op amp, should it ever exist, would have infinite gain, infinite input impedance, zero output impedance, it should have an infinite frequency response, not introduce any noise, and it should be distortion free.
What are practical op-amp parameters IC 741?
A typical range of supply voltage in 741 IC is, The output of an op amp can not cross this range of supply voltage….Op amp 741 IC or Operational Amplifier 741 IC.
| Parameters | Typical Range | Ideal Value |
|---|---|---|
| Open Loop Gain(A) | 105 to 108 | ∝ |
| Input Resistance(Ri) | 105 to 1013 | ∝ |
| Output Resistance(Ro) | 10 to 100 | 0 |
What are the linear applications of op-amp and give examples?

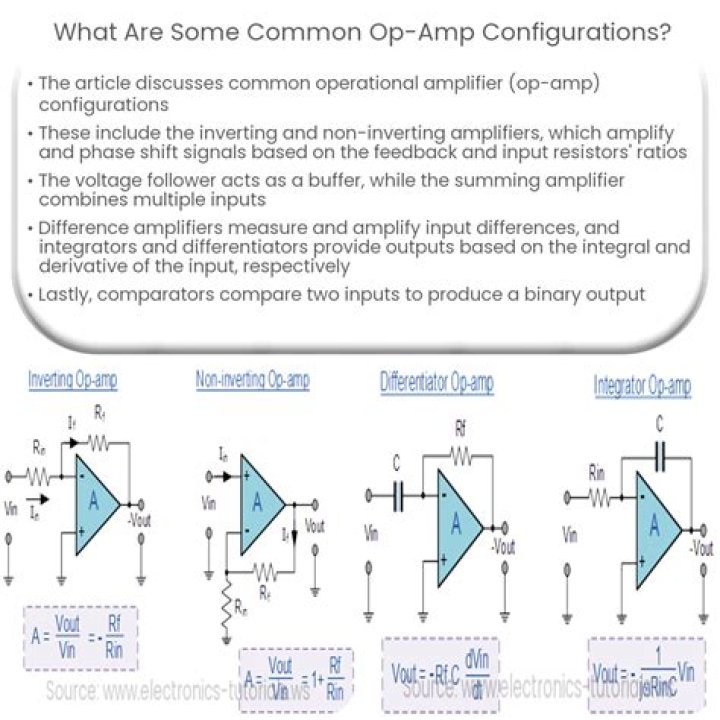

They are used in linear applications like voltage follower, differential amplifier, inverting amplifier, non-inverting amplifier, etc. and non-linear applications like precision rectifiers, comparators, clampers, Schmitt trigger circuit, etc. Fig. 2 gives the representation of ideal and practical op-amps.
What are the three fundamental parameters of op amp?
An operational amplifier, or op amp is used in a wide variety of applications in electronics. It generally comprises a differential-input stage with high input impedance, an intermediate-gain stage, and a push-pull output stage with a low output impedance.
What are the ideal characteristics of op amp What are its parameters and how it measure these?
An ideal op amp is usually considered to have the following characteristics:
- Infinite open-loop gain G = vout / v.
- Infinite input impedance Rin, and so zero input current.
- Zero input offset voltage.
- Infinite output voltage range.
- Infinite bandwidth with zero phase shift and infinite slew rate.
What are the basic applications of op-amps?
Op-amps can be used in both linear and non-linear applications. The following are the basic applications of op-amp − This chapter discusses these basic applications in detail. An inverting amplifier takes the input through its inverting terminal through a resistor R 1, and produces its amplified version as the output.
What does the output parameter of an op amp represent?
This parameter is the sum of the small signal impedance between each input terminal and ground. Like the input circuitry of the op amp, the output is also complex and this parameter represents the small signal impedance between the output terminal and ground.
What is the voltage gain of an op-amp?
That means zero volts is applied at the non-inverting input terminal of the op-amp. According to the virtual short concept, the voltage at the inverting input terminal of an op-amp will be zero volts. The ratio of the output voltage V 0 and the input voltage V i is the voltage-gain or gain of the amplifier.
How do I know if my op-amp is suitable for my task?
There are several key parameters that help determine the suitability of a given op-amp to a task at hand. Tests can establish these parameters, and the most important of them can be found in op-amp specsheets. Power-supply rejection ratio (PSRR) identifies the op-amp sensitivity to variations in the power supply.
