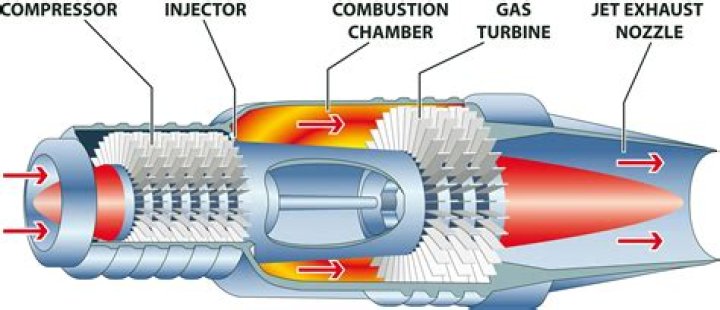

The components of the exhaust section include the exhaust cone, tailpipe (if required), and the exhaust nozzle. The exhaust cone collects the exhaust gases discharged from the turbine section and gradually converts them into a solid flow of gases.
What are the parts of a turbine engine?
The component parts of a turbojet engine are the inlet, the gas turbine engine, consisting of a compressor, a combustion chamber and a turbine, and the exhaust nozzle. Air is drawn into the engine through the inlet and compressed and heated by the compressor. Fuel is then added in the combustion chamber and ignited.
What is on each spool of a triple spool engine?
The Three-Spool Engine A three-spool engine is the same thing, only with three concentric shafts, the third of which connects an intermediate pressure turbine and compressor. This is sometimes used in very high bypass ratio engines, in which the fan is much larger in diameter than the low-pressure compressor.
What are the major components of a turbine engine?
Major components include the compressor, combustion system, gas producer turbine, and power turbine. This design includes a two-stage gas producer turbine and a two-stage power turbine.
What are the main parts of a jet engine?
What are the key components of any jet engine?
All jet engines and gas turbines work in broadly the same way (pulling air through an inlet, compressing it, combusting it with fuel, and allowing the exhaust to expand through a turbine), so they all share five key components: an inlet, a compressor, a combustion chamber, and a turbine (arranged in exactly that …
What are the 3 major sections of a gas turbine engine?
Generally, there are mainly three items regarded as gas turbine parts: a compressor, a combustion engine, and a turbine plus other parts such as rotors, casings, and auxiliary components. Now, we are going to talk about what gas turbines are and where they are used.
What is on the N2 spool of a triple spool engine?
In a three spool engine, N2 refers to the rotational speed of the intermediate speed spool consisting of the intermediate pressure compressor and turbine.
What is twin spool compressor?
Twin spool compressor. A compressor that has two independently operating low- and high-pressure compressors driven, respectively, by low- and high-pressure turbines.
How many parts are in a jet engine?
The engine of an Airbus A380 Superjumbo jet is huge, made up of 20,000 components that can summon up to 70,000 pounds of thrust. Replacing it is no small task.
What are the 5 main components of a jet engine?
What is a two spool engine?
As with the core compressor and turbine, some of the fan blades turn with the shaft and some blades remain stationary. The fan shaft passes through the core shaft for mechanical reasons. This type of arrangement is called a two spool engine (one “spool” for the fan, one “spool” for the core.)
Why are there 3 spools on a Rolls Royce fan?
Engine manufacturers typically limit the rotation speed of the shaft powering the fan to the optimal fan blade tip speed, which causes the low-pressure compressor and turbine to rotate much slower than optimal. Rolls Royce has relieved this problem by separating the fan from the low-pressure compressor and turbine, thus creating 3 spools.
What is a turboturbofan engine?
Turbofan engine mostly uses in airplane propulsions. The term “turbofan” stands for “ turbine ” and “fan,” the “turbine” part represents to a gas turbine that obtains mechanical power through combustion, and the part “fan” is a duct fan that utilizes the gas turbine’s mechanical power to increase the air backward.
What is a Fanjet or turbofan engine?
The fanjet or turbofan engine is a famous kind of engine from the category of jet engine. A turbofan engine is most commonly utilized in aircraft propulsions. The turbofan has an additional fan which helps to accelerate a lot of mass without combusting extra fuel.
