Construction of the chain The first type is inner links, having two inner plates held together by two sleeves or bushings upon which rotate two rollers. Inner links alternate with the second type, the outer links, consisting of two outer plates held together by pins passing through the bushings of the inner links.
What are the five parts of roller chain?

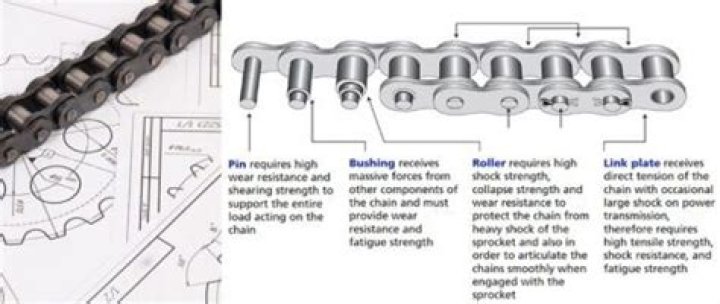

For starters, roller chain consists of 5 basic components: Pin, bushing, roller, pin link plate, and roller link plate. Each of these components are manufactured and assembled to precise tolerances and heat treated to optimize performance with regard to wear resistance, fatigue strength, and tensile strength.
What are the parts of a chain?
1.1. 4 Functions of Chain Parts
- Plate. The plate is the component that bears the tension placed on the chain.
- Pin. The pin is subject to shearing and bending forces transmitted by the plate.
- Bushing.
- Roller.
- Cotter Pin, Spring Clip, T-Pin.
How do I know what roller chain to get?
Measuring your roller chain starts with determining the below dimensions:
- The distance from the center of one pin to the center of the next pin, also known as the “pitch” of the roller chain.
- The diameter and width of the roller.
- Plate thickness, determined by measuring the plates from one flat side to another.
Is roller chain a code?
HSN Code 7315
| HS Code | Description | GST% |
|---|---|---|
| 731511 | Roller chain of iron or steel | 18% |
| 731512 | Articulated link chain of iron or steel (excluding roller chain) ,Products include: Stainless Steel Chain | 18% |
| 73151100 | ROLLER CHAIN ,Products include: Shot Blasting Machine | 18% |
How does a half link chain work?
What is a Half-Link Chain? Unlike the full-link chain, the half-link chain allows you to remove just a single link; this is made possible through the half-link featuring both an external and internal end. The ability to remove one link allows for fine-tuning of rear wheel placement.
What is the difference between #40 and #41 roller chain?
#40 will be the beefiest chain in this class. This will help with thicker sprockets since there is more room between the side plates. #41 will look just like the #420 chain, but will stand shorter.
What is the end of a chain called?
The Clasp – This part of the necklace is what keeps it all together and in tact. The fastening piece can either be a clasp, spring ring, or hook and eye fastener that keeps the chain connected.
How do I choose a chain sprocket?
- Selection Procedure.
- Determine the Class of Load.
- Lubricant.
- Note : If table 1 does not list your equipment, go by its similarity to a listed item.
- Establish the Design Horsepower.
- Final Selection of Chain.
- Select the Large Sprocket.
- Determine Chain Length.
What are rollroller chain side plates used for?
Roller chain side plates are used to hold the internal components in and for strength.
How do I identify my roller chain?
How To Identify My Roller Chain? Most roller chain has the size stamped right into the side plates. You may see something like “40”, “C2080H” or “10B” stamped in, which the industry number that represents the chain size. Old chains will most likely need to be cleaned in order to see the size.
How do you install a roller chain on a bike?
The almost complete pin link assembly is then inserted into two roller links and another outside side plate is put into position to be pressed down to complete the pin link and secure the two roller links. Once pressed, we now have a completed section of roller chain assembled.
What parts go into a roller chain?
Below we show what parts go into a roller chain and what they are used for, then we show how a roller chain is typically assembled. The first component is the pin. Typically these are manufactured out of carbon steel and depending on the quality level, the pin can be thru-hardened, case hardened, or heat-treated.
