What are the two types of seven segment display?

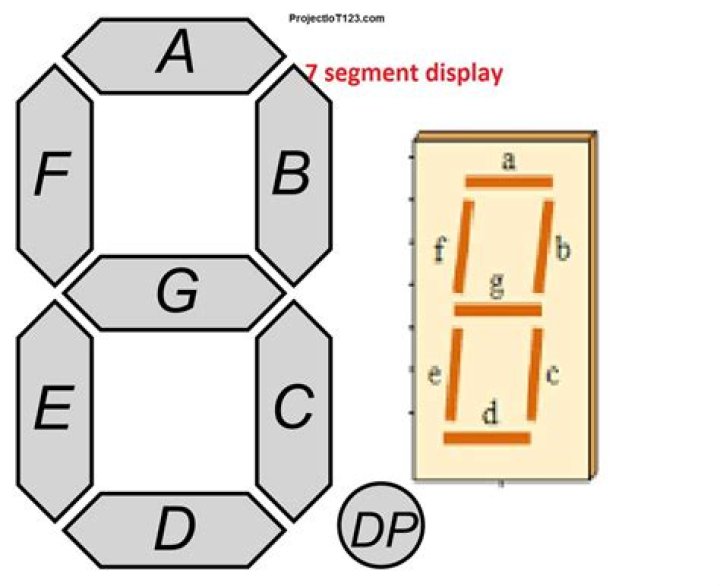

Types of Seven Segment Displays According to the type of application, there are two types of configurations of seven segment displays are common anode display and common cathode display. In common cathode seven segment display, all the cathode connections of LED segments are connected together to logic 0 or ground.

Which are the 2 types of 7 segment LED digital display?

According to the type of application, there are two types of configurations of seven segment displays: common anode display and common cathode display.

What are the two types of seven segment display in Arduino?

Seven segment displays are of two types: Common Cathode (CC) and Common Anode (CA). The Internal structure of both types is nearly the same. The difference is the polarity of the LEDs and common terminal.

What do you mean by seven segment display?

A seven-segment display is a form of electronic display device for displaying decimal numerals that is an alternative to the more complex dot matrix displays. Seven-segment displays are widely used in digital clocks, electronic meters, basic calculators, and other electronic devices that display numerical information.

What kind of visual panel is used for seven segment display?

Discussion Forum

Which is the seven segment display?

What is a common cathode 7 segment display?

As their name suggests, the common cathode has all the cathodes of the LEDs in a 7-segment connected together and the common anode has all the anodes of the LEDs in a 7-segment connected together. In the common cathode display, all the cathode connections of the LED segments are connected together to ‘logic 0’ / GND.

What are the types of seven-segment displays?

There are two types of LED 7-segment displays: common cathode (CC) and common anode (CA). The difference between the two displays is the common cathode has all the cathodes of the 7-segments connected directly together and the common anode has all the anodes of the 7-segments connected together.

What are the types of seven segment display?

There are two different types of driving seven-segment displays:- the common anode type and the common cathode type. In the common anode type all the anodes on the display are tied to a common pin, typically the power source, and the LEDs are controlled via the cathodes with the ground being on and power being off.

How does seven segment display work?

How Seven-Segment Displays Work. A seven-segment display is a group of light emitting diodes (LEDs) arrange in a figure 8 pattern. When charge carriers flow through a diode, the electrons flow one direction, here to the left, and the holes or positive charge in the opposite direction, here to the right, see Figure 1.

How does a seven segment LED display work?

How does a 7 segment display work Firstly, identify these components. Secondly, connect these components. For that, use the circuit diagram below. Also, the common anode display is used for this tutorial. Thirdly, let’s creates the program. It is as follows. OK, now select board and port, Afterward, upload this code. OK, enjoy this project.

What is a seven segment?

A seven segment display (also written as 7-Segment Display) is an electronic display device which is used to display numerical characters from 0 to 9 or some special characters. There are seven LEDs present in one unit of the seven segment whose combination is used to make numeral or special characters according to the use.

What is a 7 segment led?

A 7 Segment LED Display is a electronic device that contains an array of 8 individual LEDs. Each of the 8 segments that make up the display can be either be on the on state or the off state. Depending on which LEDs are lit determines the character which is displayed on the LED.
