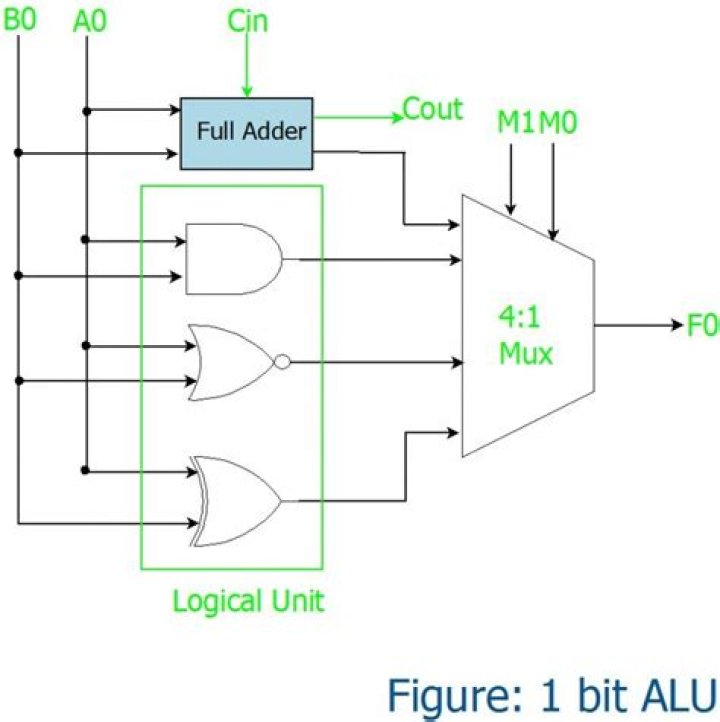

So with the above building blocks, lets construct a simple ALU that performs a arithmetic operation (1 bit addition)and does 3 logical operations namely AND, NOR and XOR as shown below. The multiplexer selects only one operation at a time….The basic Unit: 1 bit ALU.
| Inputs | Outputs | |
|---|---|---|
| M1 | M0 | Operation |
| 1 | 0 | AND |
| 0 | 1 | OR |
| 1 | 1 | XOR |
How many bits is an ALU?
The ALU has two 32-bit inputs (which we’ll call “A” and “B”) and produces one 32-bit output. We’ll start by designing each piece of the ALU as a separate circuit, each producing its own 32-bit output. Then we’ll combine these outputs into a single ALU result.
What is 8bit ALU?
An 8-bit arithmetic logic unit (ALU) is a combinational circuit which operates on two 8-bit input buses based on selection inputs. The ALU performs common arithmetic (addition and subtraction) and logic (AND, INV, XOR, and OR) functions.
How does a 1 bit adder work?
A 1-bit adder circuit accepts two 1-bit binary numbers and a carry input and outputs a 1-bit sum and a carry. The next table shows the truth table for a 1-bit adder. Click on the 1’s and 0’s in green (the inputs) to change their value. To run the simulation with these new values, click on the “Continue” value.
What does ALU mean?
function in digital computer …of a control unit, an arithmetic logic unit (ALU), a memory unit, and input/output (I/O) controllers. The ALU performs simple addition, subtraction, multiplication, division, and logic operations, such as OR and AND. The memory stores the program’s instructions and data.
How does ALU calculate overflow?
The logic is follows: when adding, if the sign of the two inputs is the same, but the result sign is different, then we have an overflow. We have to do this only for addition, so we take the B31 value after the XOR gate, i.e. just as it goes into the most-significant adder.
What is a 4 bit ALU?
An ALU which acts as core part of CPU is a combinational digital electronic. The design of 4-bit ALU, performs three arithmetic and four logical operations. The four arithmetic operations include ADD,SUBTRACT and COMPARE. The four logical operations such as AND, OR, XOR and NOT.
What is ALU circuit?
In computing, an arithmetic logic unit (ALU) is a combinational digital circuit that performs arithmetic and bitwise operations on integer binary numbers. This is in contrast to a floating-point unit (FPU), which operates on floating point numbers.
How many units do we have in ALU?
In some processors, the ALU is divided into two units: an arithmetic unit (AU) and a logic unit (LU). Some processors contain more than one AU — for example, one for fixed-point operations and another for floating-point operations.
Why full adder is used?
A full adder circuit is central to most digital circuits that perform addition or subtraction. It is so called because it adds together two binary digits, plus a carry-in digit to produce a sum and carry-out digit.
What is alu in computer architecture?
DESIGN PROCEDURE: The ALU as the name suggests provides for arithmetic and logical operations on the operands.
What is the output of a single ALU?
A single CPU, FPU or GPU may contain multiple ALUs. The inputs to an ALU are the data to be operated on, called operands, and a code indicating the operation to be performed; the ALU’s output is the result of the performed operation.
What is the Bullzip PDF printer?
The Bullzip PDF Printer works as a Microsoft Windows printer and allows you to write PDF documents from virtually any Microsoft Windows application. This program is FREEWARE with limitations, which means that there is a FREE version for personal and commercial use up to 10 users.
What is a one-bit full adder?
A one-bit full- adder adds three one-bit numbers, often written as A, B, and Cin; A and B are the operands, and Cin is a bit carried in from the previous less-significant stage.The full adder is usually a component in a cascade of adders, which add 8, 16, 32, etc. bit binary numbers.
