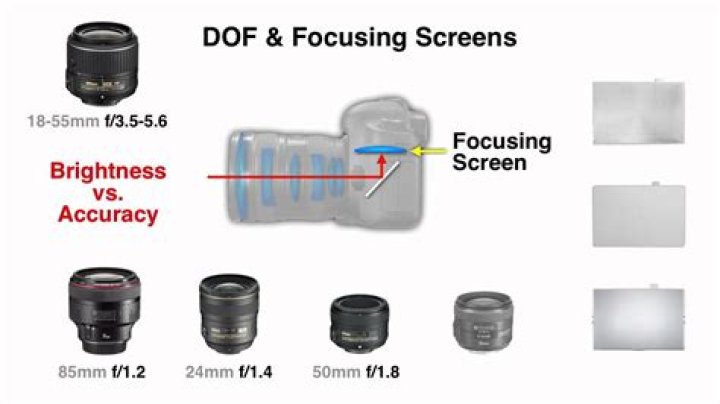

A focusing screen is a flat translucent material, either a ground glass or Fresnel lens, found in a system camera that allows the user of the camera to preview the framed image in a viewfinder. Often, focusing screens are available in variants with different etched markings for various purposes.
What is focusing screen Canon?
QuickGuide to EOS Focusing Screens. One of the many advantages of using Canon EOS SLRs—the professional models in particular—is the ability to change the focusing screen to suit a particular lens aperture, focal length, application, or focusing preference.
How do you change the screen on a Nikon focus?
Changing the focusing screen To change the focusing screen, first remove the viewfinder as described earlier. Then turn the camera body upside down and press the finder release button a second time. The screen will drop into your hand.
Does focus screen affect photos?
It won’t affect focus! The AF system is in the bottom of the camera and receives its “light” via a totally separate path. So the only thing that might be affected is exposure metering.
How do I get dust off my focused Screen?
Use a blower brush to try to blow the dust off the screen and look through the viewfinder at something bright like a white wall. If the dust is still there get a q-tip, the sterile ones are best, and gently brush the focusing screen to dislodge the dust. Then thoroughly blow the whole inside of the camera out.
What is the canon EG-s Super Precision matte focusing screen?
The Canon Eg-S Super Precision Matte Focusing Screen is an interchangeable focusing screen compatible with the Canon EOS 5D-Mark II camera. The Super Precision Matte screen improves the ease of focusing when doing manual focus Not recommended for use with lenses slower than f/2.8.
What is the 5D Mark II focusing screen eg-a?
The 5D Mark ii ships with the default focusing screen EG-A. The screen is interchangeable and is designed to maximise viewfinder brightness and operates with all AF Lenses. For some, the standard screen doesn’t quite ‘give you the full story’ meaning that it is too bright.
How do I remove the focusing screen from the camera?
1. Place the Camera on a flat surface with the lean mount facing up. 2. Using the Special Tool gently pull the attachment hook to release the focusing screen. The attachment hook is at the top of the Lens mount. (See Diagram ). Pull it downwards gently. 3. Remove the default standard focusing screen with the Special Tool and place it in the case.
