A resistor is a passive electrical component with the primary function to limit the flow of electric current.
Why do you need a resistor?
A resistor controls the flow of the electrical current within a circuit. Resistors are essential to many electoral circuits, and they can be applied to a myriad of different applications. Protect against voltage spikes. Resistors also protect components against voltage spikes.
How does a resistor work in a circuit?
A resistor works by restricting the flow of current, it can do this in one of three ways: firstly, by using a less conductive material, secondly by making the conductive material thinner and finally by making the conductive material longer.
Does resistor reduce voltage or current?
A resistor has the ability to reduce voltage and current when used in a circuit. The main function of a resistor is to limit current flow. Ohm’s law tells us that an increase in a resistors value will see a decrease in current.
How do resistors affect voltage?
The larger the resistor, the more energy used by that resistor, and the bigger the voltage drop across that resistor. Ohm’s Law can be used to verify voltage drop. In a DC circuit, voltage equals current multiplied by resistance. V = I R.
What is a resistor and what does it do?
Resistor. A resistor is a passive two-terminal electrical component that implements electrical resistance as a circuit element. In electronic circuits, resistors are used to reduce current flow, adjust signal levels, to divide voltages, bias active elements, and terminate transmission lines, among other uses.
What does a resistor do and why is it important?
Importance of Resistors: A resistor is a passive two-terminal electrical component that implements electrical resistance as a circuit element. Resistors act to reduce current flow, and, at the same time, act to lower voltage levels within circuits.
Does a resistor reduce voltage or current?
In series circuit, Resistor is a device that reduce the current in the circuit. And according to ohm’s law, V = IR, when the current is reduced, the voltage will also be reduced. So I think resistor will reduce BOTH voltage and current.
What are the components of a resistor?

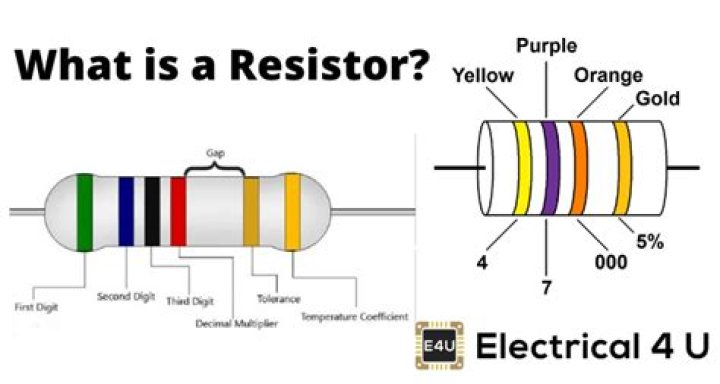

Basic Components and Technical Notation Resistors. Continuing in Section 3.3, we’re looking at the component resistors. Resistor Technology. Resistor Color Code (3 – 4 Band) Resistor color code, we’re first of all we’re going to look at three and four band resistors. Precision Resistors. Variable Resistors. Rheostats. Potentiometers. Resistor Symbols.
