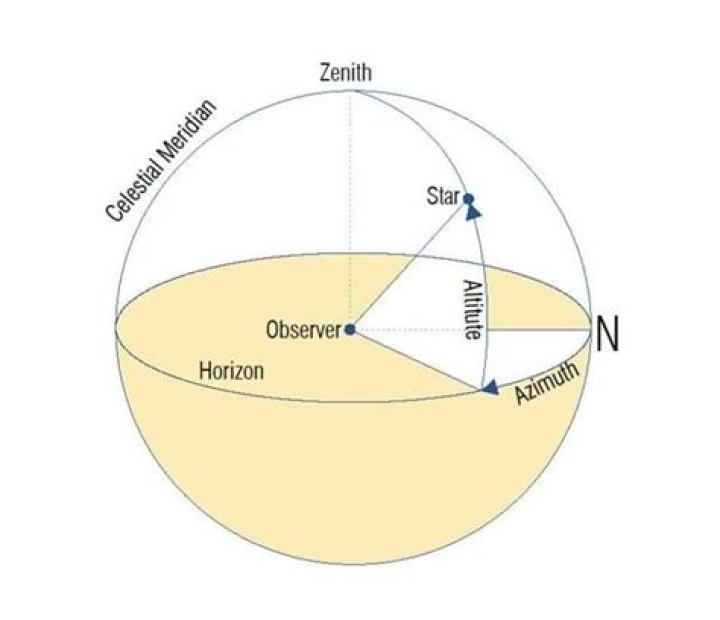

Altitude in this sense is expressed as angular elevation (up to 90°) above the horizon. Azimuth is the number of degrees clockwise from due north (usually) to the object’s vertical circle (i.e., a great circle through the object and the zenith).
What is the formula of azimuth?
Most noteworthy, one must make use of the following formula for the purpose of azimuth calculation to the west: Z = 360 – d, where “Z” is the azimuth one intends to find, and “d” is the distance in the form of degrees from due north.
How azimuth angle is calculated?
The azimuth angle is like a compass direction with North = 0° and South = 180°. Other authors use a variety of slightly different definitions (i.e., angles of ± 180° and South = 0°).
How do I calculate altitude?
Find pressure altitude
- Subtract the current altimeter setting from the standard pressure of 29.92.
- Multiply by 1,000.
- If you have a negative number, subtract it from the field elevation. Add a positive number.
How do you calculate azimuth from northing and easting?
The tangent of the azimuth is equal to the difference in easting divided by the difference in northing, with a complication. To calculate the distance between 2 points, (X 1, Y 1) and (X 2, Y 2 ), for example, (5, 6) and (-7,11), we plug our values into the distance formula: d = ( − 7 − 5) 2 + ( 11 − 6) 2.
Why is azimuth used?
In astronomy, azimuth is used together with altitude, which is measured up from the theoretical horizon, to define the position of a celestial object. Azimuth is also used in navigation, in surveying, and in directing artillery fire.
What is difference between altitude and elevation?
While all three words mean “vertical distance either between the top and bottom of something or between a base and something above it,” altitude and elevation apply to height as measured by angular measurement or atmospheric pressure; altitude is preferable when referring to vertical distance above the surface of the …
What is the difference between azimuth and elevation?
Azimuth is measured in degrees, whereas elevation is usually measured in feet or meters. Azimuth measures the position of a point along a horizon, whereas elevation measures the distance of a point above sea level or an equivalent datum on a planetary surface.
What is the difference between azimuth and Zenith?
is that azimuth is an arc of the horizon intercepted between the meridian of the place and a vertical circle passing through the center of any object; as, the azimuth of a star; the azimuth or bearing of a line surveying while zenith is (astronomy) the point in the sky vertically above a given position or observer; the point in the celestial sphere
Does elevation and altitude mean the same thing?
Altitude and elevation are measured the same way ft/meters above or below sea level. Relatively to air density at sea level. Elevation generally refers to something permanently attached to the ground say a mountain or maybe a hiker on the mountain.
What is the maximum altitude of a plane?
There is technically no maximum altitude, but there are practical physiological, structural and propulsion issues of increasing complexity that must be addressed as the altitude increases. Most current airliners are certified to altitudes in the range of 40,000 to 45,000 feet. The Concorde could fly at over 60,000 feet.
