The Minimum Reflux Ratio (R min) is the lowest value of reflux at which separation can be achieved even with an infinite number of plates. It is possible to achieve a separation at any reflux ratio above the minimum reflux ratio. As the reflux ratio increases, the number of theoretical plates required decreases.
How do you calculate minimum reflux ratio?
Minimum Reflux Ratio (Rm) Draw a line from ( xD, yD) passing through ( x1, y1) with an intercept xD / (Rm + 1) on Y axis. Reflux ratio is calculated as 1.5 times the minimum reflux ratio.
What are the minimum and maximum reflux ratio?

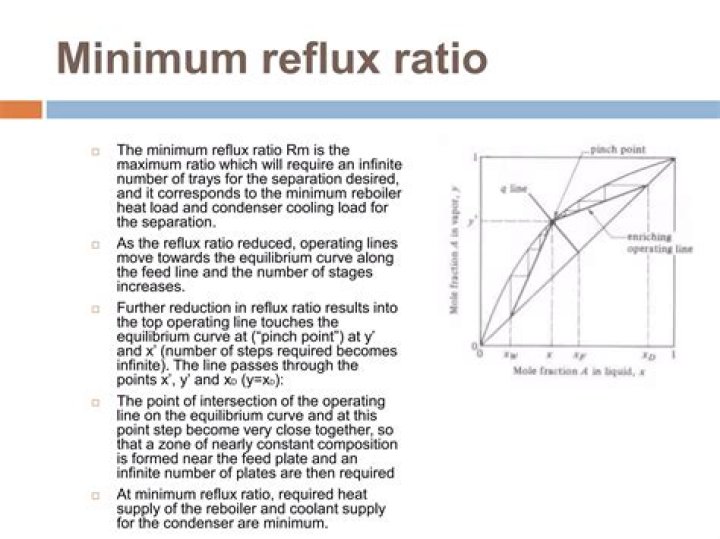

8. Minimum reflux ratio The minimum reflux ratio Rm is the maximum ratio which will require an infinite number of trays for the separation desired, and it corresponds to the minimum reboiler heat load and condenser cooling load for the separation.
What is the reflux rate?
The Reflux ratio is the ratio between the boil up rate and the take-off rate. The higher the reflux ratio, the more vapor/liquid contact can occur in the distillation column. So higher reflux ratios usually mean higher purity of the distillate. It also means that the collection rate for the distillate will be slower.
What is a normal reflux ratio?
The cost optimum reflux ratio is typically in the 1.1 to 1.5 range depending on energy costs, condenser coolant, and materials of construction. The rule of thumb reported most often suggests that a reflux ratio of about 1.2 times the minimum is a good design value.
How do you control reflux ratio?
When the reflux ratio is large and reflux is used to control the reflux-drum level, a frequently used scheme controls the reflux ratio by measuring the reflux flow rate and rationing the distillate flow rate to the reflux flow rate.
What is a good reflux ratio?
Typically the optimum reflux ratio is approximately 1.2 to 1.5 times Rmin.
Which of the following is true for minimum reflux ratio?
5. For minimum reflux ratio the number of trays becomes infinite. Explanation: For minimum reflux ratio, all the condensed vapour becomes distillate; no reflux. So it requires infinite number of trays.
What happens when reflux ratio is too high?
If the reflux rate is too high, too much liquid will flow down the column, and the column top will be cooled too much. Over-condensation may occur, and too much vapour will condense inside the column before reaching the top, leading to flooding.
How do you optimize reflux ratio?
In order to optimize the reflux ratio by solving the nonlinear objective function, an improved particle swarm algorithm was developed for improving the searching ability of the basic particle swarm algorithm.
Why do we need reflux in distillation?
The purpose of reflux is to provide down-flowing liquid throughout the rectification section to contact with the up-flowing vapor in order to achieve stage-by-stage equilibrium heat and mass transfer and, hence, purification of the top product.
How do you control the liquid level in reflux drum?
Generally boil-up is used to control the bottom composition, but it is possible to use it to control the reflux drum level. The easiest approach is to use the distillate stream to control the level leaving the reflux stream to control overhead composition.
What happens when you decrease reflux ratio?
Reflux ratio (RD = L/D) has a tremendous effect on both column tray efficiencies (at constant feed and distillate rates) and on the composition of the distillate and bottoms. A lower reflux rate greatly reduces the methanol purity of the distillate.
Can you have a negative reflux ratio?
negative number input as a reflux ratio is used as that number times the minimum reflux ratio (i.e. -2 indicates a reflux ratio of 2*Rmin).
Why do we need to reflux?
Thus, the application of heat must be done in a specific way to overcome the issue of evaporating too much solvent and drying the reaction vessel. Reflux involves heating the chemical reaction for a specific amount of time, while continually cooling the vapour produced back into liquid form, using a condenser.
Is reflux a purification technique?
Reflux is a technique that involves the condensation of vapors which are then returned back to the sample. It is used in laboratory distillation processes. Distillation is the action of purifying a liquid by a process of heating and cooling.
What affects the reflux ratio?
The liquid level in the reflux drum is directly affected by three variables: distillate flow rate, reflux flow rate, and condenser duty. Condenser duty affects the amount of liquid entering the reflux drum due to condensation of the vapor coming overhead from the column.
How does a reflux still work?
It works by enhancing and concentrating the flavours and aromas as well as removing unwanted sulphur compounds in the large copper surface area of the dome top. This produces a smoother, richer, sweeter tasting spirit.
What happens during a reflux?
Reflux involves heating the chemical reaction for a specific amount of time, while continually cooling the vapour produced back into liquid form, using a condenser. The vapours produced above the reaction continually undergo condensation, returning to the flask as a condensate.
