Odd parity checker circuit receives these 4 bits and checks whether any error are present in the data. If the total number of 1s in the data is odd, then it indicates no error, whereas if the total number of 1s is even then it indicates the error since the data is transmitted with odd parity at transmitting end.
What is a odd parity bit?
In asynchronous communication systems, odd parity refers to parity checking modes, where each set of transmitted bits has an odd number of bits. If the total number of ones in the data plus the parity bit is an odd number of ones, it is called odd parity. Parity bits are the simplest form of error detection.
What is odd parity with example?
For example, the binary value 10000000 has an odd parity. For instance, the values 1010 and 1001 have the same parity. Therefore, if the value 1010 is transmitted and 1001 is received, no error will be detected. This means parity checks are not 100% reliable when validating data.
How do you calculate odd and even parity?
For a given set of bits, if the count of bits with a value of 1 is even, the parity bit value is set to 1 making the total count of 1s in the whole set (including the parity bit) an odd number. If the count of bits with a value of 1 is odd, the count is already odd so the parity bit’s value is 0.
What is difference between parity generator and checker?

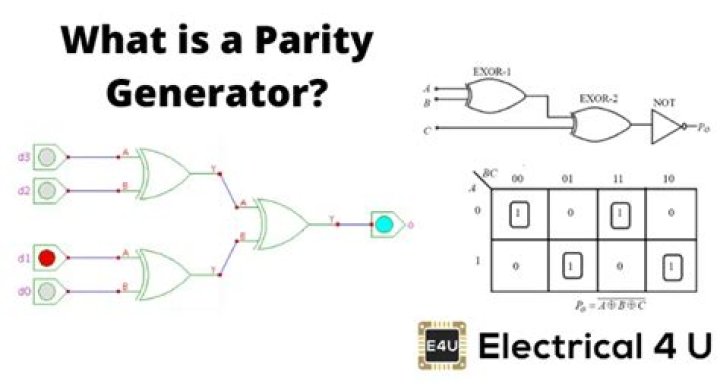

A parity generator is a combinational logic circuit that generates the parity bit in the transmitter. On the other hand, a circuit that checks the parity in the receiver is called parity checker. The sum of the data bits and parity bits can be even or odd.
How do I know my parity bit?
Error Detection by Adding Parity Bit
- In case of even parity − If number of 1s is even, parity bit value is 0. If number of 1s is odd, parity bit value is 1.
- In case of odd parity − If number of 1s is odd, parity bit value is 0. If number of 1s is even, parity bit value is 1.
How many parity bits are there?
A parity bit is an extra bit included in binary message to make total number of 1’s either odd or even. Parity word denotes number of 1’s in a binary string. There are two parity system-even and odd.
What is even odd parity?
For “even parity” all the “1” bits are counted, and if that count is odd then the parity bit is set to 1 to make an even number of 1s. So, including the parity bit, all binary numbers will have an even number of 1s. “Odd parity” is the same idea, but the parity bit is set so that there is always an odd number of 1s.
How many parity bits are found?
How many types of parity bits are found? Explanation: There are two types of parity bits, namely even parity and odd parity. In even parity, a 1 bit is added in order to make a group of data bits have even number of 1s.
How do you calculate parity bits?
, The last bit is the parity bit; 1 for even parity, 0 for odd parity. you should make this bit the LSB of the original number (00111011) thereby becoming (001110111). This involves doing an XOR between the consecutive bits in a particular number in an integer.
How do you get even parity?
Note: Parity of a number is used to define if the total number of set-bits(1-bit in binary representation) in a number is even or odd. If the total number of set-bits in the binary representation of a number is even then the number is said to have even parity, otherwise, it will have odd parity.
How many bits are there in parity generator?
These 4 bits are applied as input to the parity checker circuit which checks the possibility of error on the data. Since the data is transmitted with even parity, four bits received at circuit must have an even number of 1s. If any error occurs, the received message consists of odd number of 1s.
What is the difference between even parity and odd parity?
Even parity and odd parity both refer to asynchronous communication parity checking modes; even parity sets an extra bit to 1 if the data item already has an odd number of “1” bits or to 0 if the number of “1” bits is even, while odd parity checking does the same but leaves the number of “1” bits odd.
How is a parity bit calculated?
In telecommunications and computing, parity refers to the evenness or oddness of the number of bits with value one within a given set of bits, and is thus determined by the value of all the bits. It can be calculated via a XOR sum of the bits, yielding 0 for even parity and 1 for odd parity.
How parity bits are calculated?
Write the bit positions starting from 1 in binary form (1,10,11,100,etc).
How is parity bit used to check for errors?
Parity refers to the redundant check bit that represents the even/odd condition of a certain unit (usually one byte) of computer data stored in the RAM of a device. This is used to check and double check for errors by comparing the stored and the computed parity.
