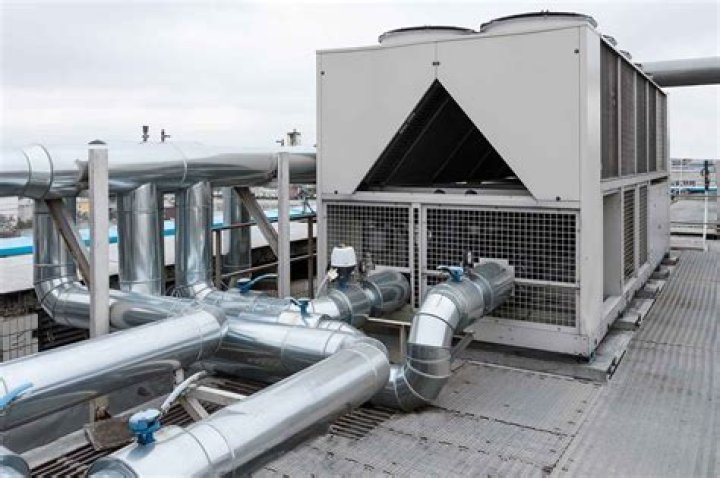

What are Chiller Systems? Commercial buildings use Heating, Ventilation and Air Conditioning (HVAC) systems to dehumidify and to cool the building. In general, a chiller facilitates the transfer of heat from an internal environment to an external environment.
What is the difference between HVAC and chiller?
In cold weather, the air conditioning component of an HVAC system becomes redundant as air cooling is not required. Chiller systems can, however, be modified to provide heating and thus remain fully operational regardless of prevailing weather conditions.
What is a chiller plant?
A chiller plant is a centralized system that cools the air for a building or for a collection of buildings and provides the air-conditioning portion of HVAC systems. According to the federal government’s Energy Star website, over 35 percent of buildings larger than 100,000 square feet contain chiller plants.
How does a chilled water HVAC system work?
Water-chilled climate control uses water, instead of air, to cool a space. A reservoir holds a water and glycol mixture that is circulated throughout the building through pipes. The cold water is run over cooling coils inside the air handler and a fan blows the air from the room over the coils.
What are the main parts of chiller?
Chillers consist of four basic components; an evaporator, a compressor, a condenser, and an expansion unit. Every chiller system contains a refrigerant. The process starts with a low-pressure refrigerant entering the evaporator.
What are types of chillers?
Types Of Chiller Systems
- Types of Chillers.
- Air Chillers.
- Water Chillers.
- Evaporative Condensed Chillers.
- Chiller Subcategories.
- Reciprocating Chillers.
- Rotary Screw Chillers.
- Centrifugal Compression Chillers.
What is HVAC plant?
A HVAC system is a heating, ventilation, and air-conditioning system. A system that does any one (or more) of those tasks is called a HVAC system. Such a system has 3 components: a central plant, a distribution system, and a rejection unit.
What does chiller plant do?
While HVAC systems are responsible for regulating the comfort levels of most indoor environments, a chiller plant act as a centralized cooling system which provides cooling for a building or a number of buildings. Additionally, it provides a portion of the air conditioning by HVAC systems.
What is the temperature of chilled water?
Regardless of who provides it, the chilled water (between 4 and 7 °C (39-45 °F)) is pumped through an air handler, which captures the heat from the air, then disperses the air throughout the area to be cooled.
How do HVAC chillers work?
An HVAC chiller changes the physical state of refrigerant to transfer heat from one area to another. The laws of pressure-temperature relationship state that increased pressure on a refrigerant increases its temperature while decreased pressure lowers its temperature.
Chiller plants are classified as small, medium, or large tonnage systems and include associated pumping and control systems. Designed for singular and modular arrangements, they easily split into sections for shipment and reattachment in the field. A standard unit can include single or multiple power feeds.
What is HVAC water chiller?
Water chillers Water chiller is an integral part of an HVAC system. It removes heat from the system by cooling and dehumidifying the air. Mainly two types of water chillers are used in an HVAC system : mechanical type and absorption type.
How does a chiller work?
Liquid gets heated and vaporized,creating a gas. As gas is cooled,it is condensed to a liquid.
