The conduit cap is made of rugged PVC. The cap is used to close the opening of unused conduit. Ease of installation is a benefit of the conduit cap.
What is a conduit bushing?
Appleton™ and O-Z/Gedney™ conduit bushings are used with a locknut to terminate rigid metal conduit or IMC conduit to a box or enclosure. They provide a smooth pulling surface for wires.
How do you safely cap a wire?
Electrical tape is the simplest method of making electric wires safe. You also use tape on capped live electric wires as an extra precaution. Tapes can be used on loose live wires that do not fit the cap. You can simply use tape over the live wire to fit into the cap.
Do you need to cap off a ground wire?
Tip. Bare copper ground wires do not need to be capped. Similarly, BX cable’s metal armor sheathing, which conducts to ground without the need for an additional ground wire, may be left alone.
What are EMT connectors used for?
EMT connectors are used to secure EMT conduits to electrical metallic box. EMT couplings are used to couple two EMT pipes together, or an EMT pipe and a Rigid/IMC pipe together.
Why bushings are used?
The bushings used for the low voltage winding(s) of a transformer are often solid type with a porcelain or epoxy insulator. Their purpose is to control the voltage field around the center conductor so that the voltage distributes more uniformly across the surrounding insulation system in the bushing.
Is it OK to cap live wires?
Cap Loose Live Wires It can be helpful to cap wires when renovating your house or making electrical repairs. These wires can cause electric shock if they are exposed. The cap should fit the strands in the wire gauge if there are multiple wires.
Can you use electrical tape instead of caps?
Never use tape in place of wire nuts—it’s simply not secure enough, and it’s vulnerable to damage. Some people like to use wire nuts and wrap them with tape. This fine to do, but you probably won’t find any wire nut manufacturers advising you to do it.
Can you cap a wire with electrical tape?
Electrical tape is the simplest method of making electric wires safe. You also use tape on capped live electric wires as an extra precaution. You can simply use tape over the live wire to fit into the cap. However, it is important to terminate the wire in a junction box and avoid burying the wire in the wall.
What is a PVC end cap?
White Circular PVC End Caps for insulated pipes. These end caps are placed anywhere a pipe ends to enclose the insulation and ensure a vapor barrier. PVC End Caps are also very popular in pipe size reductions (reducing) by covering the exposed fiberglass insulation of the larger pipe size.

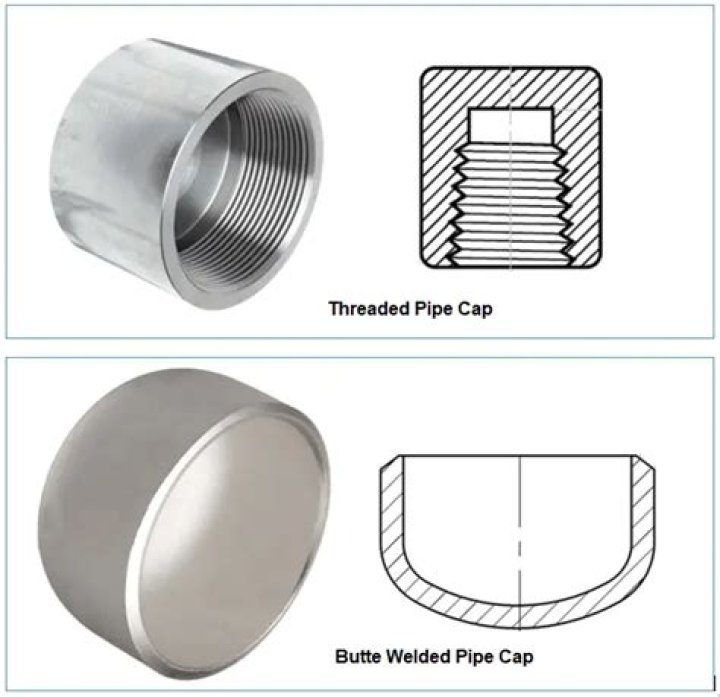

What is a pipe end cap?
End caps are usually used for protecting the end of pipe and other fittings, so the shape are designed according to the shape of pipe line. Pipe Cap are used for connecting pipes of different diameters and find wide applications in various chemicals, construction industries, paper, cement & ship builders.
How to cap off a PVC water pipe?
1) Putting The Primer Wipe off the pipe endings first. Then, coat the inner surface of the cap socket and the exterior of the pipe with a PVC primer. 2) Putting The Cement and Fixing The Cap Afterward, put on the PVC cement and put the cap socket on it. 3) Final Checking
What is conduit plug?
Conduit Duct Plugs. The Conduit Duct Plug is used to plug the end of un-used conduit ducts to prevent the conduit from being filled with dirt. The Conduit Duct Plug is available for any type of 3″ or 4″ conduit. The Duct Plug is hot stick retrievable in hand-hole situations.
