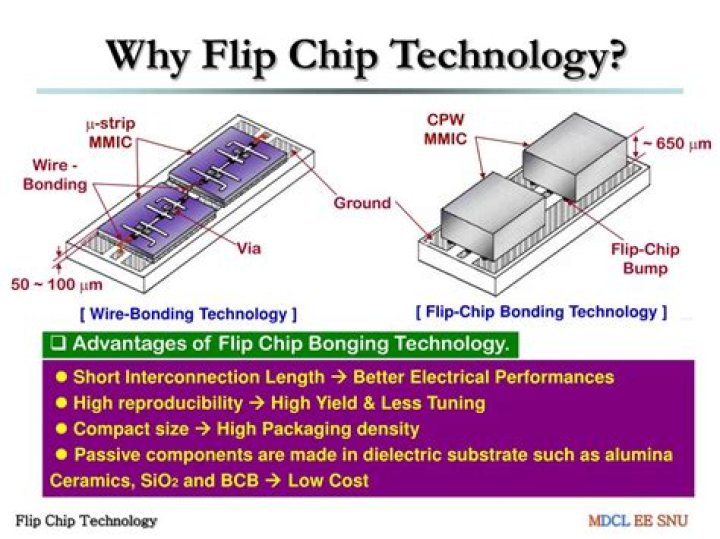

A chip packaging technique in which the active area of the chip is “flipped over” facing downward. The flip chip allows for a large number of interconnects with shorter distances than wire, which greatly reduces inductance.
What is the purpose of flip chip?
The flip chip allows riders to quickly adjust the geometry of their Maestro-equipped mountain bike to better suit how and where they ride. It lets riders change the headtube angle, seattube angle and bottom bracket height using eccentric (offset, two-position) hardware located in the upper rocker arm.
What is a flip chip BGA?
A flip chip BGA is a specific type of ball grid array that makes use of a controlled collapse chip connection, or flip-chip. It works though solder bumps on the top of the chip pads. The process starts with integrated circuits on the wafer. Pads are metallized on the chips and solder balls are placed on each pad.
What is flip chip assembly?
Flip chip assembly consists of three major steps: 1) bumping of the chips; 2) ‘face-down’ attachment of the bumped chips to the substrate or board; and 3) under-filling, which is the process of filling the open spaces between the chip and the substrate or board with a non-conductive but mechanically protective material …
How do you solder flip chips?
Pre-heat the PCB to 125°C. Using adjustable closure stop tweezers, place the flip chip onto the PCB pad, place the soldering iron tip onto the top of the flip chip then after solder reflows remove the soldering iron with great care.
What is CSP in semiconductor?
A chip scale package or chip-scale package (CSP) is a type of integrated circuit package. Originally, CSP was the acronym for chip-size packaging. WL-CSP had been in development since 1990s, and several companies begun volume production in early 2000, such as Advanced Semiconductor Engineering (ASE).
What is the difference between BGA and CSP?
Package Type Definitions In this article, BGA refers to a 35-mm or larger device with 760-µm solder balls. The term CSP describes devices with 250-µm solder balls and an interposer layer between the die and solder balls. The overall package size of a CSP is typically no larger than 1.2 times the size of the silicon.
What is wire bond and flip-chip?
Flip-chip assembly and wire bonding are the principal methods for interconnecting ICs. Applications such as cellular telecom- munications and wearable portable consumer electronics often require the use of flip-chip packaging for its small form factor and, in some cases, high speed.
What is chip mounting?
Many electronic components, or chips, are mounted onto the printed circuit boards that are used in almost all of today’s electronic devices. During manufacture, machines called chip mounters are used to pick up and place such chips onto the printed circuit boards.
What is a flip chip assembly?
Flip-Chip Assembly. The open spaces between the flip chip surface and the board or substrate is filled with a non-conductive adhesive ‘underfill’ material to protect the bumps and the flip chip surface from moisture, contaminants, and other environmental hazards. More importantly,…
What is smart chip technology?
Smart chip technology is referring to the small, gold smart chip on a printer cartridge that communicates with your printer. You can find this type of chip on most cartridges and each one is unique to a specific printer series.
What are flip chip packages?
Flip Chip Packages. Flip Chip technology is used in a wide array of applications ranging from consumer products to highly sophisticated ASICs, PC chipsets, graphics and memory packages. Flip Chip interconnection provides the ultimate in miniaturization, reduced package parasitics and enables new paradigms in the area of power…
