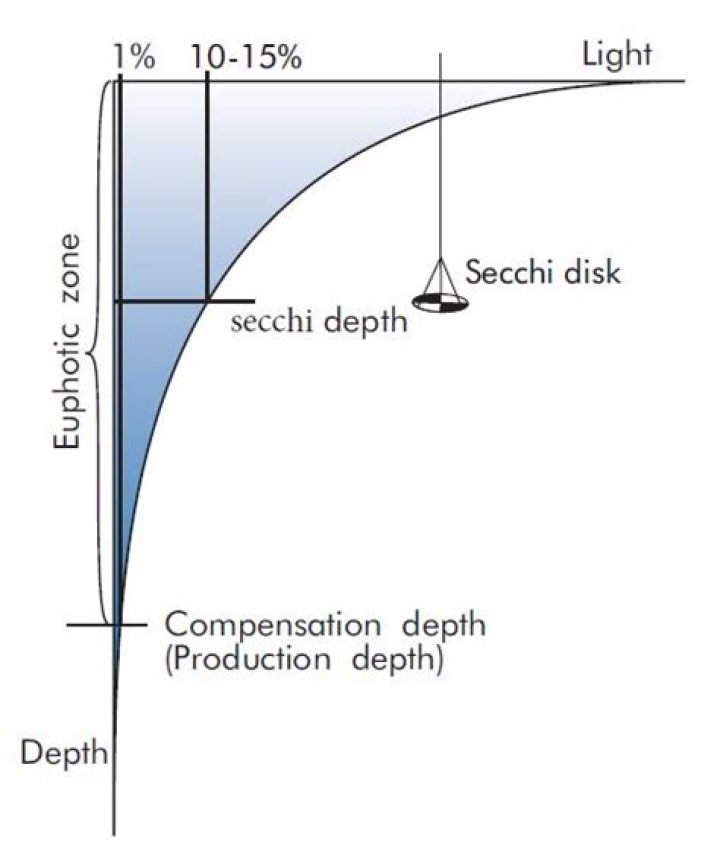

In this scenario, a Secchi disk can be used to gauge sunlight penetration. Without sunlight, it is hard for algae and submersed weeds to get established. We typically recommend the Secchi depth to be less than 18 inches in urban ponds.
How do you calculate turbidity of water using a Secchi disk?
A Secchi Disk is a simple way to measure turbidity. The Secchi disk is lowered into the water until it is no longer visible, and that depth is measured. Secchi depth values that are high indicate clearer water, and low Secchi depths indicate high turbidity.
What is turbidity meter?
Turbidity meters are used to quickly measure the turbidity (or cloudiness) of water, caused by suspended solid particles. Understanding how turbidity meters work can help in achieving more accurate results and ensuring the samples and meter are handled correctly.
How do you use turbidity discs?
Secchi Disk Protocol:
- Slowly lower the Secchi disk into the water on the shady side of the boat until it is no longer visible.
- Slowly raise the disk until it just becomes visible once again.
- Average the depths from steps 1 and 2 to get the Secchi depth.
- This may be repeated for a measurement of precision.
What is turbidity in water?
Turbidity is the measure of relative clarity of a liquid. It is an optical characteristic of water and is a measurement of the amount of light that is scattered by material in the water when a light is shined through the water sample. The higher the intensity of scattered light, the higher the turbidity.
How do you make a turbidity tube at home?
To make a turbidity tube: Cut a disk from wood, plastic, or cardboard the same size as the tube diameter. Divide the disk into fourths. Paint alternating quadrants black and white. Seal the disk by laminating or painting with varnish to make it waterproof.
How do you measure turbidity at home?
The best way to measure turbidity in a wide variety of samples is with a nephelometer, also known as a turbidity meter. Turbidity meters utilize a light and photo detector to measure light scatter, and read out in units of turbidity, such as nephelometric turbidity units (NTU) or formazin turbidity units (FTU).
Why do we measure turbidity by depth and time?
Turbidity measurements can be used for water quality analysis in lakes and streams. Turbid waters inhibit light from penetrating deeply into water column and therefore negatively affect primary productivity and dissolved oxygen available to support other organisms.
What is the difference between water transparency and turbidity?
Transparency and Turbidity Turbidity and transparency (measured using Secchi Depth) are measures of how clear a water sample is. The murkier the water appears from these solids, the higher the measured turbidity and the lower the transparency. A greater Secchi Depth equals a greater transparency, or clearer water.
What is 1 NTU?
Symbol, NTU, or ntu. Water containing 1 milligram of finely divided silica per liter has a turbidity of 1 NTU. The NTU replaced the Jackson turbidity unit. The NTU is measured with an electronic instrument called a nephelometer. The water to be measured is placed in a standard container.
How is the Secchi disk used in measuring water clarity?
To measure water clarity, a Secchi tube is filled with water collected from a stream or river . Looking down into the tube, volunteers lower a weighted disk attached to a string until the disk disappears. The distance at which the disk disappears is the water clarity reading, which is recorded in centimeters.
How to make a Secchi disk turbidity tube manual?
How to Make a Secchi Disk Turbidity Tube Manual . 1. Purchase a fluorescent tube light cover from a hardware store. This is usually about an 8-foot long clear plastic tube with end caps. Make sure you have the end caps. 2. Cut a from a plastic container lid that fits inside the end cap. 3. Divide the disk into quarters. Fill in alternating
How to use a Secchi disk?
Check to make sure that the Secchi disk is securely attached to the measured line.
How does a Secchi disk work?
A secchi disc is used to measure the turbidity of the water. Attached to a rope, the disc is lowered into the water from a research vessel or from the shore until it is no longer visible. This ‘Secchi depth’ is then used as a measure of the water turbidity.
